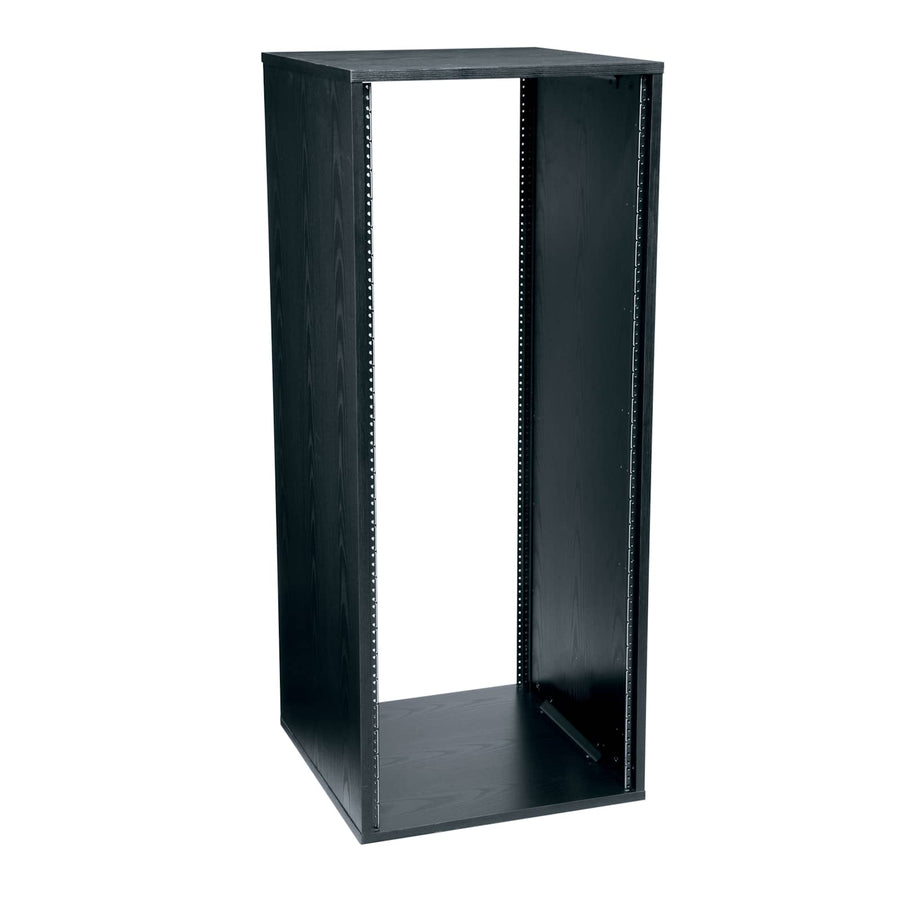

BRK Series Black Laminate Rack - BRK28-22
28 RU wooden knockdown rack with a 22" depth and 250 lbs capacity in a black wood grain finish
The Middle Atlantic BRK28-22 is a 28 RU wood rack designed for efficient logistics and on-site assembly. This knockdown rack is shipped flat to reduce shipping volume and can be easily assembled using the included hardware. It features a 22 in (55.9 cm) depth with a usable depth of 21.5 in (54.6 cm) and a total height of 50.63 in (128.6 cm). The 250 lbs (113.4 kg) weight capacity supports substantial equipment loads within its 49 in (124.5 cm) usable height. For mounting, it utilizes 10-32 threaded front and rear rackrails. This unit is TAA compliant and finished in a black wood grain. The rack is suitable for environments requiring professional aesthetic integration with a durable wooden construction.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 50.63 in (128.6 cm) |
| Rack Units | 28 RU |
| Shipping Weight | 70 lbs (31.8 kg) |
| Usable Depth | 21.5 in (54.6 cm) |
| Usable Height | 49 in (124.5 cm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 20.7 in (52.6 cm) |
All other specifications 5
| Finish | Black Wood Grain |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| UPC | 656747099502 |
Resources
You'll need these with it
100 CFM Fan Panel, Anodized
QFP-2$252.90
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU Rack Vent Panel, Perforated with 64% Open Area
VT1$27.90
Rackmount Power, 8 Outlet, 15A, Basic Surge Protection
PD-815R-PL$234.00
100 CFM Fan Panel, Anodized & 220 - 240VAC
QFP-2-119$252.90
Lace Bar Round - 10 Pieces
LBP-1R$94.50
28 RU Rear Access Panel for BRK, MBRK,OBRK,RK Laminate Racks
RK-RAP28$437.40
100 CFM DC Fan Kit for BRK Series Racks
DCFANKIT-4$235.80
100 CFM DC Fan Kit for BRK Series Racks, 220 - 240VAC
IDCFANKIT-4$250.20
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
Questions about this part
Will the BRK28-22 fit my rackmount equipment?
Yes, this 28 RU rack is designed for standard 19-inch equipment. It features 10-32 threaded front and rear rackrails and provides a usable height of 49 in (124.5 cm).
What do I need to buy to complete the installation?
The rack is a knockdown design and includes the necessary hardware for assembly. For thermal management, you can add compatible accessories like the DC Fan Kit (DCFANKIT-4) or the 100 CFM Fan Panel (QFP-2).
Can I add power distribution to this rack?
Yes, you can integrate various power solutions, such as the PDT Low Profile Vertical Power Strip (PDT-1015C-NS) or the Rackmount Power 8 Outlet Surge Protection (PD-815R-PL).
What is the actual usable space inside the rack?
While the total height is 50.63 in (128.6 cm), the usable height is 49 in (124.5 cm). The total depth is 22 in (55.9 cm) with a usable depth of 21.5 in (54.6 cm).
Which documentation is available for submittals?
The BRK Series Instruction Sheet is available for assembly guidance, and CAD technical specification drawings are provided for integration planning.
