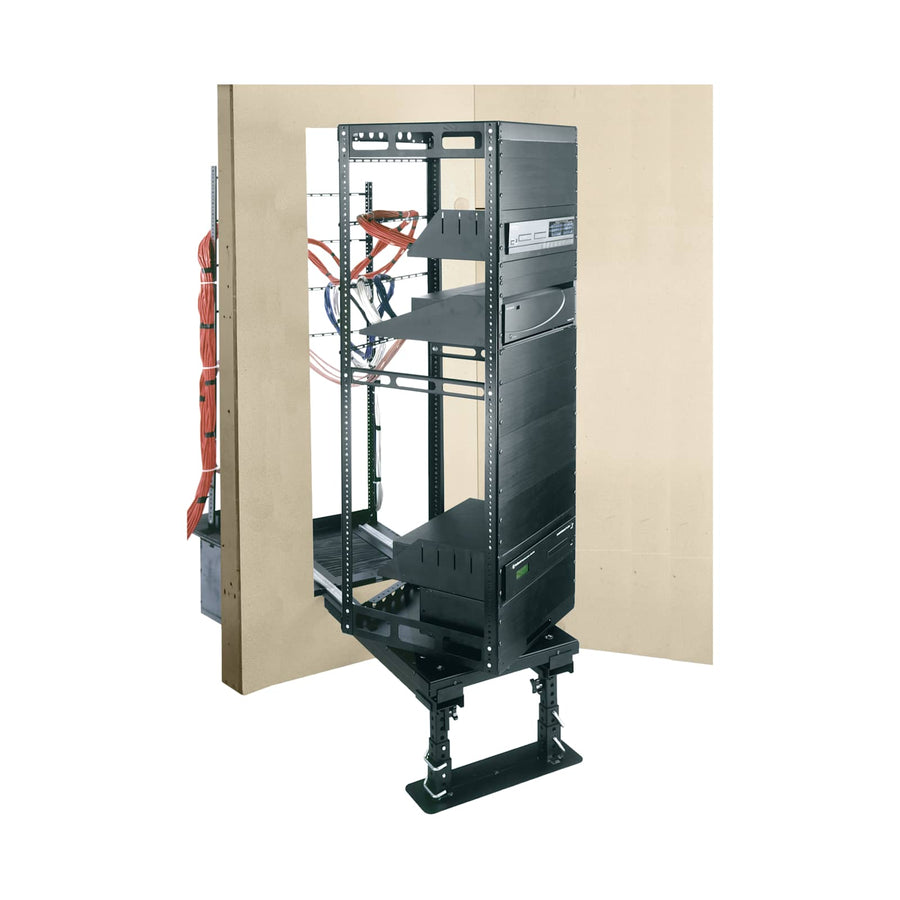

AXS Series Rack AX-SXR-40
40 RU in-wall rotating rack for flush installations, 450 lbs capacity, featuring a rotating design for improved service access
The AX-SXR-40 is a 40 RU in-wall slide-out rotating rack designed to provide enhanced accessibility for audio and video equipment installed flush into walls or cabinetry. While similar to the standard AXS Series, this AX-SXR model allows the entire rack to turn once pulled out, making it an ideal solution for servicing large systems in tight or cramped spaces. The frame features a unique interlocking corner joint for exceptional structural strength and easy assembly during installation. This TAA compliant unit is manufactured in the USA and can be integrated off-site to save time on the job. To facilitate a faster installation, the included service tracks feature a built-in level and can be raised to the bottom of the AXS to allow for smooth pulling. This 40 RU rack includes a built-in cable management system and standard fixed front and rear 10-32 threaded rackrails with numbered spaces for organized equipment mounting.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 20 in (50.8 cm) |
| Height | 74.69 in (189.7 cm) |
| Rack Units | 40 RU |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 70 in (177.8 cm) |
| Weight Capacity | 450 lbs (204.1 kg) |
| Width | 19.25 in (48.9 cm) |
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | YesYes |
| UPC | 656747056291 |
| Certifications | TAA |
Resources
You'll need these with it
Wide Unit Shelf System, 14 Inches Deep
WUSS14$122.40
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
3 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF3-CP6$211.50

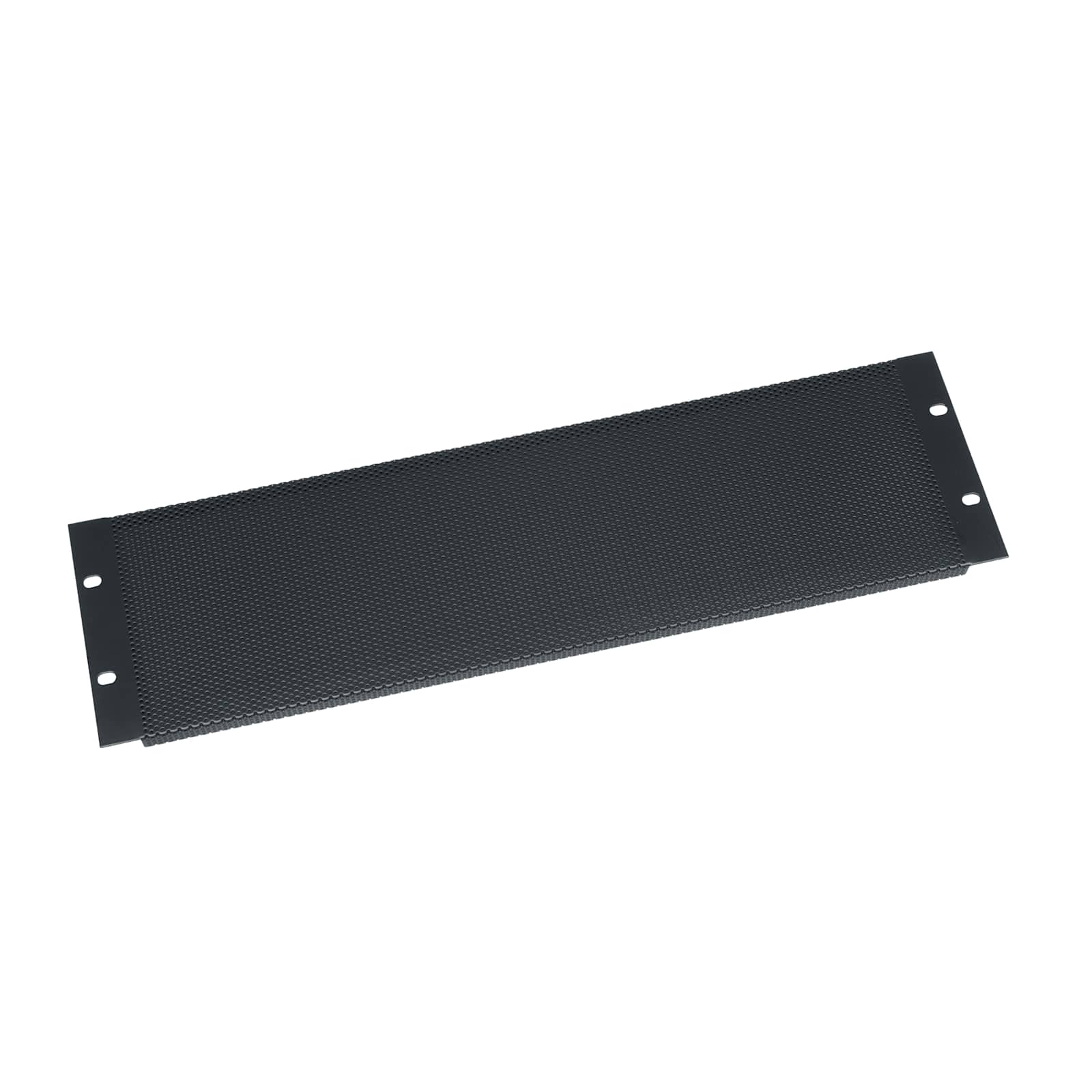

3 RU Rack Vent Panel, Perforated with 25% Open Area
VTF3$40.50
1 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-1$45.90

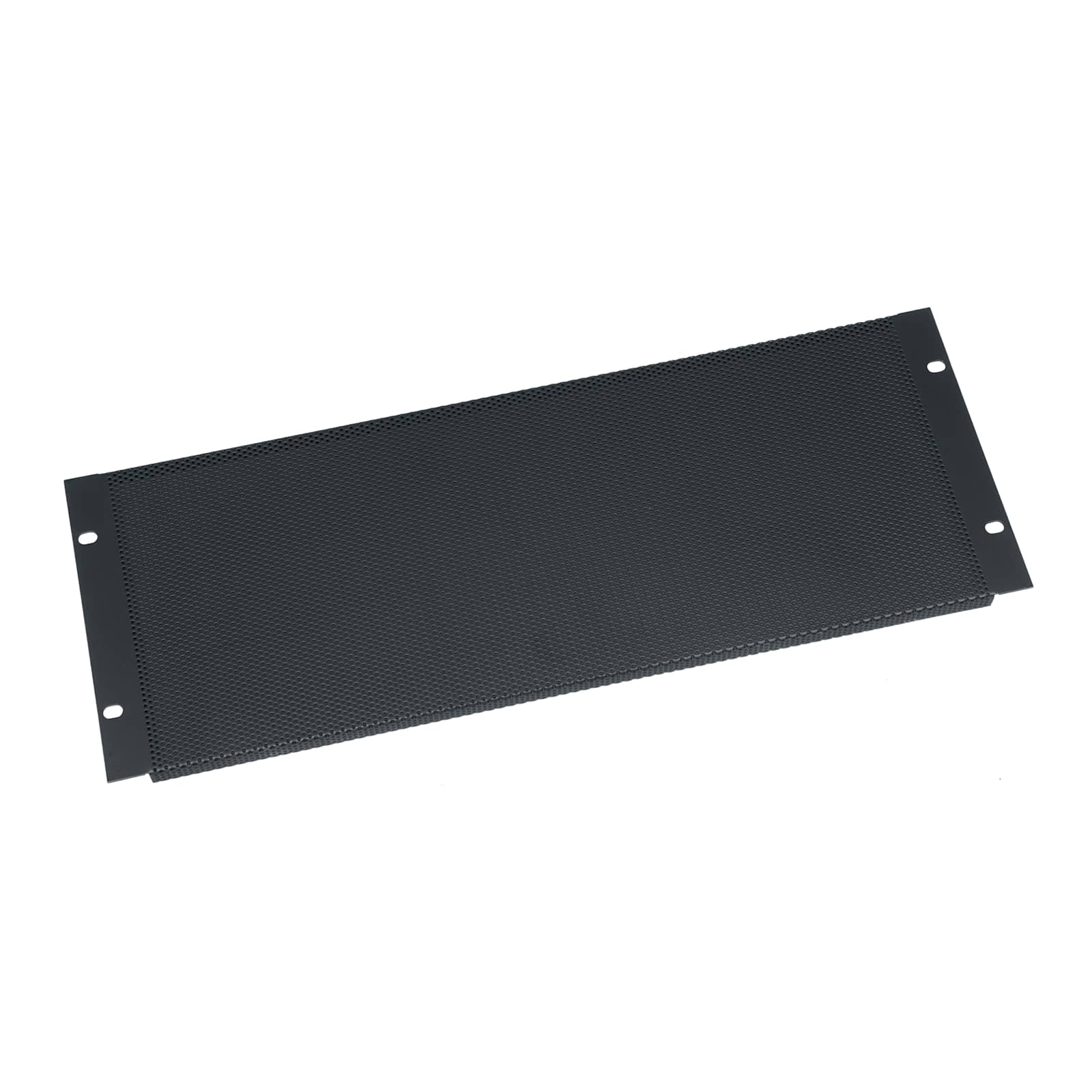

4 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF4-CP6$237.60

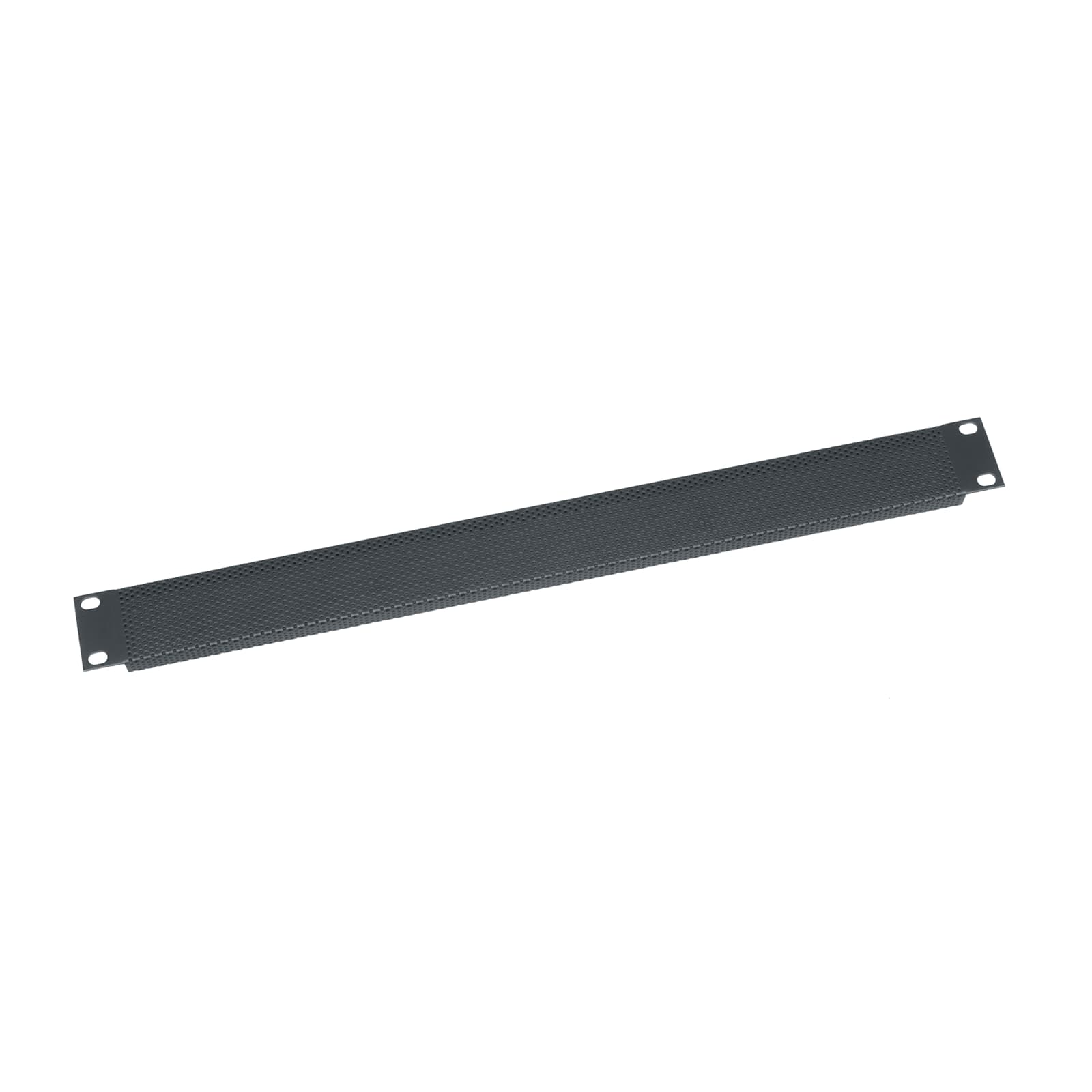

1 RU Rack Vent Panel, Perforated with 25% Open Area - 12 Piece Contractor Pack
VTF1-CP12$280.80
1 RU Rack Vent Panel, Perforated with 25% Open Area
VTF1$27.90
Questions about this part
How does the AX-SXR-40 differ from the standard AXS Series?
The AX-SXR-40 features a rotating capability once pulled out, allowing installers to turn the rack to access equipment in cramped installation environments.
What are the dimensions and load capacity of this rack?
The AX-SXR-40 is 74.69" (189.7 cm) in height, 19.25" (48.9 cm) in width, and 20" (50.8 cm) in depth, with a total weight capacity of 450 lbs (204.1 kg).
What accessories are required for installation?
Service tracks and stands are sold separately and must be ordered to complete the assembly.
Is this product TAA compliant and where is it made?
Yes, the AX-SXR-40 is TAA compliant and is manufactured in the USA.
What documentation is available for submittals?
Installers can access the AX-SXR System for Millwork & In-Wall A&E Specification Sheet or the CAD Technical Specification Drawings for submittal packages.
