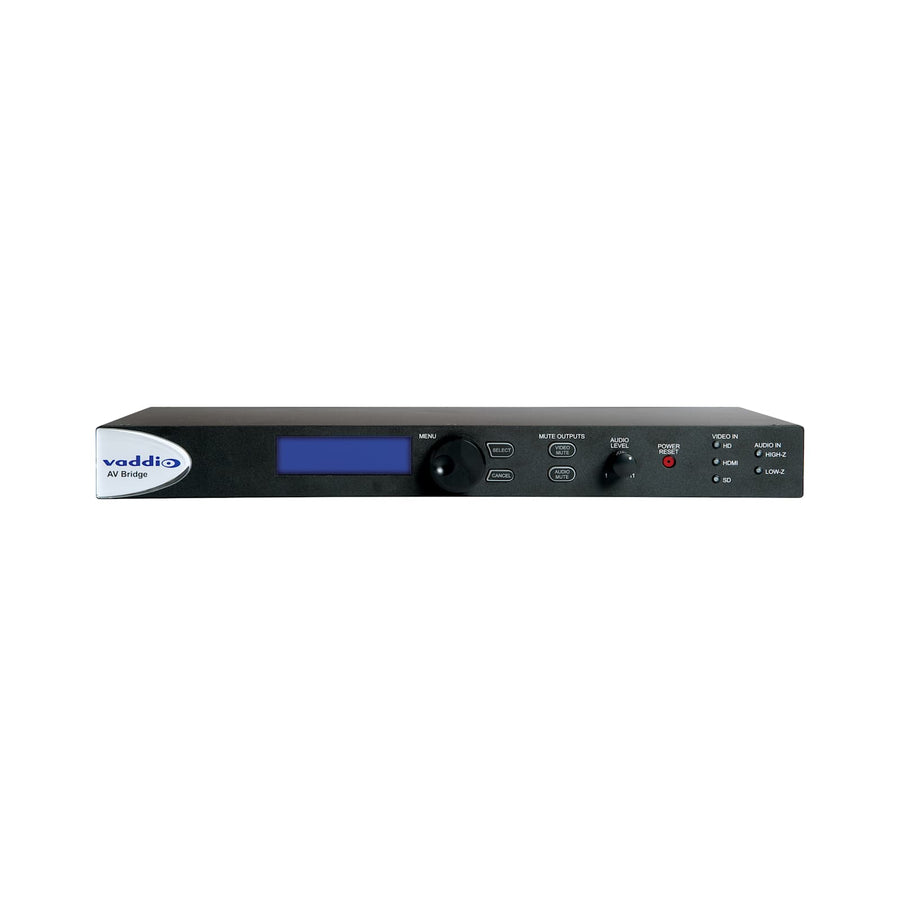

AV Bridge
AV to USB and IP encoder for integrating professional audio and video equipment into soft codecs and network streams
The Vaddio 999-8210-000 AV Bridge serves as a digital gateway for integrators looking to bridge traditional professional AV equipment with modern soft codecs. By converting legacy analog and digital signals into a digital format, this device allows for the seamless integration of audio and video into software applications such as Skype, Cisco Jabber, and Microsoft Lync. It functions as a UVC/UAC compliant USB 2.0 device, meaning no specialized drivers are required for most operating systems. This encoder supports switchable audio and video inputs, including HDMI, HD YPbPr, and Composite. It provides high-quality video output via USB 2.0 for direct PC connection or via an Ethernet network interface for IP streaming. When streaming via IP, it supports RTSP and HLS clients with H.264 encoding at up to 1080p/30. For USB output, it provides 720p/30 sources using MJPEG encoding and uncompressed PCM audio. The device is TAA compliant and can be managed through a built-in web-based user interface, RS232, or Telnet.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 7 in (17.8 cm) |
| Height | 1.72 in (4.4 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3.14 lbs (1.4 kg) |
| Shipping Dimensions | 22" x 13" x 7" (558.8 x 330.2 x 177.8 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Width | 18.93 in (48.1 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 17
| Bridged Signal | Audio and Video |
| Browser-based User Interface for Remote Control | Built-in |
| Color | Black |
| Compatible With | OtherVaddio |
| Control Method | RS232TelnetWeb UI |
| Input Ports | CompositeHD YPbPrHDMI |
| OneLINK Compatibility | No |
| Output Ports | USB 2.0 |
| Power Cord | US Cord |
| Power Supply | 18VDC2.75A |
| Power Type | Local Power |
| Quick-Connect Compatibility | QCCUQDVI |
| Special Features | Audio IOIP Streaming |
| TAA Compliant | Yes |
| UPC | 840077501563 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
AV Bridge CONFERENCE
999-8215-000$3,330.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
AV Bridge Mini Audio/Video Encoder
999-8240-000$2,191.50
USB 2.0 Active Extension Cable
440-1005-020$118.80
0.5ft (0.15m) USB-C® Male to USB-A Male Cable - USB 3.2 Gen 1 (5Gbps)
C2G28874$12.99
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
8 PoE+ | 2 RJ45 | 2 SFP Rear-Facing Ports - 1Gb L2/L3 Managed Switch, US Power Cord
SW-505-8P-R$657.00
1 RU Mounting Rackshelf
UTR1$58.50
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
Questions about this part
What video and audio inputs are supported by the AV Bridge?
The 999-8210-000 supports switchable HDMI, HD YPbPr, and Composite video inputs, alongside switchable balanced or unbalanced audio inputs.
Can I stream the video feed over a network?
Yes, the AV Bridge includes an Ethernet network interface that supports H.264 IP streaming for RTSP and HLS streaming clients at up to 1080p/30.
Does this device require special drivers for PC use?
No, the device uses UVC/UAC USB standards, allowing it to work with any operating system that supports USB 2.0 devices without installing special drivers.
How do I control the AV Bridge remotely?
You can manage the device through a built-in web-based user interface, via RS232, or through Telnet for remote control.
What is the difference between USB and IP output modes?
The USB 2.0 output provides 720p/30 sources using MJPEG encoding, while the IP output supports up to 1080p/30 using H.264 encoding; please note these cannot be used simultaneously.
