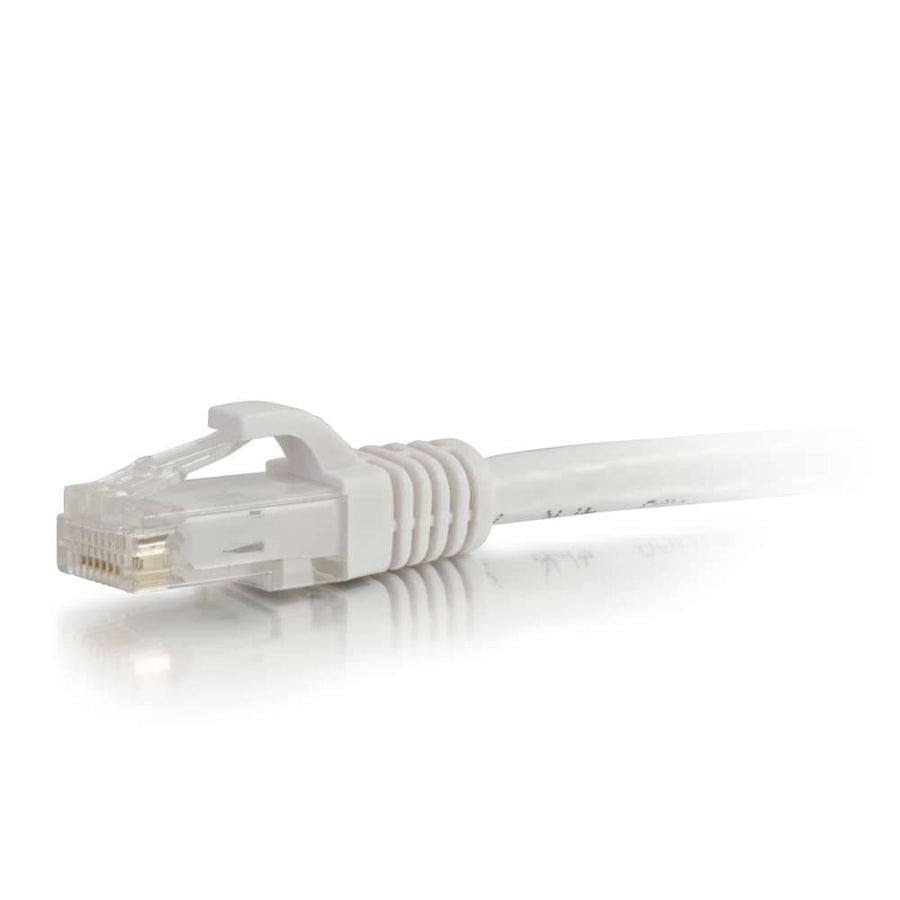

9ft (2.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - White
9ft (2.7m) white Cat6 snagless patch cable, UTP unshielded design for high-bandwidth voice, data, or video distribution applications
The C2G CG04038 is a 9ft (2.7m) Cat6 snagless patch cable designed for high-bandwidth voice, data, or video distribution applications. This unshielded (UTP) Ethernet network cable is engineered to meet all Cat6 TIA/EIA standards, specifically helping to drastically reduce impedance and structural return loss (SRL). Each individual copper pair is bonded together to maintain consistent twist-spacing throughout the entire 2.7 m line up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. This cable features 24 AWG stranded copper conductors and uses a T568B wiring scheme. For ease of installation, the cable is equipped with snagless, booted RJ-45 male connectors that protect the clips from damage during plugging and unplugging. The 0.24 in (6.2 mm) diameter cable is finished with a white PVC jacket and hood material. This white SKU is part of a larger series available in up to 10 different colors and various lengths to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.27 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040385 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
Questions about this part
What is the maximum length available in this cable series?
While this specific SKU is 9 ft (2.7 m), the Cat6 Snagless Patch Cable series is available in lengths up to 150 ft.
Is this cable compatible with Cat6 patch panels?
Yes, this cable can be used with various hardware including the C2G 48-Port Rack Mount Patch Panel (48845CC6) or the 24-Port Rack Mount Patch Panel (24845CC6).
What type of termination scheme does this cable use?
The CG04038 uses the T568B wiring scheme for its RJ-45 male connectors.
Does this cable include snagless protection?
Yes, it features a snagless, booted design that protects the connector clips from being broken when plugging or unplugging.
What certifications does this cable carry?
This product is compliant with REACH, RoHS, NDAA 889, TSCA, CE, and Prop 65 standards.
