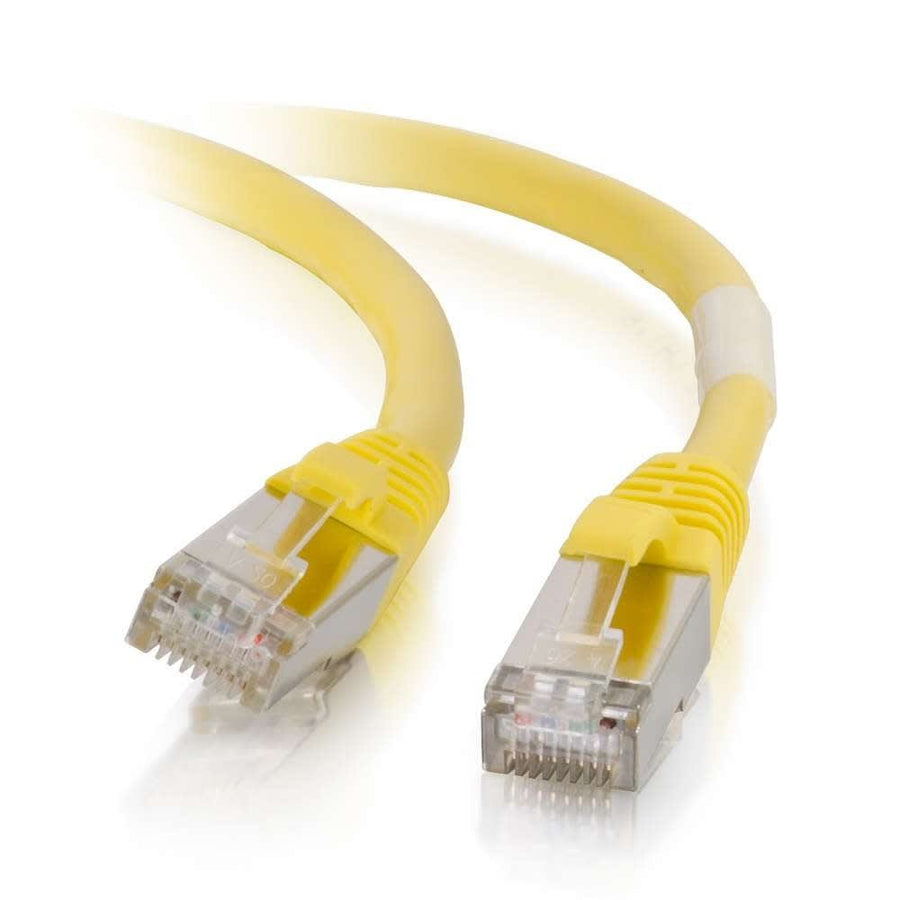

9ft (2.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Yellow
9ft Cat6 STP shielded patch cable in yellow with snagless boots and 26AWG stranded copper conductors
The C2G CG00867 is a 9ft (2.7m) Cat6 STP shielded Ethernet network patch cable designed to protect high-speed networks from noise and electromagnetic interference. This yellow cable is ideal for voice, data, and video distribution, effectively managing bandwidth-intensive applications by reducing impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The design incorporates bonded individual pairs to maintain twist-spacing throughout the line up to the termination point, which minimizes Near-End Crosstalk (NEXT) levels. Constructed with 26AWG bare copper stranded conductors and FM-PE insulation, this cable features PVC jacket material and PVC connector hoods. The snagless, booted RJ-45 male connectors ensure secure connections, and each cable includes an individual length label for easy identification during installation. This SKU is part of a larger series available in various lengths and colors, including the black CG00816 variant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | STP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008675 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
9ft (2.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00816$16.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6 cable work for high-bandwidth video and data applications?
Yes, the C2G CG00867 is designed for bandwidth-intensive applications and reduces both impedance and structural return loss (SRL) to maintain signal integrity.
What is the wiring configuration for this CG00867 patch cable?
This cable uses the T568B wiring scheme and features 26AWG stranded copper conductors.
Is this a snagless cable for difficult installs?
Yes, the CG00867 features snagless, booted RJ-45 male connectors designed to protect the clip from damage during installation.
How can I tell the length of these cables quickly?
Each cable includes an individual length label to ensure ease of use during your network installation.
What is the difference between the CG00867 and the CG00816?
The CG00867 is the yellow version of this 9ft Cat6 shielded patch cable, whereas the CG00816 is the black version.
