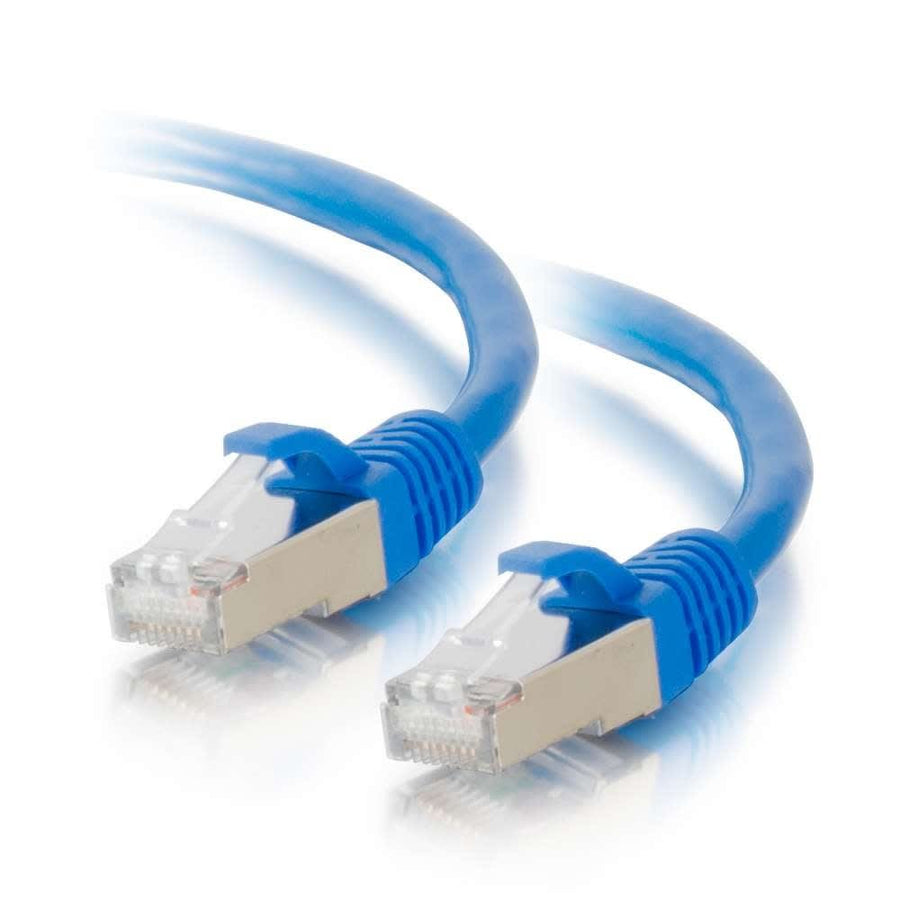

9ft (2.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Blue
9ft (2.7m) Blue Cat6 STP shielded patch cable with snagless boots and 26AWG stranded copper conductors
The C2G CG00799 is a 9ft (2.7m) Cat6 shielded STP Ethernet network patch cable designed for high-speed data, voice, and video distribution. This blue cable is constructed with 26AWG stranded bare copper conductors to handle bandwidth-intensive applications while significantly reducing impedance and structural return loss (SRL). To minimize Near-End Crosstalk (NEXT), each individual pair is bonded together, maintaining consistent twist-spacing through the termination point. The cable features a PVC jacket and PVC connector hoods with snagless, booted RJ-45 male connectors. This design is specifically engineered to protect network performance from electromagnetic interference (EMI) and external noise. Every cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. For ease of installation and organization, each individual cable includes a length label. This SKU belongs to a larger series of Cat6 Shielded Patch Cables available in various colors and lengths to accommodate specific network color-coding requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | STP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007999 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Will this CG00799 cable work for high-bandwidth video distribution?
Yes, the Cat6 shielded STP construction is designed to handle bandwidth-intensive applications and drastically reduces structural return loss (SRL).
What is the difference between this and the UTP versions in the C2G series?
This is a shielded (STP) version designed to protect against noise and electromagnetic interference, whereas the UTP versions lack the specialized shielding.
Is the CG00799 TAA compliant?
No, this specific SKU is not listed as TAA compliant in the manufacturer records.
What tools are required for installation?
As a pre-terminated patch cable with RJ-45 male connectors, no specialized installation tools are required for use.
Does this cable include any specific labeling for installers?
Yes, each individual cable features a length label to assist with identification and organization during installation.
