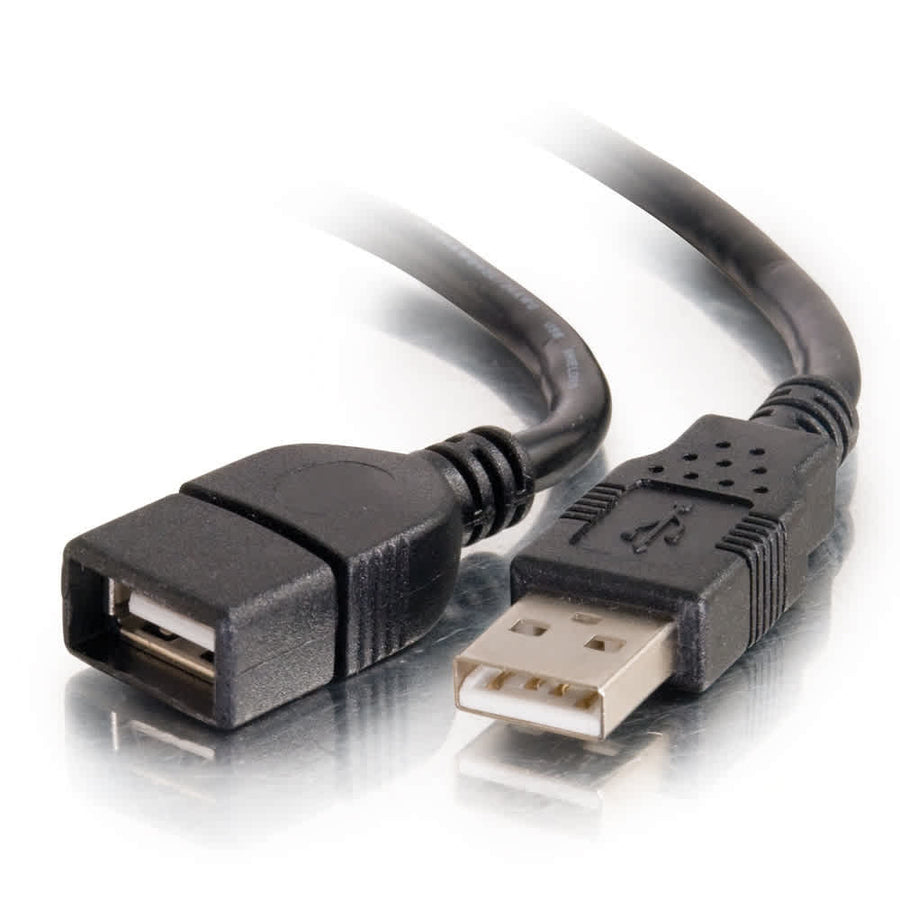

9.8ft (3m) USB 2.0 A Male to A Female Extension Cable - Black
9.8ft (3m) USB 2.0 A Male to A Female extension cable, 480 Mbps bidirectional data transfer, black PVC jacket
The C2G CG52108 is a 9.8 ft (3 m) USB 2.0 A Male to A Female extension cable designed to add reach to existing USB A/A connections in professional AV environments. This cable supports bidirectional signal transmission with a data transfer rate of 480 MBPS. To maintain signal integrity in complex installations, the cable features foil and braid shielding to suppress EMI/RFI, alongside twisted-pair construction to reduce crosstalk. The cable utilizes 24 AWG wire and a black PVC jacket, with a bend radius of 1.85 in (47 mm) and a cable diameter of 0.19 in (4.7 mm). It is rated for operation in temperatures ranging from -4° to 176°F (-20° to 80°C) and humidity levels between 20% and 80% RH (non-condensing). This specific SKU is not TAA compliant. For applications requiring total extended single lengths beyond 5 meters or high-powered devices, use the #39978 5m USB A Male to A Female Active Extension Cable instead.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 9.8 ft (3 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
All other specifications 18
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 104 Fahrenheit (40 Celsius) |
| Storage Temperature Min | 32 Fahrenheit (0 Celsius) |
| Wire Gauge | 24 |
| Cable Type | ExtensionUSB |
| Color | Black |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB-A Female(1) USB-A Female |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120521082 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Questions about this part
What is the maximum data transfer rate for the CG52108?
The CG52108 supports USB 2.0 data transfer rates up to 480 MBPS.
Can I use this cable for a total run longer than 5 meters?
No, this cable is not for use beyond a total extended single length of 5 meters. For longer runs or high-powered devices, use the #39978 5m Active Extension Cable.
Is the CG52108 TAA compliant for government contracts?
No, this specific SKU is not TAA compliant, though C2G offers TAA-compliant options for regulated environments.
What are the environmental operating requirements for this cable?
It is rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C) and a non-condensing humidity range of 20% to 80% RH.
What shielding does this USB extension cable use?
The cable features both foil and braid shielding to suppress EMI/RFI and maintain signal integrity.
