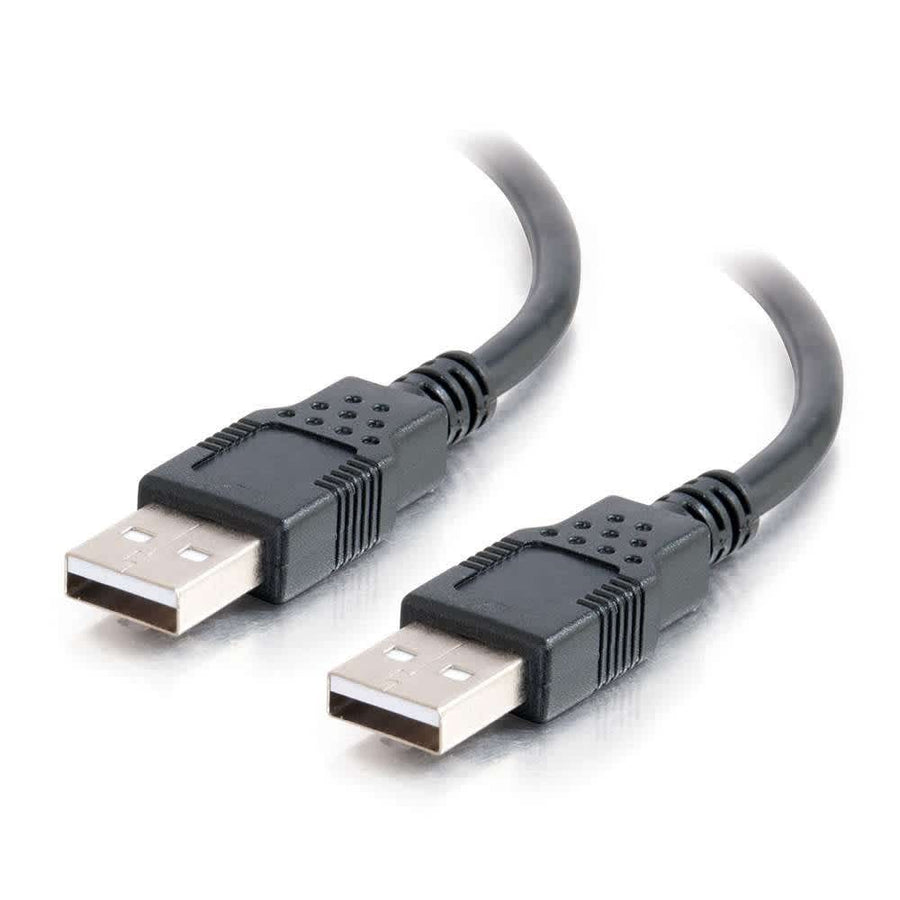

3.3ft (1m) USB 2.0 A Male to A Male Cable - Black
USB 2.0 A Male to A Male cable, 3.3 ft (1 m) length, 480 Mbps data transfer rate
The C2G CG28105 is a 3.3 ft (1 m) USB 2.0 A Male to A Male cable designed to connect USB peripherals such as keyboards, mice, modems, and printers to a host device. This cable supports bidirectional signal transmission with a data transfer rate of up to 480 MBPS for high-speed USB 2.0 devices. It is backwards compatible with full-speed USB 1.1 (12 Mbps) and low-speed USB 1.0 (1.5 Mbps) equipment. The cable features a 0.19 in (4.7 mm) diameter with a 28 AWG wire gauge and a PVC jacket. To ensure error-free data transfer, the construction includes twisted pair wiring along with foil and braid shielding to reduce EMI/RFI interference and crosstalk. This cable is compatible with both PC and Mac systems and is rated for operation in temperatures ranging from -4° to 176°F (-20° to 80°C). Note that this cable is intended for peripheral connectivity and is not intended for connecting two computers together or connecting a USB hub between two computers, as doing so may cause irreparable damage to the hardware.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Amps | 100 mA |
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 3.3 ft (1 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.1 lbs (0.1 kg) |
All other specifications 19
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB-A Male(1) USB-A Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120281054 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Can I use the CG28105 to connect two computers together?
No, this cable is not intended to connect two computers together or to connect a USB hub between two computers; doing so may cause irreparable damage to the computers.
What is the maximum data transfer rate for this USB cable?
The CG28105 supports high-speed USB 2.0 devices at 480 Mbps, but it is also backwards compatible with USB 1.1 (12 Mbps) and USB 1.0 (1.5 Mbps).
What is the operating temperature range for the CG28105?
This cable is rated for an operating temperature range of -4° to 176°F (-20° to 80°C) and a storage temperature range of -4° to 176°F (-20° to 80°C).
What kind of shielding does this cable use to prevent interference?
The cable utilizes foil and braid shielding to reduce EMI/RFI interference and twisted pair construction to help reduce crosstalk.
Does the CG28105 work with Mac computers?
Yes, this USB 2.0 A Male to A Male cable is compatible with both PC and Mac systems.
