9.8ft (3m) USB 3.0 A Male to A Male Cable
9.8ft (3m) USB 3.0 A Male to A Male cable, 5 Gbps transfer rate, shielded PVC jacket

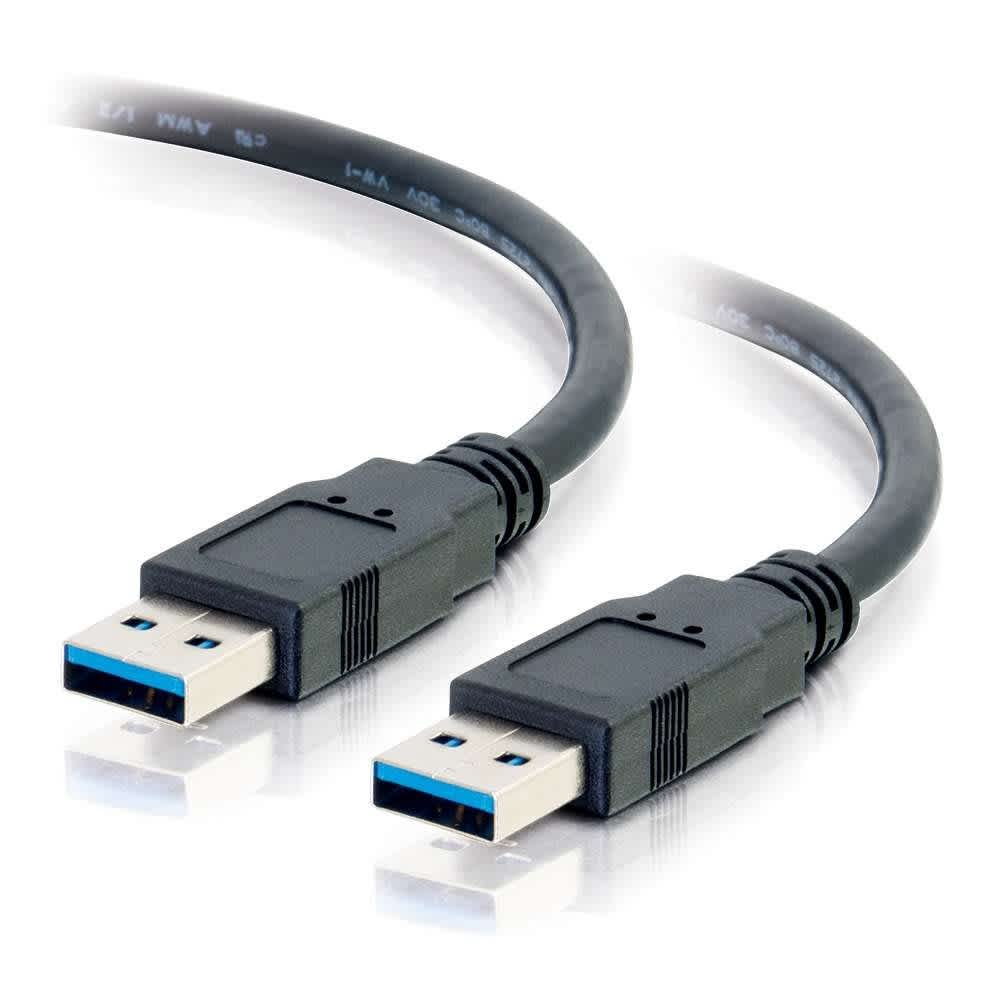

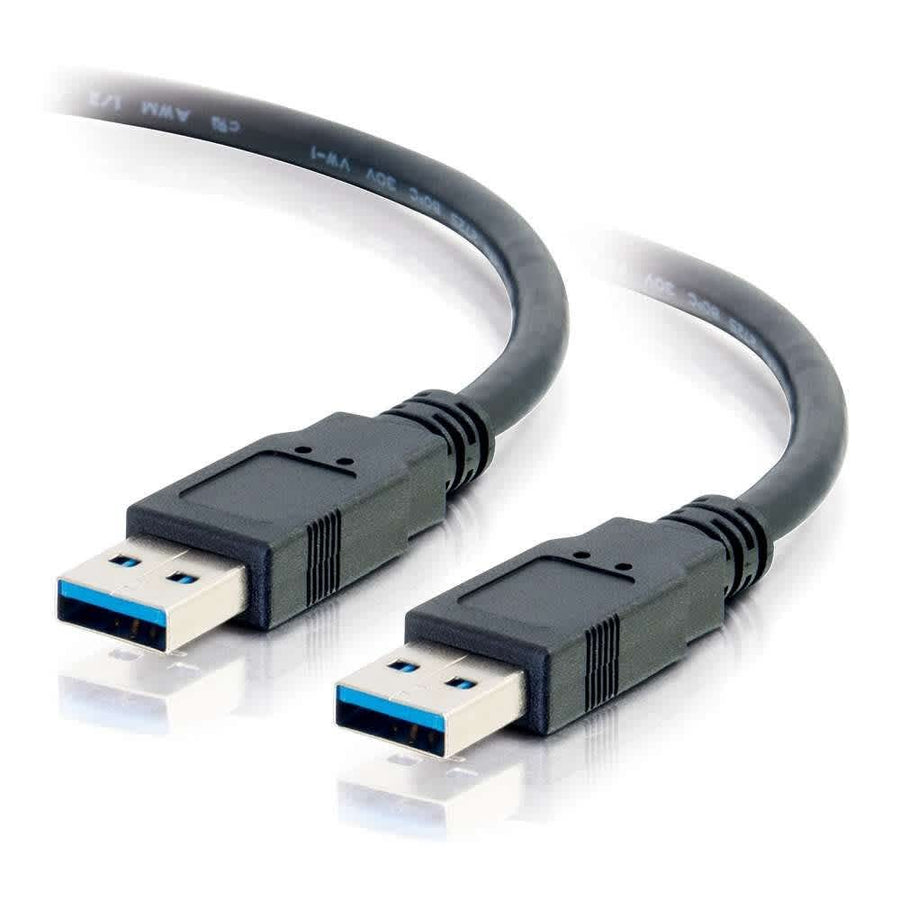

The CG54172 is a 9.8 ft (3 m) USB 3.0 A Male to A Male cable designed for high-speed connectivity between SuperSpeed USB peripherals and a host. It supports data transfer rates of up to 5 GBPS when used with compliant USB 3.0 hardware. This cable is built with twisted pair construction and features both foil and braid shielding to minimize EMI/RFI interference and reduce crosstalk, which is essential for maintaining error-free SuperSpeed data transfers. The cable features a black PVC jacket and a 0.24 in (6 mm) diameter. For ease of identification, the overmolded connectors are color-coded blue to indicate USB 3.0 compatibility. This cable is backwards compatible with high-speed USB 2.0 devices (480 Mbps) as well as USB 1.1. It is compatible with both PC and Mac systems and is rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C). Additionally, the CG54172 is compliant with NDAA 889, RoHS, REACH, TSCA, and Prop 65 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 900 mA |
| Bend Radius | 2.17 in (55 mm) |
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 9.8 ft (3 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.35 lbs (0.2 kg) |
All other specifications 18
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB 3.0 A Male(1) USB 3.0 A Male |
| Connector 2 | (1) USB 3.0 A Male(1) USB 3.0 A Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120541721 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 5 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
3.3ft (1m) USB 3.0 A Male to A Male Cable
CG54170$13.99
6.6ft (2m) USB 3.0 A Male to A Male Cable
CG54171$15.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
Questions about this part
Will this CG54172 cable work with my USB 2.0 devices?
Yes, this cable is fully backwards compatible with USB 2.0 devices, supporting speeds of 480 Mbps, as well as USB 1.1 hardware.
What is the maximum data transfer rate for the CG54172?
When connected to a USB 3.0 compliant host and device, this cable supports a bandwidth of up to 5 GBPS.
What other lengths are available in this series?
This cable is part of a series that includes the CG54170 (3.3ft/1m) and the CG54171 (6.6ft/2m) models.
Is the CG54172 suitable for professional installations in various environments?
The cable is designed to operate in temperatures from -4°F (-20°C) to 176°F (80°C) and maintains performance in humidity between 20% and 80% RH (non-condensing).
Does this cable come with a warranty?
The CG54172 is covered by a lifetime warranty from C2G.
