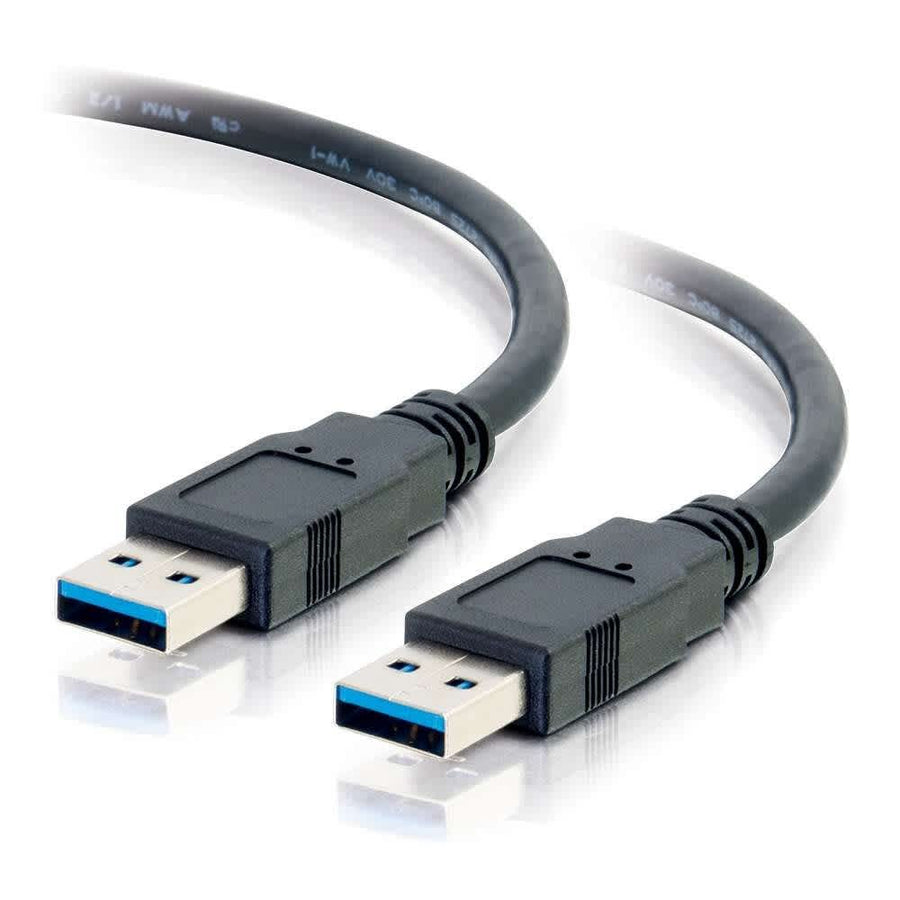

6.6ft (2m) USB 3.0 A Male to A Male Cable
6.6ft (2m) USB 3.0 A Male to A Male cable with 5 Gbps data transfer and blue-coded connectors
The C2G CG54171 is a 6.6ft (2m) USB 3.0 A Male to A Male cable designed for high-speed data transfer between SuperSpeed compatible hosts and peripherals. It supports data rates up to 5 Gbps, making it suitable for hardware such as hard drive enclosures, printers, modems, and cameras. The cable utilizes twisted pair construction and is shielded with foil and braid to reduce EMI/RFI interference and crosstalk, ensuring error-free transmission. This USB 3.0 technology is backwards compatible with USB 2.0 (480 Mbps) and USB 1.1 devices. The 0.24 in (6 mm) diameter PVC jacket protects the 28 AWG internal wiring. Connectors are overmolded and color-coded blue to facilitate easy identification of USB 3.0 compatibility. This cable is compatible with both PC and Mac systems and is rated for operation in temperatures ranging from -4°F to 176°F (-20°C to 80°C). The device is compliant with RoHS, REACH, TSCA, NDAA 889, and Prop 65 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 900 mA |
| Bend Radius | 2.17 in (55 mm) |
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6.6 ft (2 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.23 lbs (0.1 kg) |
All other specifications 18
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB 3.0 A Male(1) USB 3.0 A Male |
| Connector 2 | (1) USB 3.0 A Male(1) USB 3.0 A Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120541714 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 5 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
3.3ft (1m) USB 3.0 A Male to A Male Cable
CG54170$13.99
9.8ft (3m) USB 3.0 A Male to A Male Cable
CG54172$20.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
Will this USB 3.0 cable work with older USB 2.0 devices?
Yes, this cable is backwards compatible with high speed USB 2.0 devices at 480 Mbps as well as USB 1.1.
What is the maximum data transfer rate for the CG54171?
The CG54171 supports a SuperSpeed data transfer rate of up to 5 Gbps when connected to a USB 3.0 compliant host.
What is the length and diameter of this cable?
This cable is 6.6 ft (2 m) in length and features a 0.24 in (6 mm) diameter PVC jacket.
Is the CG54171 compatible with both Mac and PC?
Yes, this USB 3.0 A Male to A Male cable is compatible with both PC and Mac systems.
Are there different lengths available for this USB 3.0 cable?
Yes, this SKU is part of a series that includes a 3.3ft (1m) version (CG54170) and a 9.8ft (3m) version (CG54172).
