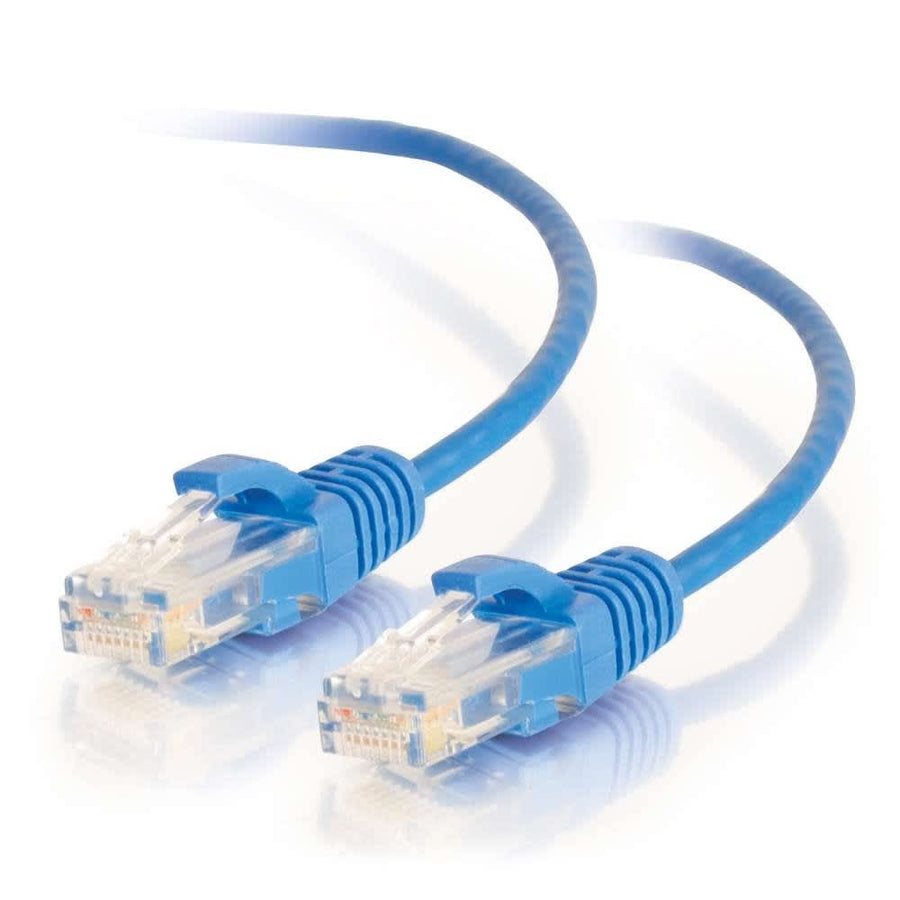

8ft (2.4m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Blue
8ft Cat6 slim unshielded UTP patch cable in blue, featuring 28 AWG conductors for high-density applications and improved airflow
The C2G CG01081 is an 8ft (2.4m) Cat6 Slim Snagless Unshielded (UTP) Network Patch Cable designed for high-density datacenter environments. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This smaller 0.15 in (3.8 mm) diameter increases airflow within crowded racks and allows for a significantly smaller bend radius, making it easier to route through cable management panels. This cable is built for fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution, supporting a bandwidth of 500 mHz. The molded snagless PVC boot provides strain relief and protects against snags during installation. For PoE/PoE+ applications, it is recommended to limit bundles to 40 cables to manage heat dissipation. This SKU is part of a larger series available in various lengths and colors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120010814 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
Questions about this part
Will this Cat6 cable work for PoE/PoE+ applications?
Yes, but for PoE/PoE+ applications, it is recommended to limit cable bundles to 40 units to manage the heat dissipation of the reduced 28 AWG diameter.
What is the maximum channel length when using this slim patch cable?
For a 96 Meter Channel, you can use up to 6 meters of slim network patch cables with 90 meters of horizontal cable; for a 93 Meter Channel, use up to 10 meters of these cables with 83 meters of horizontal cable.
What is the difference between this and standard Cat6 cables?
The CG01081 is a slim version with a 0.15 in (3.8 mm) diameter and a 28 AWG conductor, offering a 36% reduction in size for better airflow and smaller bend radii compared to standard cables.
What documents are available for technical submittals?
You can refer to the C2G Ethernet Patch Cable Matrix (PDF) or the Cat6 Slim Data Sheet (PDF) for detailed technical information.
What are the electrical performance specifications?
This cable features an impedance of 100Ω, a capacitance of 5600pf/100m, and a maximum propagation delay of 545ns/100m.
