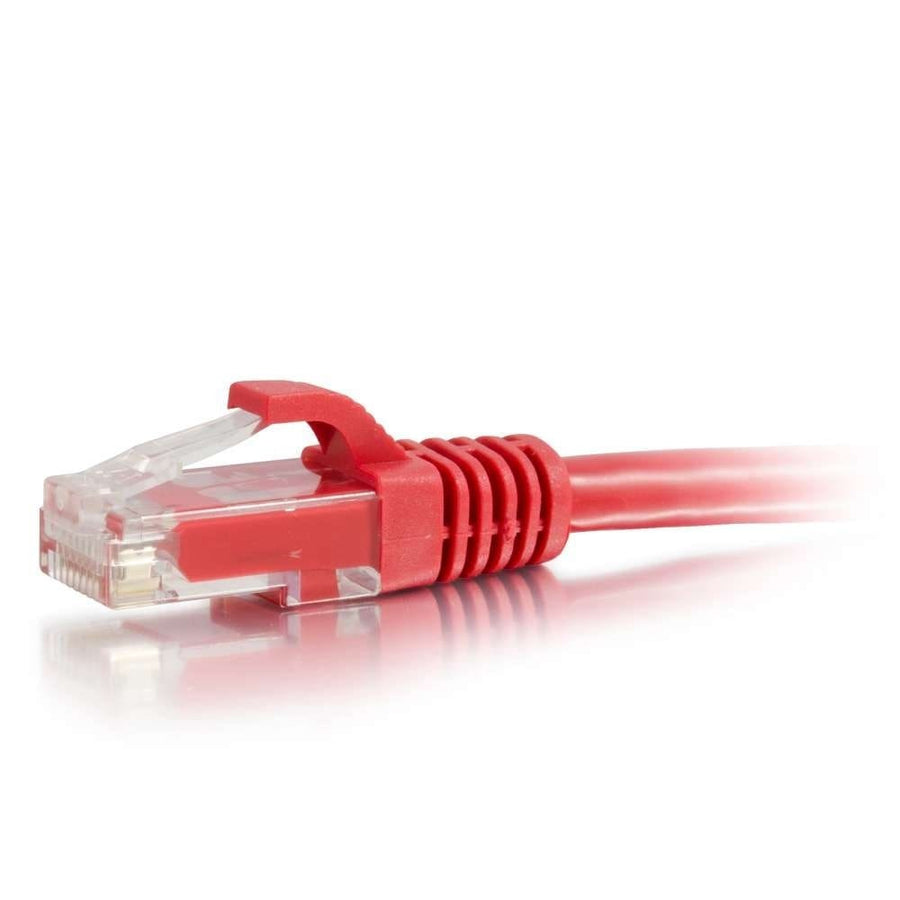

8ft (2.4m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Red
8ft (2.4m) Red Cat6 Snagless UTP Ethernet Patch Cable for high-bandwidth data and video distribution
The C2G CG04001 is an 8 ft (2.4 m) Cat6 Unshielded Twisted Pair (UTP) Ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable meets all TIA/EIA Cat6 standards, helping to reduce impedance and structural return loss (SRL) during high-speed transmission. Each individual pair is bonded together to maintain consistent twist-spacing up to the termination point, which works to minimize Near-End Crosstalk (NEXT) levels. The construction uses stranded copper conductors with a 24 AWG wire gauge and a 0.24 in (6.2 mm) cable diameter. For ease of installation, the cable features a snagless, booted connector design that protects the RJ-45 clips from damage during plugging and unplugging. The red PVC jacket allows for easy color-coding within complex network environments. This cable is part of the Cat6 Snagless Patch Cable Series, which is available in multiple lengths and colors to support diverse installation requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040019 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
Questions about this part
What is the maximum length available for the C2G Cat6 Snagless series?
While this specific SKU is 8 ft (2.4 m), the series is available in lengths up to 150 ft.
Will this cable work for Gigabit Ethernet networks?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit networks requiring high bandwidth.
Does the CG04001 require any additional tools for installation?
This is a pre-terminated patch cable with RJ-45 male connectors, requiring no special installation tools for use.
What is the difference between the CG04001 and other colors in this series?
The CG04001 features a red jacket for color-coding; other colors in the series include black, blue, gray, green, orange, pink, and purple.
What type of shielding does this patch cable use?
The CG04001 is an unshielded (UTP) cable utilizing stranded copper conductors.
