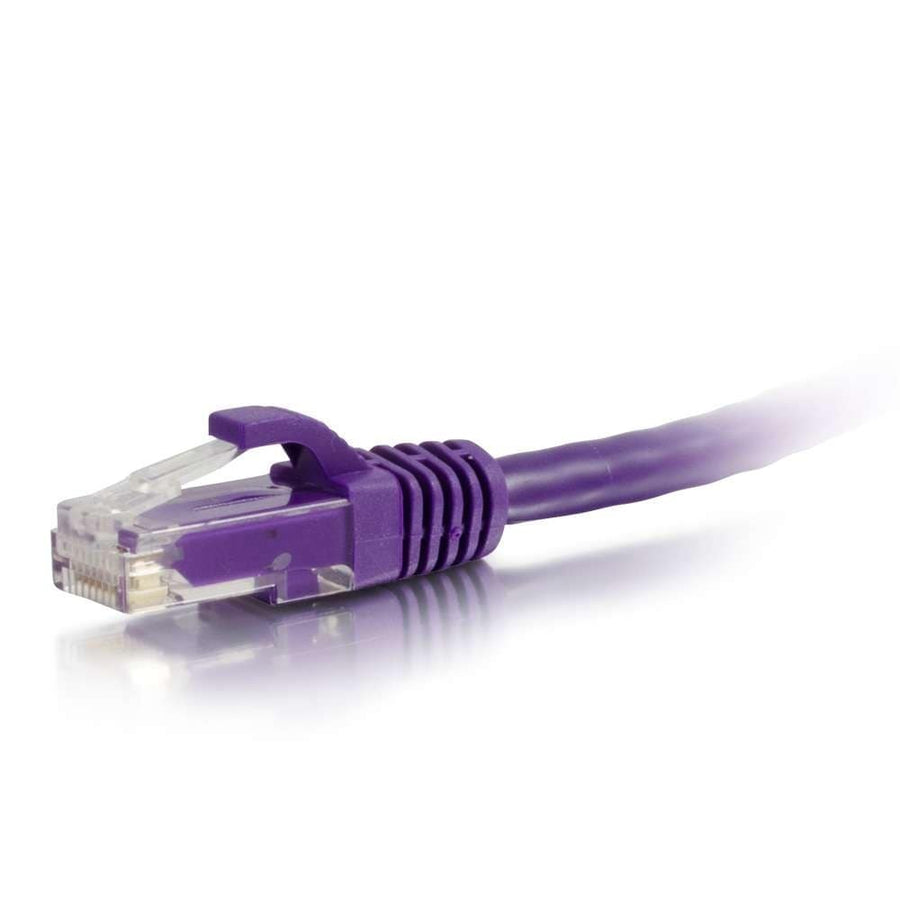

8ft (2.4m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
8ft purple Cat6 snagless unshielded UTP ethernet patch cable for high-bandwidth data, voice, and video distribution
The CG04028 is an 8ft (2.4m) Cat6 snagless unshielded UTP ethernet network patch cable designed for high-bandwidth environments. This cable is suitable for fast Ethernet and Gigabit computer networks that require intensive distribution for voice, data, or video applications. Built with high quality copper stranded conductors, this cable minimizes Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing throughout the entire line, up to the termination point. This construction helps drastically reduce both impedance and structural return loss (SRL) to meet all Cat6 TIA/EIA standards. The purple jacket is made of PVC and features a snagless, booted design that protects the RJ-45 clips from damage during installation and provides added strain relief. This unshielded twisted pair (UTP) cable features a 0.24 in (6.2 mm) diameter and follows the T568B wiring scheme.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.24 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040286 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
8ft (2.4m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03984$9.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Questions about this part
What is the length and color of this Cat6 cable?
This specific SKU, CG04028, is a purple cable that measures 8 ft (2.4 m) in length.
Is this cable suitable for high-bandwidth video applications?
Yes, this Cat6 cable is designed for Gigabit computer networks requiring bandwidth-intensive voice, data, or video distribution.
How does the snagless design benefit the installer?
The snagless, booted design protects the RJ-45 clips from being damaged or snagged during the installation and provides extra strain relief.
What is the wiring scheme for the CG04028?
The cable uses a T568B wiring scheme and features 24 AWG stranded copper conductors.
What other C2G products are compatible with this cable?
This cable can be used with several C2G items, including the CG03984 (the black 8ft version) and various network interface modules like the AC1068 or AC1013.
