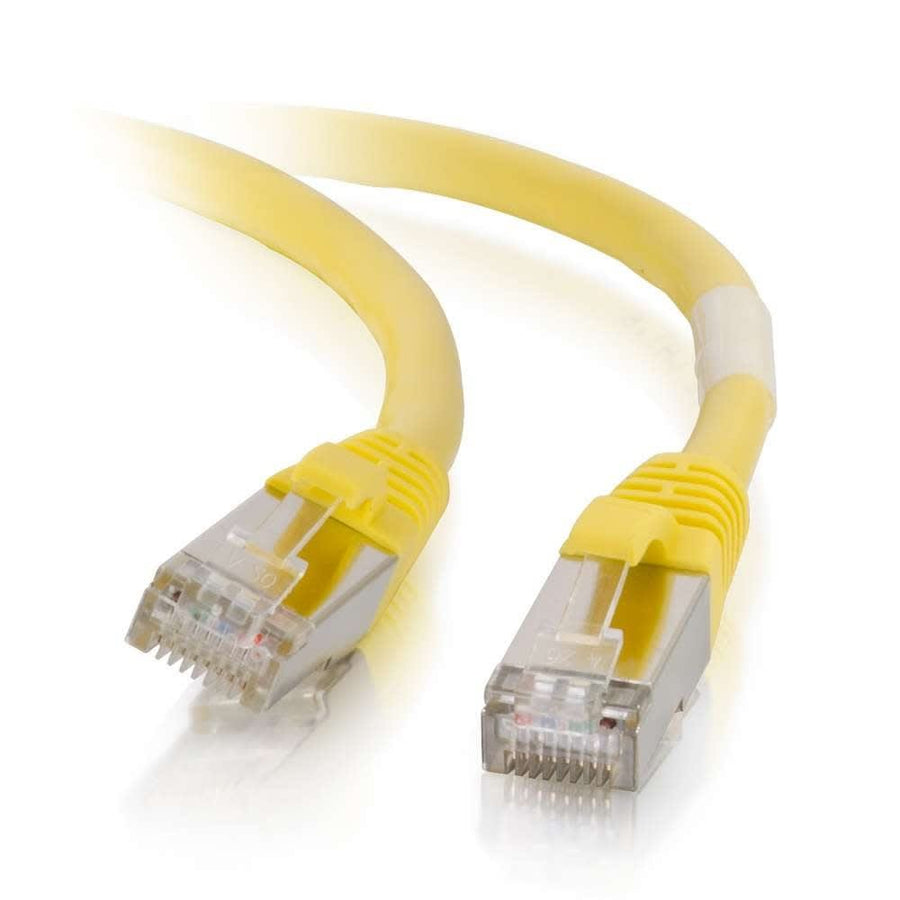

8ft (2.4m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Yellow
Yellow Cat6 shielded STP patch cable, 8ft (2.4m) length, featuring snagless boots and 26AWG stranded copper conductors
The C2G CG00866 is an 8ft (2.4m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable designed to protect high-speed networks from electromagnetic interference and noise. This yellow cable is specifically engineered for voice, data, and video distribution in environments where bandwidth-intensive applications require minimal impedance and reduced structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance for professional installations. Construction features include 26AWG (7/0.16) bare copper stranded conductors with FM-PE insulation, designed to maintain twist-spacing throughout the line up to the termination point. This design effectively minimizes Near-End Crosstalk (NEXT) levels. For ease of deployment, each cable includes an individual length label. The 0.24 in (6.2 mm) diameter jacket is made of PVC and is rated for standard non-rated applications with a temperature rating of up to 75°C. The connectors are housed in PVC snagless boots for strain relief.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | STP |
| Shipping Weight | 0.26 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008668 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8ft (2.4m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00815$14.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the wiring scheme for the CG00866 cable?
The CG00866 follows the T568B wiring scheme and uses 26AWG stranded copper conductors.
Is the C2G CG00866 suitable for high-interference environments?
Yes, this is a shielded (STP) Cat6 cable designed to protect networks from noise and electromagnetic interference.
Does this cable support high-bandwidth video and data applications?
Yes, it is engineered for bandwidth-intensive distribution and is tested to ANSI/TIA 568 C.2 Cat6 standards.
What are the physical dimensions of this patch cable?
This cable has an 8ft (2.4m) length and a 0.24 in (6.2 mm) cable diameter.
What is the temperature rating for the CG00866 jacket?
The PVC jacket is rated for temperatures up to 75°C.
