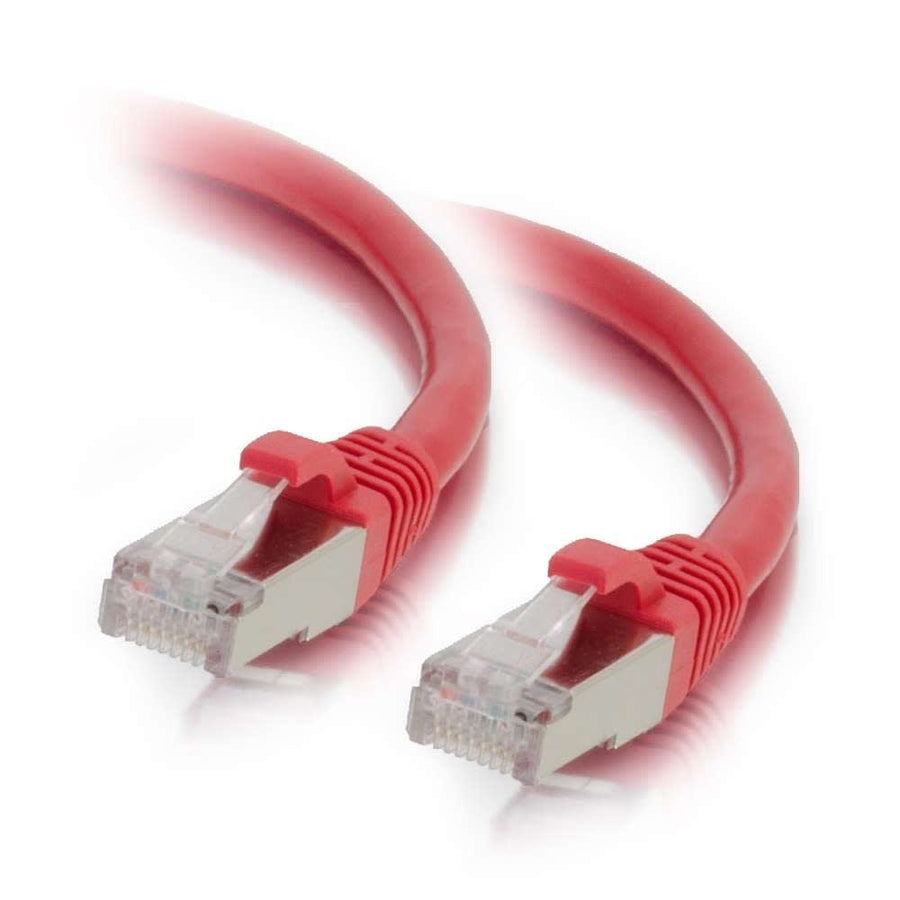

8ft (2.4m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Red
8ft Red Cat6 Shielded STP patch cable with snagless boots and 26AWG stranded copper conductors
The C2G CG00849 is an 8ft (2.4m) Cat6 shielded STP Ethernet network patch cable designed to protect high-speed networks from electromagnetic interference and noise. This red cable utilizes a stranded SSTP construction to handle bandwidth-intensive applications while drastically reducing impedance and structural return loss (SRL). Each cable features 26AWG bare copper conductors with FM-PE insulation and is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. To minimize Near-End Crosstalk (NEXT), each individual pair is bonded together to maintain consistent twist-spacing through to the termination point. The connectors are equipped with PVC snagless boots and are configured with a T568B wiring scheme. For ease of use in complex rack environments, each cable includes an individual length label. This specific red variant allows installers to easily color-code network segments within a larger installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | STP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008491 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8ft (2.4m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00815$14.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the wiring scheme for the CG00849?
This Cat6 patch cable follows the T568B wiring scheme for standard connectivity.
Will this cable help reduce crosstalk in my network?
Yes, the design minimizes Near-End Crosstalk (NEXT) by bonding individual pairs to maintain twist-spacing to the termination point.
Can I use this for high-bandwidth applications?
This cable is designed for bandwidth-intensive applications and is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
Is there a different color option for this cable?
Yes, this is the red version; the CG00815 is the 8ft (2.4m) equivalent in black.
What certifications does this Cat6 cable carry?
The CG00849 is listed with CE, REACH, and RoHS certifications.
