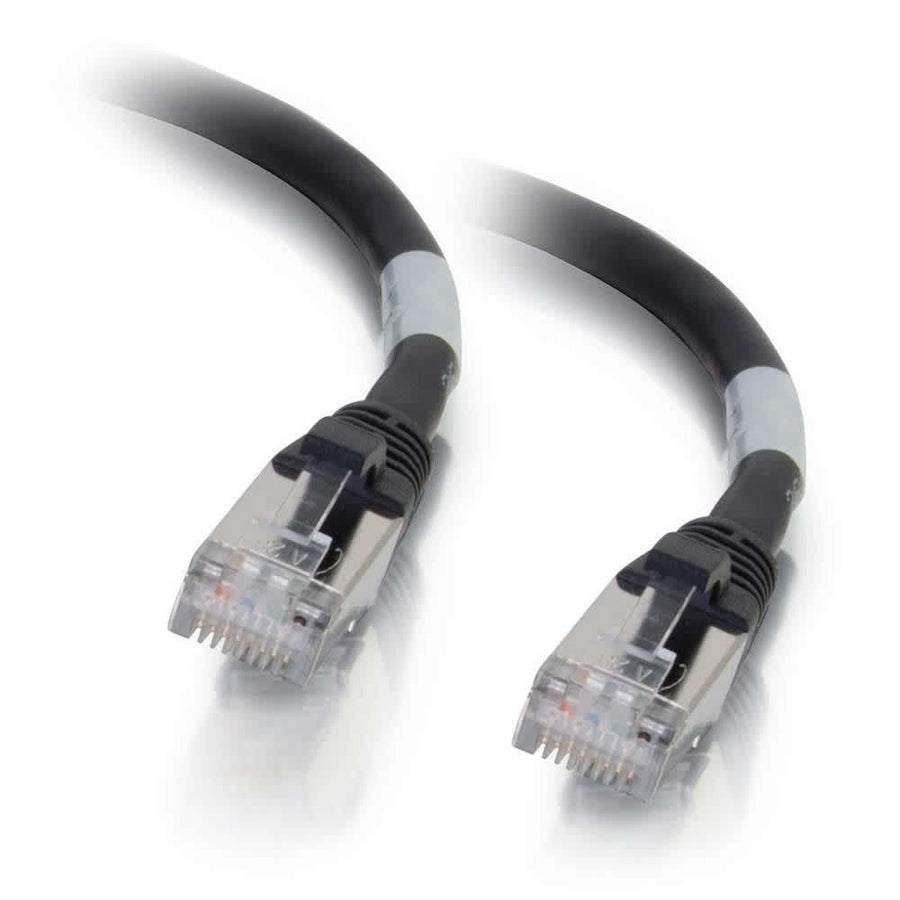

7ft (2.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
7 ft (2.1 m) Cat6a shielded STP patch cable, 26AWG stranded copper, with snagless boots for 10GBase-T high-speed connections
The C2G CG00712 is a 7 ft (2.1 m) Cat6a Snagless Shielded STP Ethernet network patch cable designed to support high-speed 10GBase-T ports and equipment. This cable is suitable for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. By utilizing a Shielded STP construction, it protects 10 Gigabit network connections from noise and electromagnetic interference (EMI). Each cable features stranded copper conductors with 26AWG wire gauge and FMPE (Foam Polyethylene) insulation. To maintain signal integrity, individual pairs are bonded together to preserve twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. This Cat6a patch cable is fully tested to meet ANSI/TIA 568 C.2 component requirements. For deployment efficiency, each cable includes an individual length label for easy identification during installation and cable management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.24 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007128 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Will this Cat6a cable work for 10Gbps networking?
Yes, the CG00712 is specifically designed for 10GBase-T ports and equipment to protect high-speed connections from electromagnetic interference.
What is the wiring scheme for the CG00712?
This Cat6a patch cable utilizes the 568B wiring scheme for all connections.
Is this cable suitable for high-bandwidth video or voice distribution?
Yes, this cable is designed to handle bandwidth-intensive applications by reducing impedance and structural return loss.
What is the operating temperature range for this patch cable?
The cable is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C).
Does this cable include protection for the connector tabs?
Yes, the CG00712 features a snagless, booted connector design to protect the RJ-45 tabs during installation and handling.
