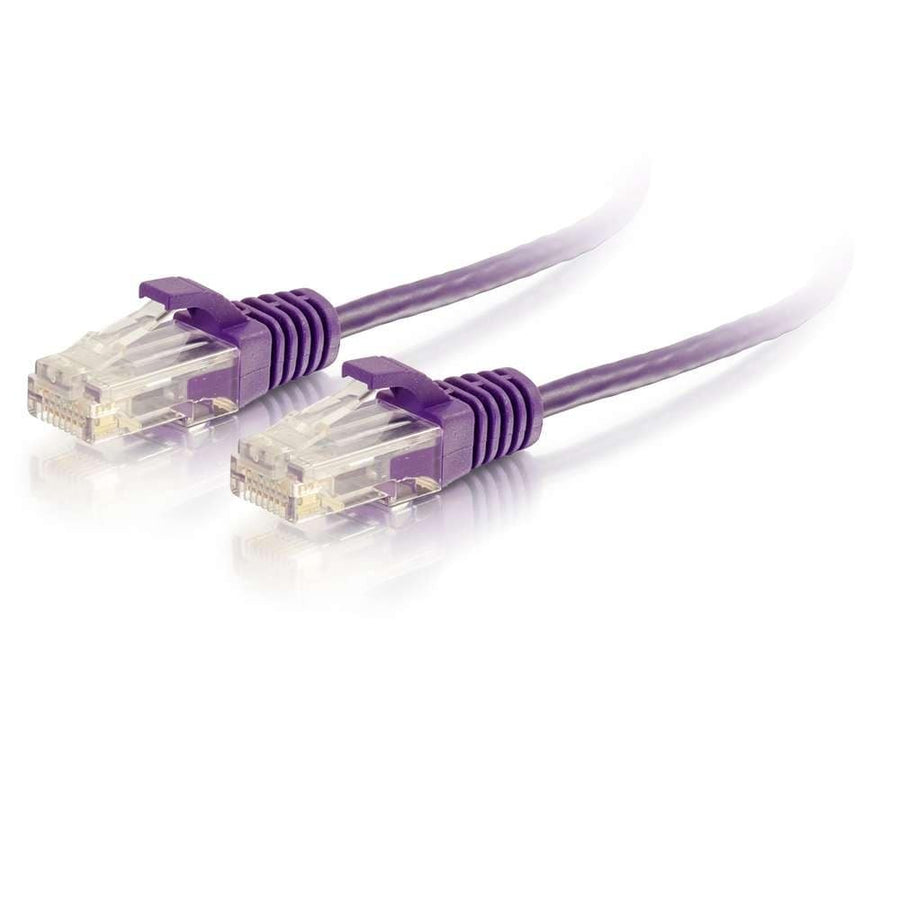

7ft (2.1m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Purple
7ft Cat6 Slim Unshielded UTP patch cable in purple with 28 AWG conductors for high-density environments
The C2G CG01183 is a 7ft (2.1m) Cat6 Slim Unshielded UTP Ethernet network patch cable in purple, specifically engineered for high-density datacenter applications. Utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables, resulting in a slim 0.15 in (3.8 mm) profile. This reduced diameter allows for increased airflow within crowded racks and enables a significantly smaller bend radius, making it easier to route through cable management panels. The snagless, booted RJ-45 male connectors provide strain relief and prevent snags during installation. Designed for bandwidth-intensive voice, data, or video distribution, this cable meets ANSI/TIA-568 standards and operates with a 500 mHz bandwidth. For PoE/PoE+ applications, it is recommended to limit bundles to 40 cables to manage heat dissipation caused by the reduced conductor diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120011835 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
Questions about this part
Can I use this CG01183 cable for PoE/PoE+ applications?
Yes, but you should limit bundles to 40 cables to account for heat dissipation in these reduced diameter 28 AWG cables.
What is the maximum channel length when using this slim patch cable?
For a 96 Meter Channel, you can use up to 6 meters of slim network patch cables; for a 93 Meter Channel, you can use up to 10 meters.
What do I need to purchase to complete my installation?
This is a standalone patch cable, but it is compatible with items like the Cat6 48-Port Rack Mount Patch Panel (48845CC6) or the 8 Port Cat6 Network Interface Module (AC1088).
Is the CG01183 suitable for high-density server racks?
Yes, the 0.15 in (3.8 mm) diameter and smaller bend radius are designed specifically to improve airflow and routing in dense datacenter environments.
What is the bandwidth capability of this Cat6 cable?
This cable supports a bandwidth of 500 mHz, making it suitable for high-bandwidth voice, data, and video distribution applications.
