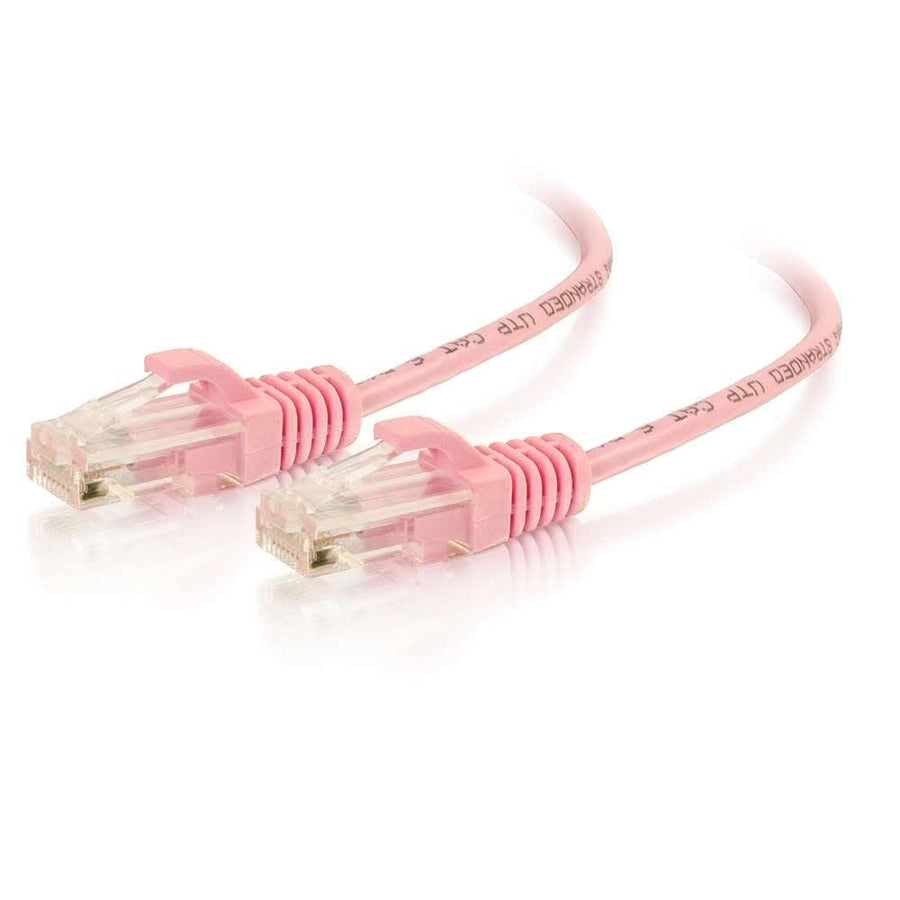

7ft (2.1m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Pink
Pink Cat6 slim patch cable, 7 ft (2.1 m) length, 0.15 in (3.8 mm) diameter, 28 AWG unshielded UTP
The CG01193 is a 7 ft (2.1 m) Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable in pink, specifically engineered for high-density datacenter applications. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 network patch cables. This 0.15 in (3.8 mm) cable diameter reduces the total surface area, which facilitates improved airflow within crowded server racks and cabinets. The slim profile and reduced bend radius allow for easier routing through tight cable management panels. These cables are designed for fast Ethernet networks supporting bandwidth-intensive voice, data, or video distribution. The molded snagless boots provide extra strain relief and prevent accidental snags during installation. For high-density deployments, users should limit PoE/PoE+ bundles to 40 cables to manage heat dissipation caused by the reduced diameter. This pink cable is compliant with ANSI/TIA-568 standards and carries CE, REACH, and RoHS certifications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120011934 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
Questions about this part
Is the CG01193 suitable for PoE or PoE+ applications?
Yes, but to manage heat dissipation in these reduced diameter cables, it is recommended to limit bundles to a maximum of 40 cables.
How does this slim cable affect airflow in a data center?
The 28 AWG conductors create a 36% reduction in diameter over standard Cat6 cables, providing a smaller surface area that allows for increased airflow.
What is the maximum channel length when using these slim patch cables?
For a 96 meter channel, you can use up to 6 meters of these slim patch cables. For a 93 meter channel, you can use up to 10 meters.
What tools are needed for installing the CG01193?
This is a pre-terminated patch cable that does not require specific installation tools, though the manufacturer notes standard installation items like a screwdriver or cable ties are typical for network setups.
Can I use this for high-density rack mounting?
Yes, this cable is designed for high-density applications and is compatible with components like the 48-Port Rack Mount Patch Panel (48845CC6).
