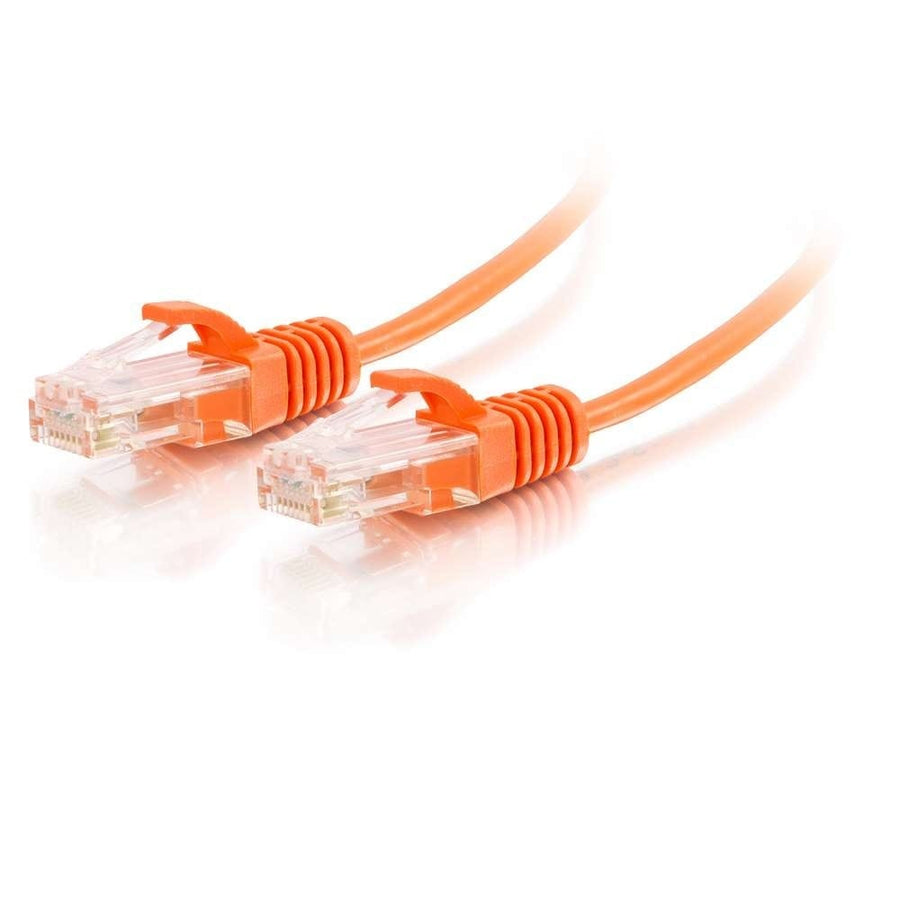

7ft (2.1m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Orange
7ft Orange Cat6 Slim Patch Cable with 28 AWG conductors for high-density airflow and reduced bend radius
The CG01178 is a 7 ft (2.1 m) Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable in orange. Designed specifically for high-density datacenter applications, this cable utilizes 28 AWG stranded copper conductors to achieve a 36% reduction in diameter compared to standard Cat6 patch cables. This slim profile minimizes the cable surface area, facilitating increased airflow within crowded racks and enclosures. The reduced diameter also enables a significantly smaller bend radius, allowing for easier routing through management panels and tight spaces. This cable is suitable for bandwidth-intensive voice, data, or video distribution applications requiring fast Ethernet performance. For POE/POE+ applications, installers should limit bundles to 40 cables to manage the heat dissipation associated with reduced diameter conductors. This SKU features a snagless, booted PVC connector to provide strain relief and prevent accidental snags during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120011781 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
Questions about this part
What is the maximum channel length using the CG01178 slim patch cable?
For a 96 Meter Channel, you can use up to 6 meters of slim patch cables with 90 meters of horizontal cable. For a 93 Meter Channel, you can use up to 10 meters of these cables with 83 meters of horizontal cable.
Is this cable suitable for PoE or PoE+ applications?
Yes, but it is recommended to limit bundles to 40 cables to account for heat dissipation in these reduced diameter 28 AWG cables.
What is the bandwidth and performance rating of this cable?
This Cat6 UTP cable provides a bandwidth of 500 mHz and is designed for bandwidth-intensive voice, data, or video distribution applications.
What tools are required for installation of the CG01178?
An installer will need the installation items listed in the product documentation, typically involving standard networking tools to facilitate connectivity.
Does this cable include a snagless boot?
Yes, the CG01178 features a molded, snagless boot made of PVC to prevent unwanted snags and provide strain relief.
