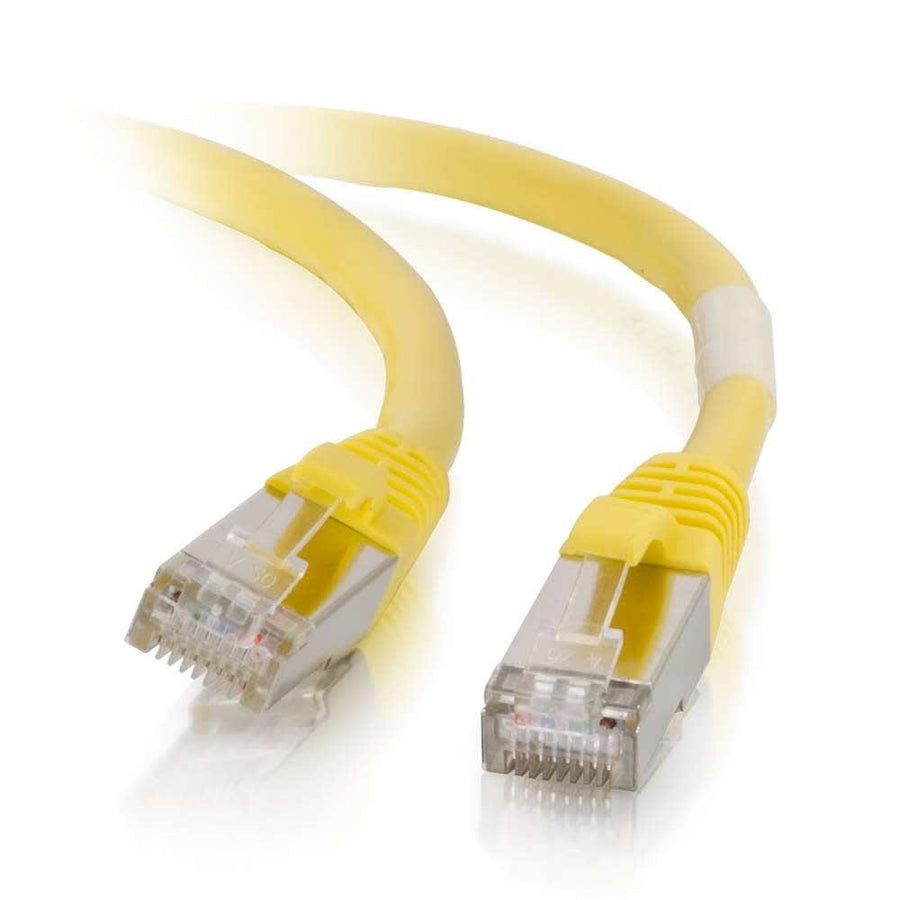

7ft (2.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Yellow
7ft Cat6 Shielded STP Ethernet patch cable in yellow with snagless boots and 26AWG stranded copper conductors
The C2G CG00865 is a 7ft (2.1m) Cat6 Shielded STP Ethernet network patch cable designed to protect high-speed network environments from electromagnetic interference and noise. This yellow cable uses stranded SSTP construction and 26AWG bare copper conductors to handle bandwidth-intensive voice, data, and video distribution applications. By bonding individual pairs together, the design helps maintain twist-spacing through the termination point to reduce impedance, structural return loss (SRL), and Near-End Crosstalk (NEXT). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The construction includes PVC jacket material and PVC connector hoods with a snagless, booted design to protect the RJ-45 male connectors. This SKU is part of a larger series of Cat6 Shielded Patch Cables, and for color-coding purposes, this version is finished in yellow. The cable is rated for temperatures up to 75°C and features an individual length label on each unit for easy identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.24 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008651 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
7ft (2.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00814$12.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Is the C2G CG00865 Cat6 certified?
Yes, this cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
What is the wiring scheme for this patch cable?
The CG00865 uses the T568B wiring scheme and features 26AWG stranded copper conductors.
What is the difference between this and the black version?
The CG00865 is the yellow color variant of the Cat6 Shielded Patch Cable series; the black version is SKU CG00814.
Does this cable have a snagless design?
Yes, it features a snagless, booted RJ-45 male connector design to prevent accidental disconnection and protect the jack.
What temperature rating does the cable jacket have?
The cable jacket is rated for temperatures up to 75°C.
