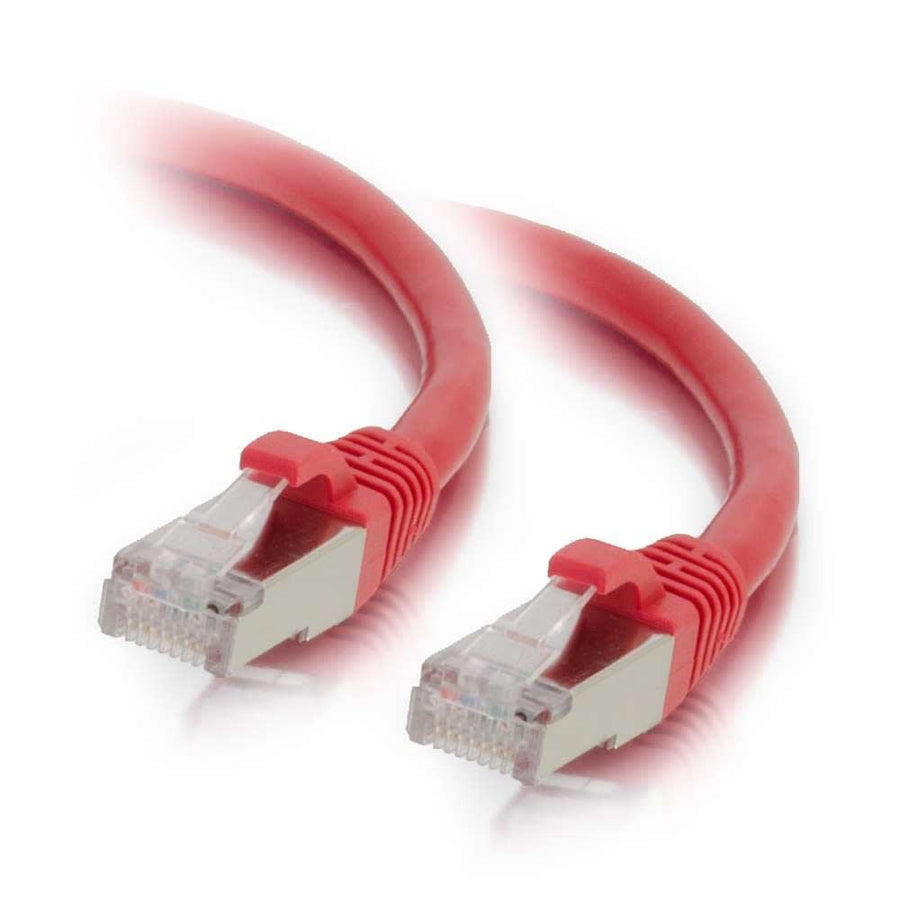

7ft (2.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Red
7ft Cat6 STP shielded patch cable in red, featuring snagless boots and 26AWG stranded copper conductors for high-bandwidth applications
The C2G CG00848 is a 7ft (2.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable in Red, engineered to protect high-speed networks from electromagnetic interference and noise. This SSTP cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, making it suitable for bandwidth-intensive voice, data, and video distribution. The construction utilizes 26AWG bare copper stranded conductors to maintain optimal performance and minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to preserve twist-spacing right up to the termination point, which helps reduce impedance and structural return loss (SRL). Designed with snagless, booted RJ-45 male connectors and PVC jacket material, this cable is ideal for color-coded installations. This specific Red SKU is part of a larger series of Cat6 Shielded Patch Cables, and it features an individual length label on each cable for efficient identification during deployment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008484 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
7ft (2.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00814$12.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6 cable work for high-bandwidth video and data distribution?
Yes, the CG00848 is designed for bandwidth-intensive applications, significantly reducing impedance and structural return loss (SRL) to protect against noise.
Is this cable suitable for environments with high electromagnetic interference?
Yes, the STP (Shielded Twisted Pair) design is specifically built to protect high-speed networks from noise and electromagnetic interference.
What is the wiring scheme for the CG00848?
The CG00848 follows the T568B wiring scheme and uses 26AWG stranded bare copper conductors.
How can I find a different color of this Cat6 shielded cable?
This red cable is part of a series; for example, the CG00814 is the 7ft (2.1m) version in Black.
What certifications does this patch cable carry?
This product is CE, REACH, and RoHS compliant and is rated for a temperature range of up to 75°C.
