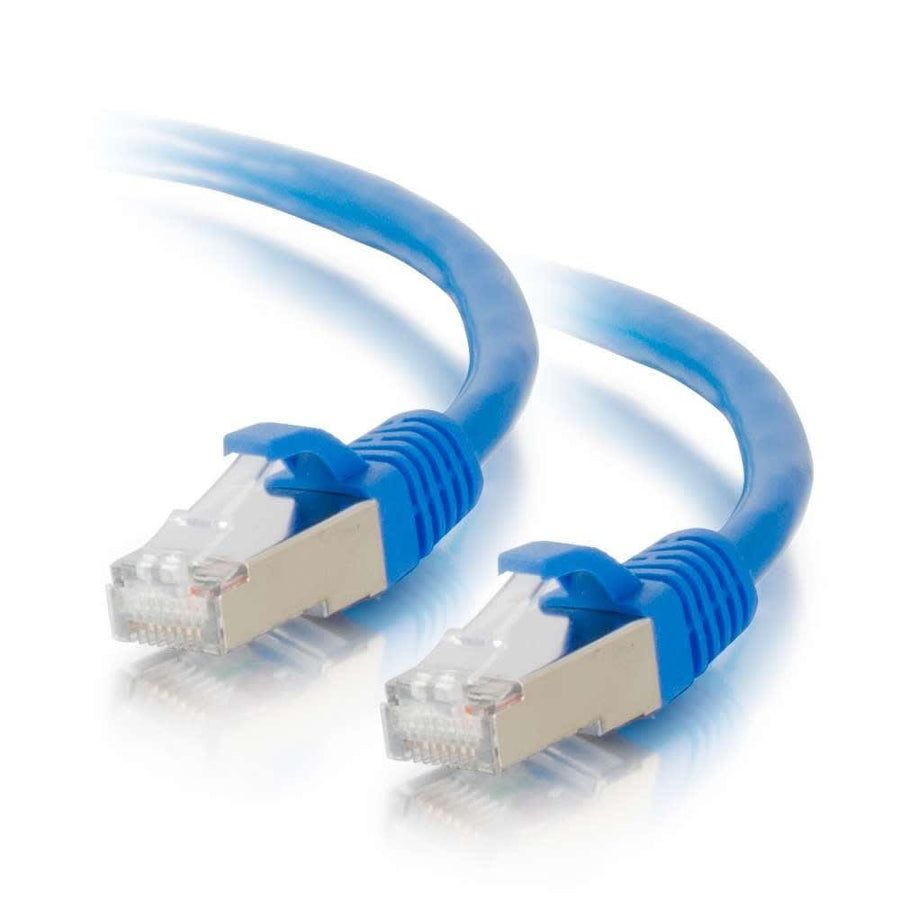

7ft (2.1m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Blue
Shielded Cat5e patch cable, 7 ft (2.1 m) length, blue color, designed for high-noise EMI/RFI environments
The C2G CG27251 is a 7 ft (2.1 m) Cat5e shielded patch cable designed to maintain network integrity in environments with high electromagnetic interference (EMI) or radio frequency interference (RFI). This F/UTP cable utilizes an overall cable foil shield and a drain wire to provide continuous protection against external noise. Each cable features 24 AWG stranded copper conductors and is terminated with shielded 50 micron gold-plated RJ45 male connectors. For added durability and strain relief during installation and handling, the connectors are equipped with snagless, booted PVC hoods. These cables are wired to the TSB 568B (AT+T 258A) standard. This blue cable is an ideal choice for color-coding network segments in high-interference zones. To achieve maximum end-to-end shielding and protection, this cable should be used in conjunction with a Cat5e shielded patch panel and Cat5e shielded keystone jacks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120272519 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
Will this cable work in high-interference environments?
Yes, the CG27251 is an STP shielded Cat5e cable designed specifically for noisy environments prone to EMI/RFI interference.
What do I need to ensure full end-to-end shielding?
For complete protection, use this cable with a Cat5e shielded patch panel and Cat5e shielded keystone jacks.
What is the wiring standard for the CG27251?
This patch cable is wired to the TSB 568B (AT+T 258A) standard.
How long is this specific blue patch cable?
This SKU is a 7 ft (2.1 m) length cable.
Is this cable compliant with NDAA standards?
Yes, this product is listed as NDAA 889 compliant.
