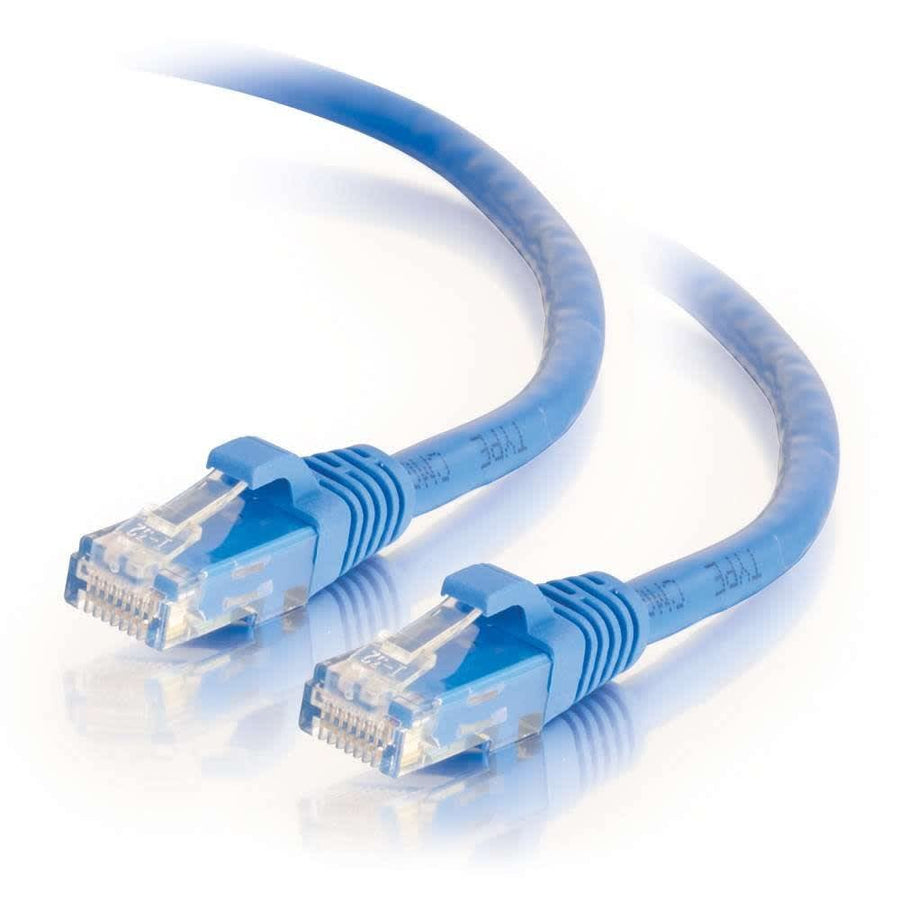

75ft (22.8m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
75ft Blue Cat6 UTP snagless patch cable, featuring RJ-45 male connectors for high-bandwidth voice, data, or video distribution applications
The C2G CG31361 is a 75ft (22.9 m) Cat6 Unshielded Twisted Pair (UTP) Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable meets all Cat6 TIA/EIA standards and is engineered to drastically reduce impedance and structural return loss (SRL). To maintain signal integrity, each of the individual copper pairs is bonded together, helping to maintain consistent twist-spacing throughout the line up to the termination point. This construction, utilizing stranded copper conductors, is specifically designed to minimize Near-End Crosstalk (NEXT) levels. The cable features a 0.24 in (6.2 mm) diameter and a blue PVC jacket. For ease of installation and long-term durability, the RJ-45 male connectors are equipped with molded snagless boots that protect the clips during plugging and unpluging while providing additional strain relief. This cable is part of a wider series available in 10 colors and various lengths up to 150ft to support color-coded network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 2.03 lbs (0.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120313618 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
Will the C2G CG31361 work in a high-bandwidth video network?
Yes, this Cat6 cable is designed for bandwidth-intensive applications including video, data, and voice distribution while meeting TIA/EIA standards.
Does this cable support color-coding for organized network racks?
Yes, this blue cable is part of a series available in 10 different colors and lengths up to 150ft for organized cable management.
What is the connector type on this patch cable?
The CG31361 features RJ-45 male connectors with a snagless, booted design to protect the clips from damage during installation.
What is the specific length and color of this SKU?
This specific SKU, CG31361, is a blue cable with a total length of 75 ft (22.9 m).
Is this cable suitable for use with patch panels?
Yes, it is compatible with various networking components such as the 48-Port Rack Mount Patch Panel (48845CC6) or 24-Port Rack Mount Patch Panel (24845CC6).
