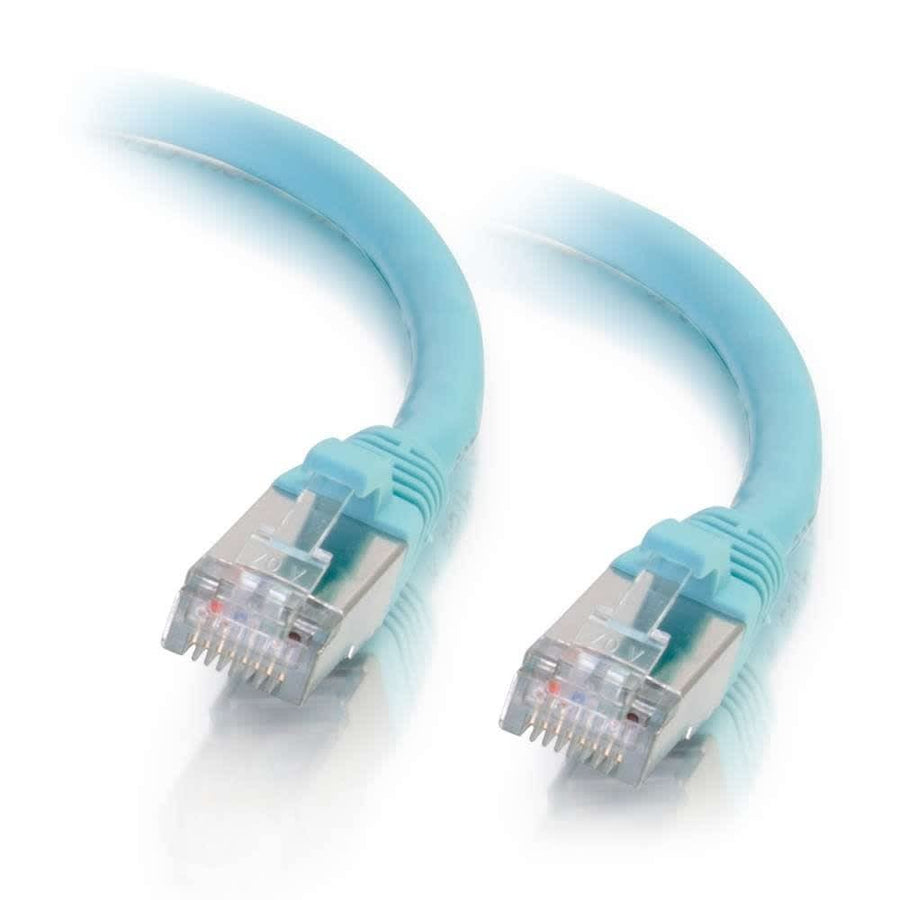

6ft (1.8m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Aqua
6ft shielded Cat6a patch cable, aqua color, with snagless boots for high-speed 10GBase-T network connections
The C2G CG00745 is a 6ft (1.8m) Cat6a snagless shielded STP Ethernet network patch cable designed for high-bandwidth, 10GBase-T environments. This aqua-colored cable is engineered to protect high-speed network connections from electromagnetic interference and noise, making it suitable for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Each cable features a stranded SSTP construction with 26AWG bare copper conductors to minimize impedance and structural return loss (SRL) during voice, data, or video distribution. To reduce Near-End Crosstalk (NEXT), individual pairs are bonded together to maintain consistent twist-spacing through to the termination point. This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance for bandwidth-intensive applications. The assembly utilizes PVC jacket material and FMPE (Foam Polyethylene) insulation, featuring snagless, booted RJ-45 male connectors on both ends.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007456 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
What is the maximum data speed supported by this Cat6a cable?
This cable is designed for 10GBase-T ports and equipment, providing support for high-speed 10 Gigabit network connections.
Is this cable suitable for high-interference environments?
Yes, the shielded STP (SSTP) design is specifically intended to protect high-speed network connections from noise and electromagnetic interference.
What is the termination standard for the CG00745?
This patch cable uses the 568B wiring scheme for its RJ-45 male terminations.
How does this cable manage crosstalk in high-bandwidth applications?
The design minimizes Near-End Crosstalk (NEXT) levels by bonding individual pairs to maintain twist-spacing up to the termination point.
