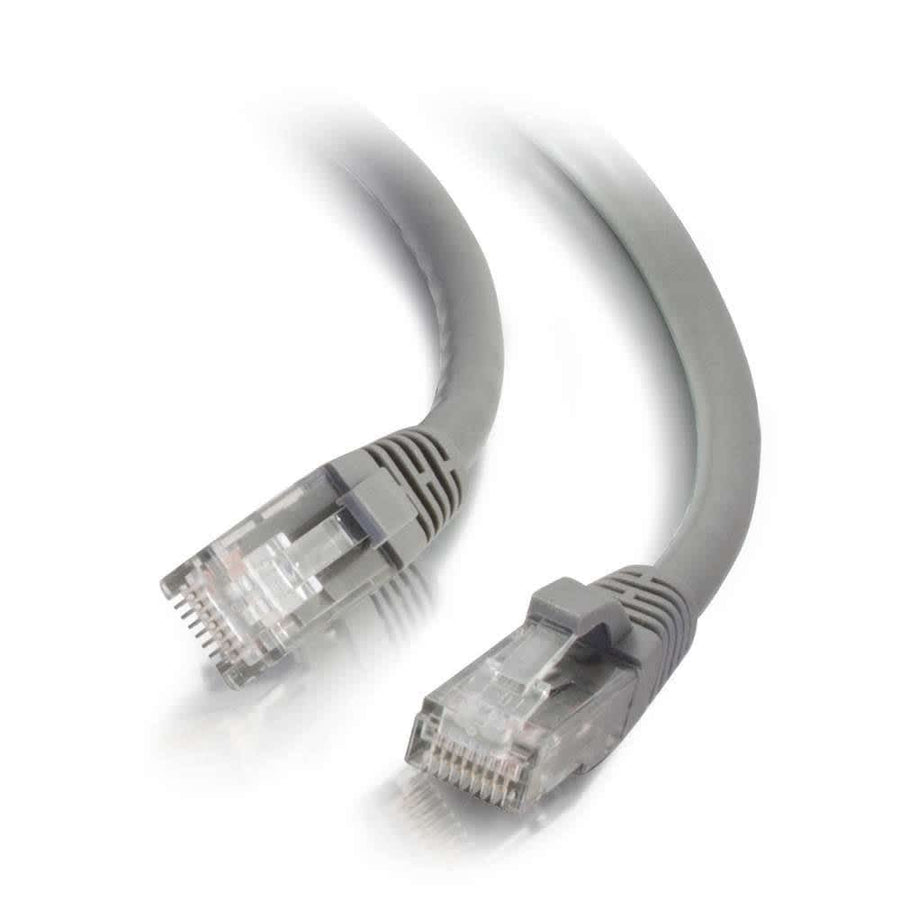

6ft (1.8m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
6ft Cat6 Snagless Patch Cable in Gray, featuring unshielded UTP construction and stranded copper conductors
The CG03967 is a 6ft (1.8m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable in Gray, designed for high-bandwidth voice, data, or video distribution. This cable is engineered to meet all Cat6 TIA/EIA standards, providing performance that drastically reduces impedance and structural return loss (SRL). Built with high-quality copper stranded conductors, this design is effective at minimizing Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to help maintain consistent twist-spacing throughout the entire line, right up to the termination point. For easier installation and maintenance, the molded snagless boot protects the RJ-45 clips from damage during plugging and unplugging, while also providing extra strain relief. This gray cable utilizes a T568B wiring scheme and features a 0.24 in (6.2 mm) cable diameter with a PVC jacket. This SKU belongs to a series that is available in up to 10 different colors to facilitate network color-coding and in lengths up to 150ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039679 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
Questions about this part
Will this CG03967 cable work with my Cat6 patch panel?
Yes, this cable is compatible with various Cat6 hardware such as the 48-Port Rack Mount Patch Panel (SKU 48845CC6) or the 24-Port Rack Mount Patch Panel (SKU 24845CC6).
What is the wiring configuration for the CG03967?
The CG03967 is manufactured with a standard T568B wiring scheme using unshielded twisted pair (UTP) copper conductors.
Does this Cat6 cable include strain relief?
Yes, it features a molded snagless boot that provides extra strain relief and prevents the RJ-45 clips from snapping off during use.
What is the diameter of the CG03967 cable?
This 6ft (1.8m) patch cable has a cable diameter of 0.24 in (6.2 mm).
Are there other color options for this series?
Yes, this series is available in 10 different colors to assist with network color-coding and comes in lengths up to 150ft.
