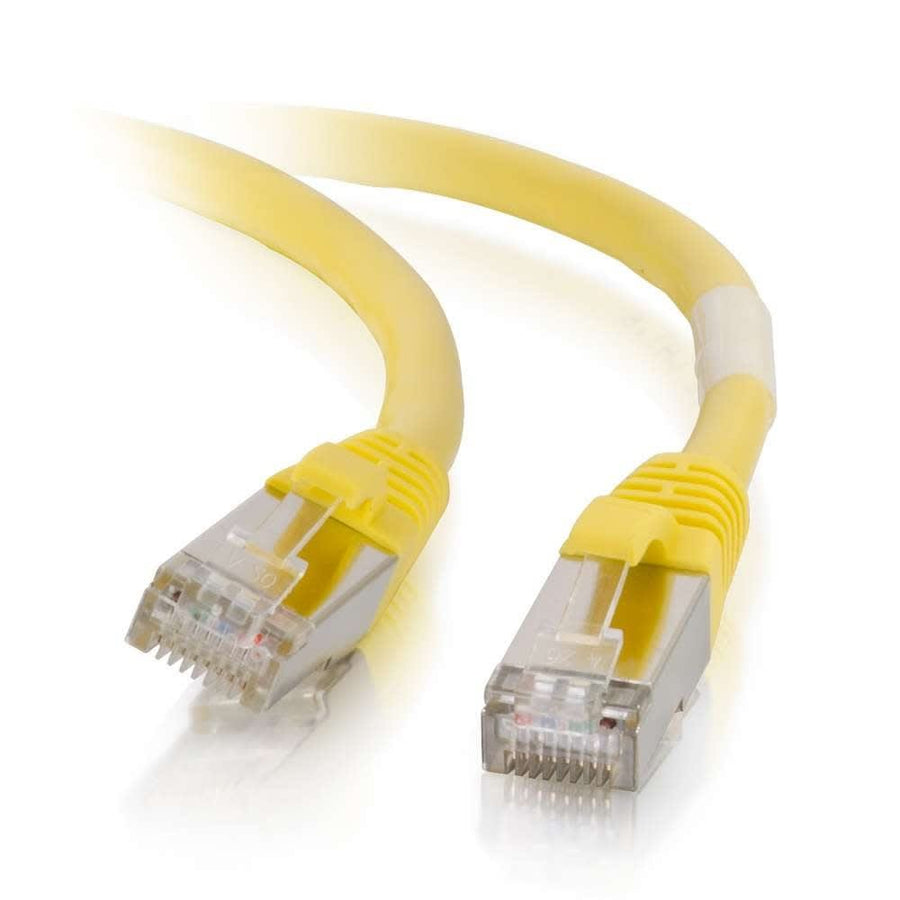

6ft (1.8m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Yellow
6ft (1.8m) shielded STP Cat6 patch cable in yellow, featuring snagless boots and stranded copper conductors
The C2G CG00864 is a 6ft (1.8m) Cat6 shielded STP Ethernet network patch cable designed for high-speed data distribution in environments prone to electromagnetic interference. This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance for bandwidth-intensive voice, data, and video applications. Each cable features 26AWG bare copper stranded conductors that are individually bonded to maintain precise twist-spacing throughout the entire line up to the termination point. This construction helps minimize Near-End Crosstalk (NEXT) and reduces both impedance and structural return loss (SRL). The yellow PVC jacket allows for easy color-coding within a network installation, and an individual length label is included on each cable for rapid identification. The connectors feature snagless, booted PVC hoods to protect the RJ-45 terminations during installation and handling.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | STP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008644 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Will this Cat6 cable work in high-interference environments?
Yes, the CG00864 is a shielded STP cable designed to protect high-speed networks from noise and electromagnetic interference.
What is the wiring scheme for the CG00864?
The CG00864 utilizes the T568B wiring scheme for its RJ-45 male connections.
Is this patch cable suitable for high-bandwidth video applications?
The CG00864 is designed for voice, data, and video distribution, specifically engineered to handle bandwidth-intensive applications.
What other networking accessories are compatible with C2G cables?
This cable can be used alongside various accessories, including the SOHOTest-E™ Residential Cable Tester (CG39004) and various Keystone jacks like the 90° Cat6 RJ45 UTP Shielded Keystone Jack (CG35217).
Does this cable include length identification?
Yes, each cable features an individual length label to assist with network organization and ease of use.
