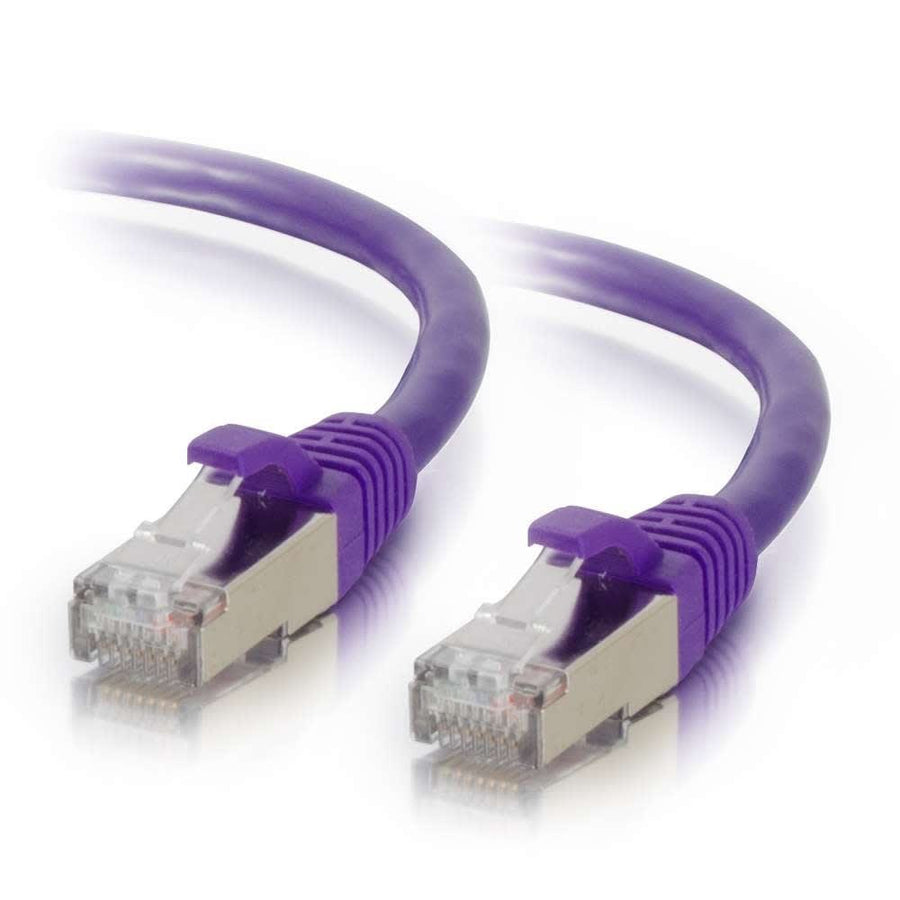

6ft (1.8m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Purple
6ft Cat6 Shielded STP patch cable in purple with snagless boots and T568B wiring
The C2G CG00902 is a 6ft (1.8m) Cat6 Shielded (STP) Ethernet network patch cable designed to protect high-speed networks from noise and electromagnetic interference. This snagless cable is ideal for voice, data, and video distribution in environments where bandwidth-intensive applications are used. Each cable features 26AWG (7/0.16) bare copper stranded conductors and is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The construction utilizes individual pair bonding to help maintain twist-spacing throughout the line up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. For easy identification in complex rack environments, this purple cable includes an individual length label on each unit. The RJ-45 male connectors feature PVC hoods and snagless boots to protect the locking tabs. This SSTP cable is rated for temperatures up to 75°C and uses FM-PE insulation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | STP |
| Shipping Weight | 0.1 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009023 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6ft (1.8m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00813$11.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this C2G CG00902 cable fit my network equipment?
This Cat6 cable uses standard RJ-45 male connectors and is compatible with devices requiring T568B wiring, such as the DA8400WH 8-Port Switch or DA8000WH 8-Port Network Switch.
What is the maximum temperature rating for the CG00902?
The CG00902 patch cable has a temperature rating of 75°C.
Does this Cat6 cable help with crosstalk in high-density environments?
Yes, the design minimizes Near-End Crosstalk (NEXT) levels through the use of stranded SSTP construction and individual pair bonding to maintain twist-spacing.
What is the difference between this cable and the black version?
The CG00902 is the purple color variant; for a black version, you would use SKU CG00813.
What documentation is available for submittals for this cable?
You can refer to the C2G Ethernet Patch Cable Matrix (PDF) for detailed category information.
