6ft (1.8m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - White

6ft (1.8m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - White

CG04237
IN STOCK

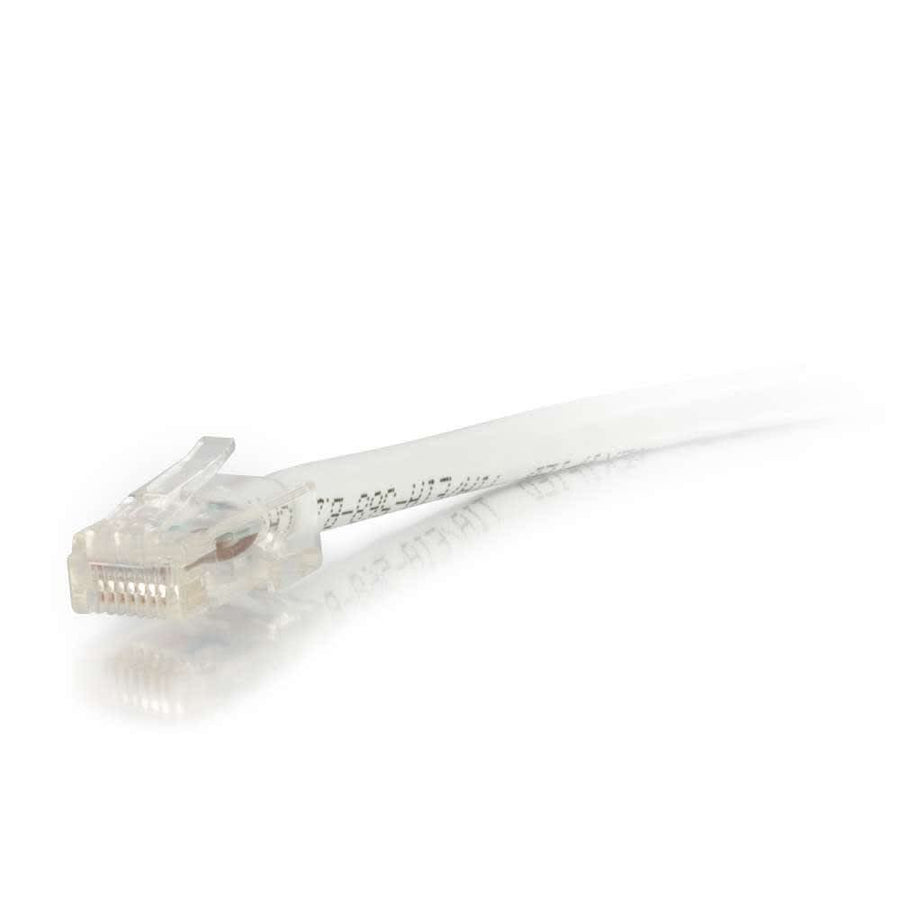

6ft White Cat6 Unshielded UTP Ethernet patch cable, featuring T568B wiring and RJ-45 male connectors

The C2G CG04237 is a 6ft (1.8m) Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth applications. This white patch cable is engineered for fast Ethernet and Gigabit computer networks that require efficient distribution for voice, data, or video. It meets all Cat6 TIA/EIA standards, working to drastically reduce impedance and structural return loss (SRL). Each individual pair is bonded together to maintain consistent twist-spacing throughout the line up to the termination point, a design feature that minimizes Near-End Crosstalk (NEXT) levels. This cable uses high-quality copper stranded conductors and features a PVC jacket with a 0.24 in (6 mm) diameter. It is built with RJ-45 male connectors on both ends following the T568B wiring scheme. The cable is rated for temperatures up to 75°C and carries CE, RoHS, and REACH certifications. This non-booted, unshielded cable is suitable for professional network installations requiring reliable performance in standard environments.

Specifications are supplied by the manufacturer. For complete details, check the Resources section.

Key features

·6ft (1.8m) length for short-distance network connections·Cat6 performance compliant with TIA/EIA standards·Unshielded UTP construction with bonded pairs to reduce NEXT·T568B wiring scheme with RJ-45 male connectors·Stranded copper conductors for flexible patch applications·White PVC jacket with 0.24 in (6 mm) diameter

Specifications

22 fields
Main specifications 8
Cable Diameter0.24 in (6 mm)
Cable Length6 ft (1.8 m)
Shield TypeUTP
Shipping Weight0.17 lbs (0.1 kg)
Wire Gauge24
Wiring SchemeT568B
Cable ShieldingUnshielded (UTP)
Cable TypeCat6
All other specifications 14
Category Performance ApplicationCat6
ColorWhite
Conductor MaterialCopper
Conductor StrandingStranded
Connector 1(1) RJ-45 Male(1) RJ-45 Male
Connector 2(1) RJ-45 Male(1) RJ-45 Male
Connector TypeNon-booted
Jacket RatingStandard / Non-Rated
Product TypeCable
TAA CompliantNo
UPC757120042372
CertificationsCENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA
Jacket MaterialPVC
WarrantyLifetime

Resources

2 documents · nothing behind a form

Questions about this part

What is the wiring scheme for the C2G CG04237?

This 6ft Cat6 patch cable uses the T568B wiring scheme and features RJ-45 male connectors.

What is the maximum temperature rating for this cable?

The CG04237 is rated for operation in temperatures up to 75°C.

Is this cable shielded or unshielded?

The CG04237 is an Unshielded (UTP) Cat6 cable, meaning it does not have internal shielding.

What other network components are compatible with this cable?

This cable can be used with various C2G products, including the AC1068 8-Port Cat6 Network Interface Module and the 48-Port Rack Mount Patch Panel (48845CC6).

What certifications does this Cat6 cable hold?

This product carries CE, REACH, and RoHS certifications.

$7.99One price for everyone. No account, no tiers to negotiate.
In stock — ships in 1–3 business days
Part number CG04237 Brand C2G
SHIPPING & RETURNS Shipping is charged per item by shipping class and shown at checkout. Rates apply to the contiguous United States (CONUS) only. Truck freight is dock to dock. If the delivery site has no loading dock, liftgate or residential fees apply — our team will contact you to confirm them. Unsure about shipping to your location? Email us and we will confirm the actual charge. 1–3 business days to process, then 3–5 business days in transit. Orders placed before 15:00 EST ship the same business day. 30-day returns. We send you the return label — no restocking fee. Shipping policy Return policy
NEED A HAND +1 (858) 266-0509 weborders@technelium.com Mon–Fri 08:00–17:00 PST. Specialists who install this equipment.
Manufacturer C2G MPN CG04237UPC 757120042372
