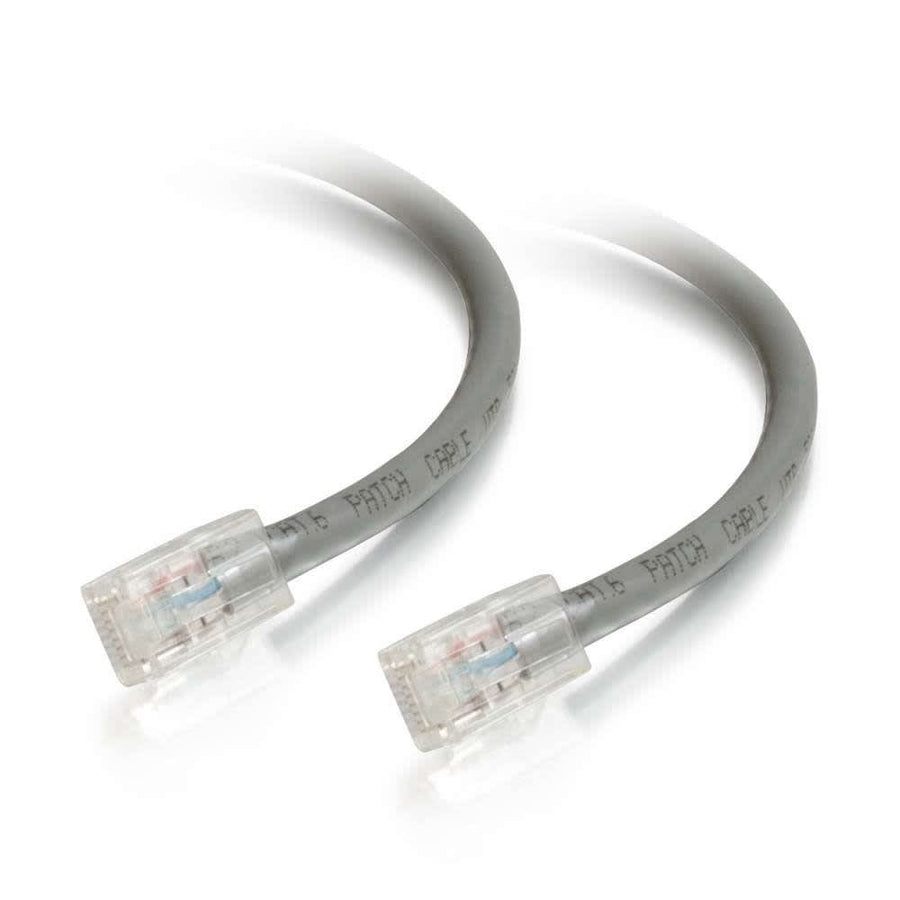

6ft (1.8m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
6ft (1.8m) Cat6 UTP patch cable, gray PVC jacket, T568B wiring, unshielded stranded copper
The C2G CG04069 is a 6ft (1.8m) Cat6 unshielded UTP Ethernet network patch cable designed for high-bandwidth applications involving voice, data, or video distribution. This cable is engineered to meet all Cat6 TIA/EIA standards, providing a reliable connection for fast Ethernet and Gigabit computer networks. By utilizing high-quality stranded copper conductors, this design helps minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the 6ft (1.8m) length, which significantly reduces impedance and structural return loss (SRL). This cable features a 0.24 in (6 mm) diameter and is housed in a gray PVC jacket with a non-booted connector type. The RJ-45 male connectors are terminated using the T568B wiring scheme. This specific gray model is part of a larger series of Cat6 non-booted patch cables available in various lengths and colors to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120040699 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
Is the C2G CG04069 compatible with rack mount hardware?
Yes, this cable is compatible with several C2G components, including the 48-Port Rack Mount Patch Panel (48845CC6) and the 24-Port Rack Mount Patch Panel (24845CC6).
What wiring standard does this Cat6 patch cable use?
The C2G CG04069 is wired according to the T568B scheme and features RJ-45 male connectors on both ends.
What testing equipment is needed to verify this cable?
For network validation, this cable can be used with the SOHOTest-E™ Residential Cable Tester or the Psiber Pinger Plus Network IP Tester.
What is the maximum operating temperature for this cable?
The cable is rated for a maximum temperature of 75°C.
What is the difference between the CG04069 and the booted versions?
This SKU (CG04069) is a non-booted version, meaning it lacks the additional strain relief boot found on other models in the C2G Cat6 Non-Booted Patch Cable Series.
