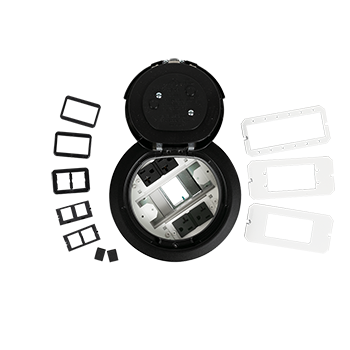

6ATC2PBK 6AT Prewired Evolution™ Poke Thru Device with Surface Style Cover in Black
Prewired 6-inch recessed poke-thru device with 3-gang capacity and black surface style cover
The 6ATC2PBK is a prewired Evolution™ 6-inch recessed poke-thru device designed for both new construction and retrofit applications. This unit provides convenient, recessed access to power, communications, and A/V services below the floor level, which maximizes device longevity and protection. This specific model features a black surface style cover and is TAA compliant for specialized project requirements. Because it arrives as a prewired assembly, labor is reduced since every power receptacle is already installed. The 3-gang capacity allows integrators to configure services to meet specific space needs in meeting rooms, classrooms, kiosks, or healthcare facilities. The cover design utilizes two spring-loaded slide egress doors that open 180 degrees, ensuring wires and connections remain safe. Additionally, the unit maintains the 2-hour fire rating of the installed floor via an integrated intumescent material.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Overall Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.25 in (18.4 cm) |
| Color | Black |
| Cover Style | Surface |
| Prewired | Yes |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Low Voltage Wall Switch
40975$92.80
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the 6ATC2PBK work with my existing Extron® equipment?
Yes, this device features an open system compatible with industry standard A/V devices from most manufacturers, including Extron®.
What is required for installation in a raised floor environment?
The unit is designed for 'step-on-it' installation, requiring no additional fasteners or a second installer for quick setup.
Can I control the plug load remotely with this device?
Yes, when used with Pass & Seymour® Wireless RF receptacles, you can control plug loads from up to 30 feet away while the cover is closed.
Does this device support ADA accessibility?
Yes, the Evolution Series poke-thru devices meet ADA accessibility guidelines.
What floor types is this poke-thru compatible with?
This model is suitable for installation in carpet, tile, wood, laminate, and concrete floor coverings.
