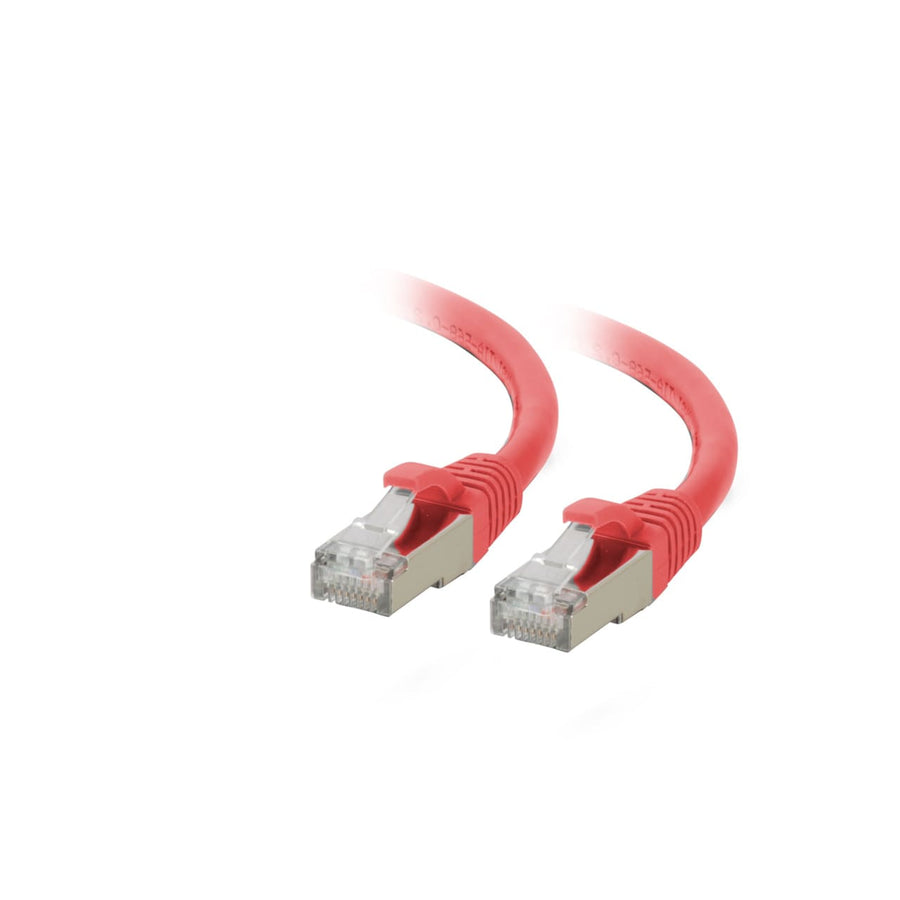

5ft (1.5m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Red
5ft Cat6a Snagless Shielded (STP) Ethernet Patch Cable in Red, supporting 10Gbps data transfer for high-speed networks
The C2G07364 is a 5ft (1.5 m) Snagless Shielded (STP) Cat6a Ethernet Patch Cable designed to support high-speed 10Gbps data transfer rates. Featuring a red PVC jacket, this cable is built to protect high-speed 10 Gigabit network connections from electromagnetic interference and noise via its Shielded Twisted Pair (STP) construction. It is an ideal solution for connecting network adapters, hubs, switches, routers, and DSL/cable modems, and is also suitable for HDBaseT applications. This cable is fully tested to meet ANSI/TIA-568-C.2 Cat6a component requirements, ensuring performance for bandwidth-intensive applications by reducing impedance and structural return loss (SRL). The snagless connector design includes a PVC hood to protect the RJ-45 lock in high-density environments, while the individual pairs are bonded to maintain twist-spacing through the termination point, which minimizes Near-End Crosstalk (NEXT). This Red cable is part of a larger series with various length and color options to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073642 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
What is the data transfer rate for the C2G07364?
The C2G07364 supports a data transfer rate of 10 Gbps, making it suitable for 10GBase-T equipment like switches and routers.
What does the snagless design provide for this Cat6a cable?
The snagless design uses a PVC hood to protect the RJ-45 connector's lock, which is especially useful when working in high-density environments.
Is this cable shielded against interference?
Yes, this is a Shielded STP (Shielded Twisted Pair) cable designed to protect high-speed connections from noise and electromagnetic interference.
What certifications does the C2G07364 meet?
This cable is fully tested to meet ANSI/TIA-568-C.2 Cat6a component requirements and carries CE, REACH, and RoHS certifications.
What other products are compatible with this cable?
This cable can be used with various network devices, including the DA8000WH 8-Port Network Switch or various surface mount boxes like the WP3504WH.
