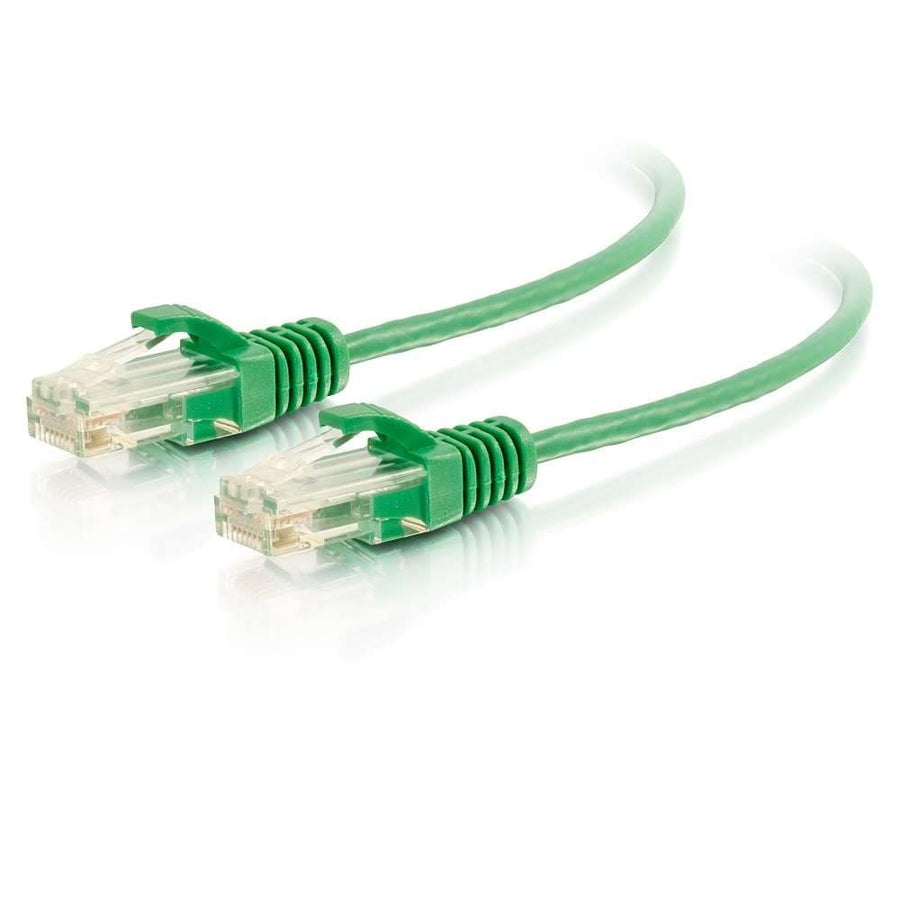

5ft (1.5m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Green
5ft Cat6 Slim Unshielded UTP patch cable in Green, featuring 28 AWG conductors and a small bend radius for high-density environments
The C2G CG01162 is a 5ft (1.5m) Cat6 Slim Unshielded UTP network patch cable designed specifically for high-density datacenter applications. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This slim profile, measuring 0.15 in (3.8 mm) in diameter, provides a smaller surface area that facilitates increased airflow within crowded racks. The reduced bend radius allows for easier routing through cable management panels and tight spaces. This green cable uses a T568B wiring scheme and features snagless, booted PVC connectors to protect against accidental disconnections. It is rated for bandwidth-intensive voice, data, or video distribution applications with a 500 mHz bandwidth. For PoE/PoE+ applications, it is recommended to limit bundles to 40 cables to manage heat dissipation caused by the reduced diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.1 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120011620 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
Questions about this part
What is the maximum channel length when using CG01162 slim cables?
For a 96 Meter Channel, you can use up to 6 meters of these slim network patch cables with 90 meters of horizontal cable. For a 93 Meter Channel, the limit is 10 meters of slim cable with 83 meters of horizontal cable.
Can I use these cables for PoE or PoE+ applications?
Yes, but for PoE/PoE+ applications, you should limit bundles to 40 cables to ensure proper heat dissipation due to the reduced diameter of the 28 AWG conductors.
Is this cable suitable for high-density datacenter environments?
Yes, the 0.15 in (3.8 mm) diameter and small bend radius make this cable an ideal solution for routing through crowded cable management panels and increasing airflow.
What is the maximum bandwidth and performance for this Cat6 cable?
The CG01162 is a Cat6 cable capable of supporting 500 mHz bandwidth for data, voice, or video distribution applications.
Which documents are available for submittals?
You can refer to the C2G Ethernet Patch Cable Matrix (PDF) or the Cat6 Slim Data Sheet (PDF) for detailed technical information and performance metrics.
