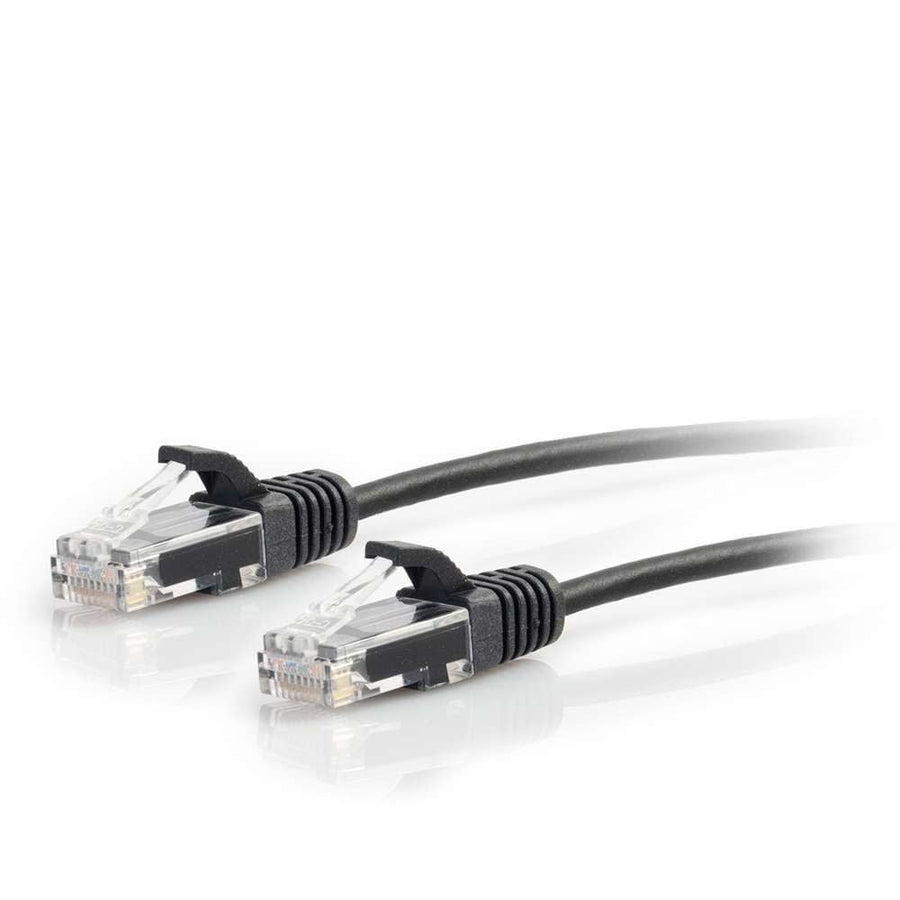

5ft (1.5m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Black
5ft Cat6 Slim Unshielded UTP Patch Cable, 0.15 in (3.8 mm) diameter, designed for high-density networking
The C2G CG01104 is a 5ft (1.5m) Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable in Black, specifically engineered for high-density datacenter applications. Utilizing 28 AWG stranded copper conductors, this cable features a 0.15 in (3.8 mm) diameter, which represents a 36% reduction in diameter compared to standard Cat6 patch cables. This slim profile significantly increases airflow within crowded racks and allows for a much smaller bend radius, making it easier to route through tight cable management panels. This Cat6 cable is designed for bandwidth-intensive voice, data, or video distribution in fast Ethernet networks. The molded snagless boot provides strain relief and protects against snags during installation. To maintain performance in high-density environments, it is recommended to limit POE/POE+ cable bundles to 40 cables to manage heat dissipation. This cable complies with the ANSI/TIA-568 standard and supports bandwidth up to 500 mHz.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.08 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120011040 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
Is the C2G CG01104 suitable for high-density datacenter use?
Yes, the CG01104 is designed for high-density environments because its 28 AWG slim diameter increases airflow and allows for easier routing through management panels.
Can I use this Cat6 slim cable for PoE or PoE+ applications?
Yes, but for POE/POE+ applications, it is recommended to limit cable bundles to 40 units to ensure proper heat dissipation of the reduced diameter cables.
How does the CG01104 compare to standard Cat6 patch cables?
This slim version features a 0.15 in (3.8 mm) diameter, which is 36% smaller than standard Cat6 cables, allowing for better bend radius and airflow.
What is the maximum channel length when using this slim patch cable?
For a 96 Meter Channel, you can use up to 6 meters of these slim network patch cables. For a 93 Meter Channel, you can use up to 10 meters.
What documentation is available for the CG01104?
You can refer to the C2G Ethernet Patch Cable Matrix or the Cat6 Slim Data Sheet for detailed technical performance information.
