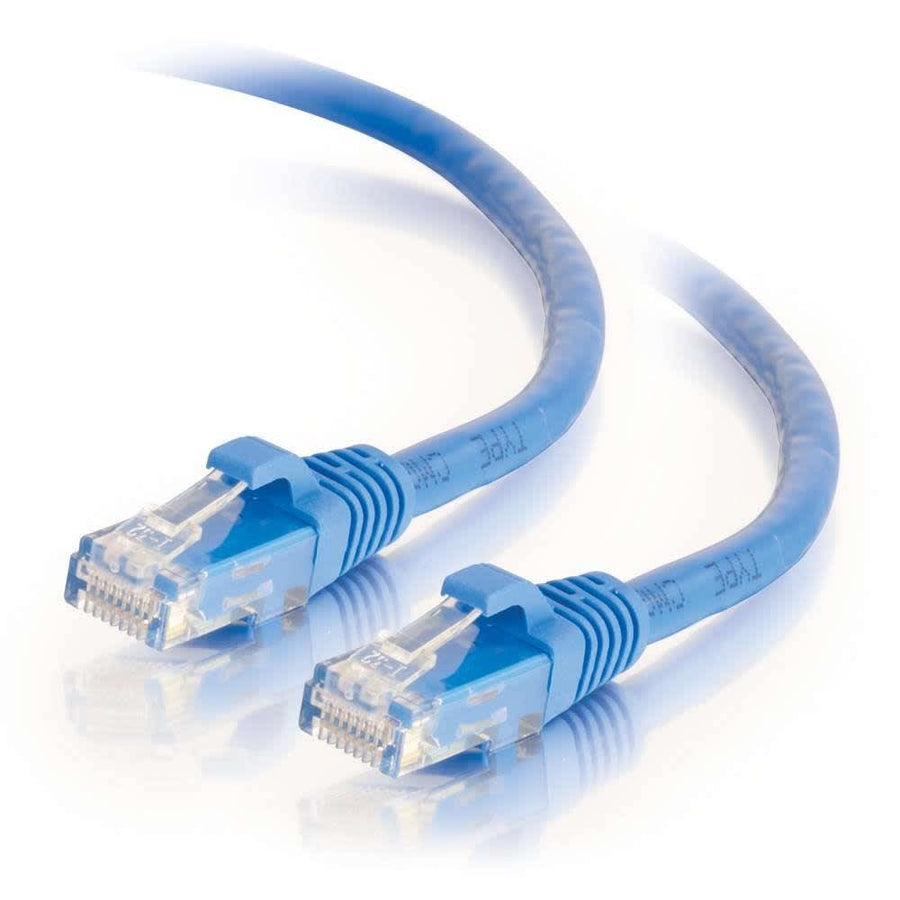

5ft (1.5m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack - 50 Pack - Blue
5ft Cat6 UTP patch cable multipack, 50-count, blue snagless connectors for high-bandwidth data and video distribution
The C2G CG31372 is a 5ft (1.5 m) Cat6 unshielded UTP ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This bulk multipack contains 50 individual cables, making it an efficient choice for large-scale network deployments. Each cable features stranded copper conductors and is manufactured to meet all Cat6 TIA/EIA standards, which helps to drastically reduce structural return loss (SRL) and impedance. The design utilizes bonded individual pairs to maintain consistent twist-spacing through the entire line up to the termination point, effectively minimizing Near-End Crosstalk (NEXT) levels. For ease of installation, each cable is equipped with a molded, snagless boot made of PVC, which provides extra strain relief and protects the connection from being caught during routing. These blue cables use a T568B wiring scheme and are rated for operating temperatures between -4°F (-20°C) and 176°F (80°C). The 0.24 in (6.2 mm) diameter allows for manageable cable runs in high-density environments.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 0.9 in (22.8 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Package Count | 50 |
| Shield Type | UTP |
| Shipping Weight | 7.58 lbs (3.4 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 19
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120313724 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
What is included in the CG31372 multipack?
This SKU is a 50-pack containing 50 individual 5ft (1.5 m) Cat6 blue patch cables.
Is this cable suitable for Gigabit networking?
Yes, these Cat6 cables are designed for fast Ethernet and Gigabit computer networks requiring high-bandwidth video or data distribution.
What is the wiring standard for these cables?
These C2G patch cables follow the T568B wiring scheme.
Can I use these cables with the CG39002 LANsmart TDR Cable Tester?
Yes, these Cat6 cables are compatible with various testing equipment, including the CG39002 LANsmart TDR Cable Tester.
What is the temperature range for these cables?
The cables are rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C).
