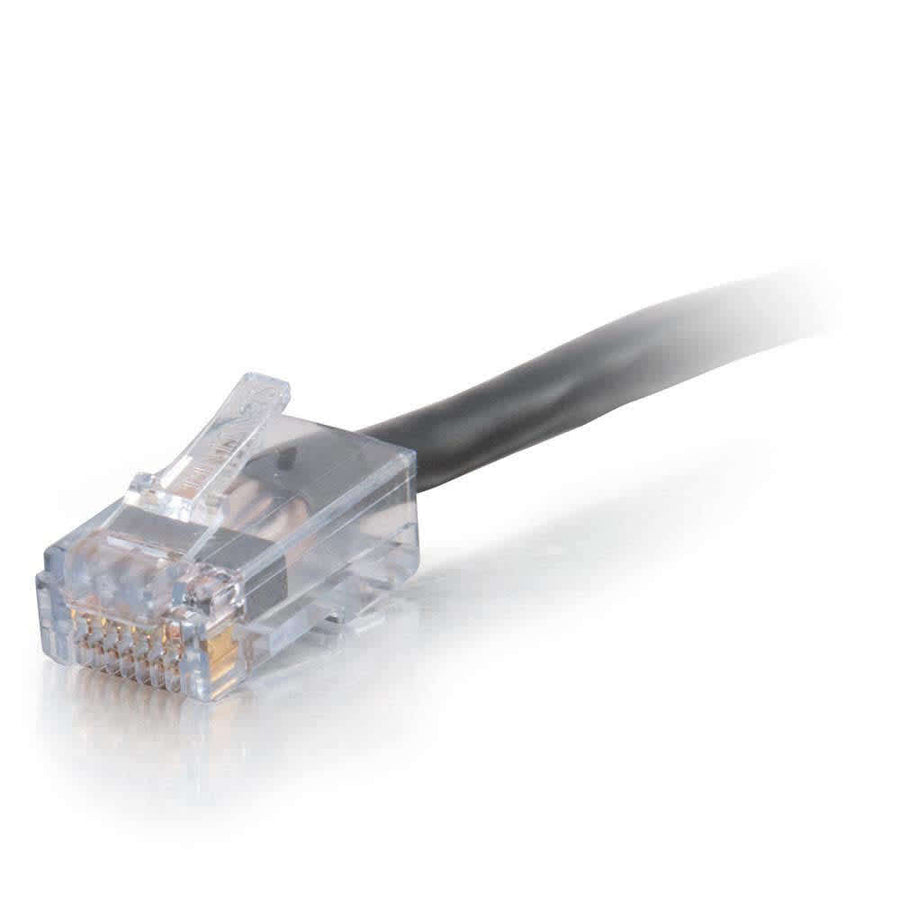

5ft (1.5m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Black
5ft Cat6 plenum-rated patch cable in black, featuring UTP construction and 23AWG solid copper conductors
The CG15293 is a 5ft (1.5 m) Cat6 UTP patch cable designed to meet the strict building code requirements for cabling in plenum spaces. This cable is suitable for routing through dropped ceilings or under raised floors in commercial environments like hospitals and schools. It is a CMP and FT6 rated cable, making it ideal for voice, data, and video distribution in air-handling spaces. The construction features 23AWG solid copper, 4-pair stranded conductors that are tested to 550MHz to support bandwidth-intensive applications. Each end is equipped with 50 micron gold plated RJ-45 male connectors. This non-booted, unshielded cable is TAA compliant and meets TIA/EIA-568-C.2 standards, helping to reduce impedance and structural return loss (SRL) while minimizing Near-End Crosstalk (NEXT) levels.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.14 lbs (0.1 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Black |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152934 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
Can the CG15293 be used in plenum spaces?
Yes, this cable is CMP and FT6 rated specifically for use in plenum air-handling spaces, such as above dropped ceilings or under raised floors.
Is this Cat6 cable TAA compliant?
Yes, the CG15293 is TAA compliant and meets NDAA 889 requirements for commercial installations.
What is the maximum frequency this patch cable supports?
This Cat6 patch cable is tested to 550MHz, making it suitable for high-bandwidth data, voice, and video distribution.
What are the connector specifications for this cable?
The CG15293 features non-booted RJ-45 male connectors with 50 micron gold plating on the contacts.
What other colors are available in this series?
This series is available in Gray and Blue in addition to the Black model.
