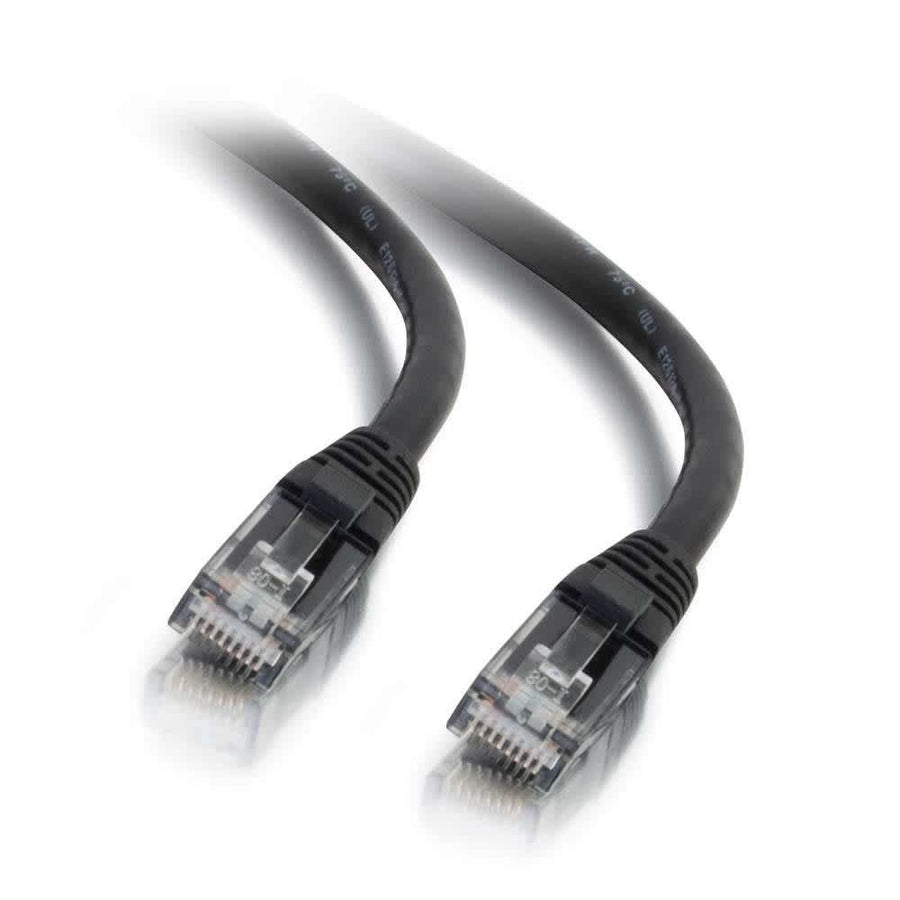

50ft (15.2m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
50ft (15.2m) Cat6 unshielded UTP patch cable in black, featuring snagless boots for clip protection and stranded copper conductors
The C2G CG27156 is a 50ft (15.2m) Cat6 Unshielded Twisted Pair (UTP) Ethernet network patch cable designed for high-bandwidth voice, data, or video distribution. Optimized for fast Ethernet and Gigabit computer networks, this cable meets all Cat6 TIA/EIA standards. It is engineered to drastically reduce impedance and structural return loss (SRL) while minimizing Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing from the connector to the termination point. This specific SKU features a black PVC jacket with a 0.24 in (6.2 mm) diameter. The connectors are standard RJ-45 males with a snagless, booted design made of PVC to protect the clips during installation and provide extra strain relief. Constructed with stranded copper conductors and a 24 AWG wire gauge, this cable is ideal for professional network environments requiring reliable connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.38 lbs (0.6 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271567 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
What is the maximum length available for this Cat6 series?
While this SKU is 50 ft (15.2 m), the Cat6 Snagless Patch Cable series is available in lengths up to 150ft.
Does this cable support Gigabit network speeds?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit computer networks requiring bandwidth-intensive applications.
Will this cable work with my rack mount patch panel?
This cable is compatible with various networking hardware, including the 48-Port Rack Mount Patch Panel (SKU: 48845CC6) and the 24-Port Rack Mount Patch Panel (SKU: 24845CC6).
What is the construction of the conductors in the CG27156?
The CG27156 features stranded copper conductors and uses a T568B wiring scheme.
What certifications does this patch cable hold?
This product is listed with CE, RoHS, and REACH certifications, and is compliant with NDAA 889.
