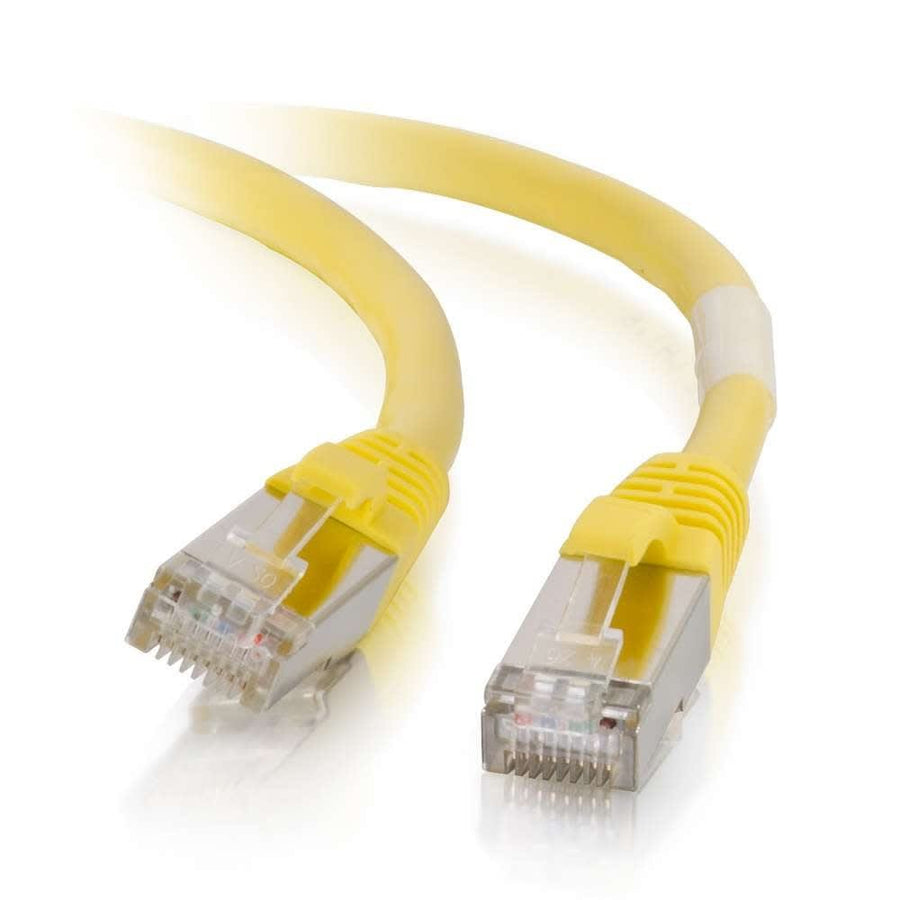

4ft (1.2m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Yellow
4ft Cat6 STP shielded patch cable in yellow, featuring stranded copper conductors and snagless boots to reduce electromagnetic interference
The C2G CG00862 is a 4ft (1.2m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable designed for high-speed network environments. This yellow cable is constructed with 26AWG bare copper stranded conductors, ensuring reliable performance for bandwidth-intensive voice, data, and video distribution. To protect against electromagnetic interference and noise, this cable utilizes SSTP (Stranded Shielded Twisted Pair) construction. Each individual pair is bonded together to maintain twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT), impedance, and structural return loss (SRL). This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The assembly features RJ-45 male connectors with PVC snagless boots for easy installation and protection. This specific SKU is part of a larger series, with a black version available under part number CG00811.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | STP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008620 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
4ft (1.2m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00811$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this C2G CG00862 cable work for high-speed data and video distribution?
Yes, it is designed to handle bandwidth-intensive applications by reducing impedance and structural return loss (SRL) through its shielded SSTP construction.
What is the wiring scheme for the CG00862?
The cable uses a T568B wiring scheme and features 26AWG stranded copper conductors.
Is there a different color version of this Cat6 shielded cable?
Yes, this is the yellow version; a black version is available under SKU CG00811.
What certifications does this patch cable hold?
This cable is CE, REACH, and RoHS compliant, and it has been tested to ANSI/TIA 568 C.2 Cat6 standards.
Does this cable have a warranty?
Yes, this C2G patch cable comes with a lifetime warranty.
