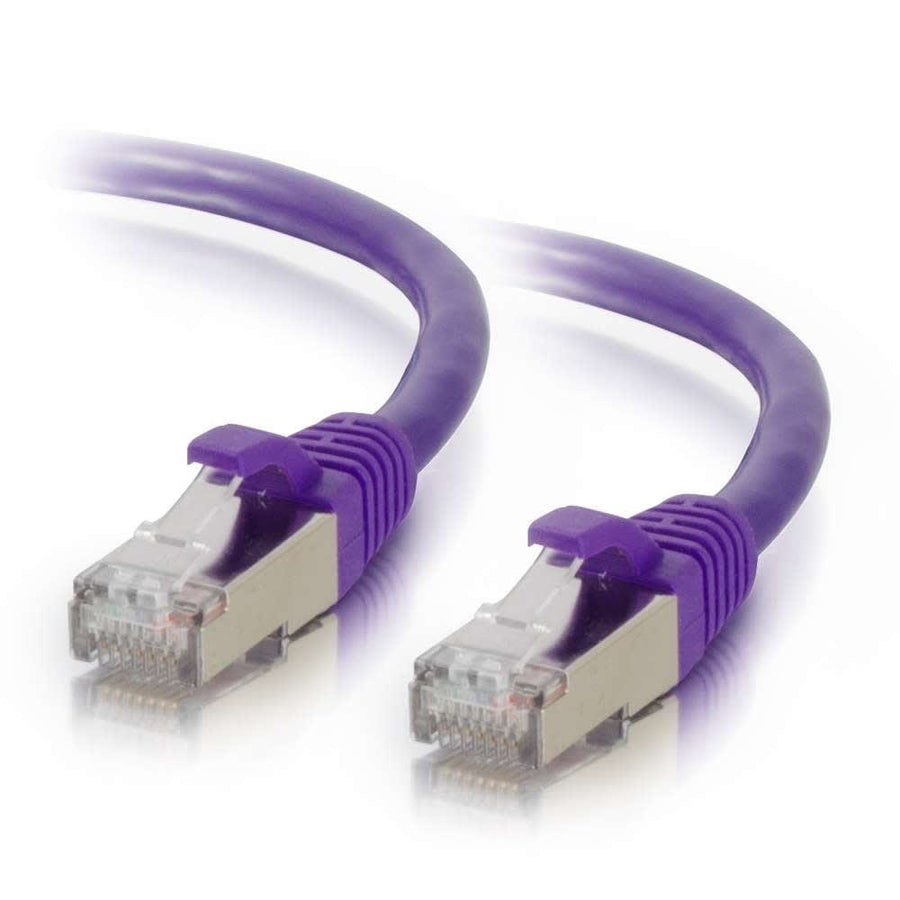

4ft (1.2m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Purple
4ft (1.2m) purple Cat6 shielded STP patch cable with snagless boots and stranded copper conductors
The C2G CG00900 is a 4ft (1.2m) Cat6 shielded (STP) patch cable designed to protect high-speed networks from electromagnetic interference and noise. This cable is ideal for bandwidth-intensive voice, data, and video distribution where minimizing impedance and structural return loss (SRL) is critical. It features stranded bare copper conductors with a 26AWG (7/0.16) wire gauge and FM-PE insulation. The cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring performance in demanding environments. Each individual pair is bonded together to maintain twist-spacing up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. The purple jacket is made of PVC and features a snagless, booted RJ-45 male to RJ-45 male connector configuration. This SKU is part of a wider series that includes a black version, SKU CG00811.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | STP |
| Shipping Weight | 0.07 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009009 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
4ft (1.2m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00811$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Is the C2G CG00900 compatible with Cat6 hardware?
Yes, this is a Cat6 performance cable that has been tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
What is the wiring configuration for this patch cable?
The CG00900 utilizes the T568B wiring scheme for its RJ-45 male connections.
What is the difference between the CG00900 and the CG00811?
The CG00900 is the purple version of this cable, whereas the CG00811 is the black variant.
Does this cable provide protection against electromagnetic interference?
Yes, the STP (Shielded Twisted Pair) design is specifically intended to protect high-speed networks from noise and electromagnetic interference.
What is the maximum operating temperature for this cable?
This cable is rated for a temperature of 75°C.
