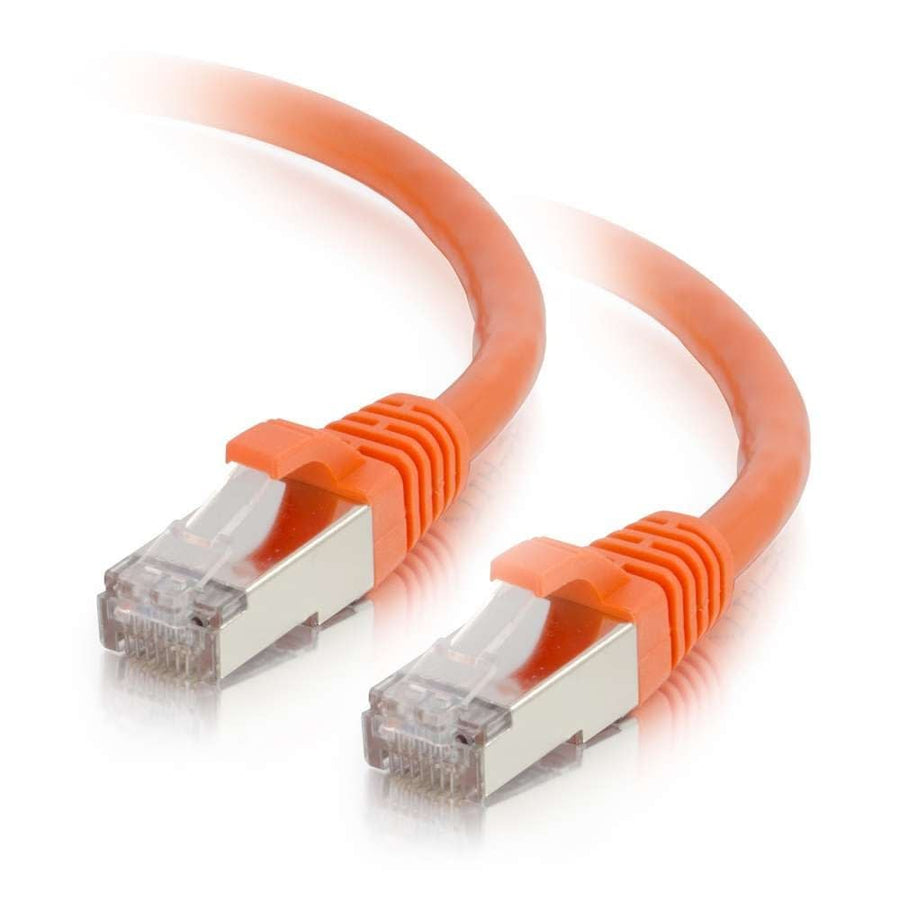

4ft (1.2m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Orange
Shielded Cat6 STP patch cable, 4ft length, orange color, with snagless boots for high-speed data distribution
The C2G CG00879 is a 4ft (1.2m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable designed to protect high-speed networks from electromagnetic interference and noise. This orange cable is constructed with 26AWG bare copper stranded conductors and features an FM-PE insulation to maintain high-speed performance. It is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, making it suitable for bandwidth-intensive voice, data, and video distribution. Each individual pair is bonded together to preserve twist-spacing throughout the line up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. The cable features a T568B wiring scheme and utilizes PVC jacket material with a rated temperature of 75°C. Each cable is identified with an individual length label to assist with network organization and management during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | STP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008798 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
