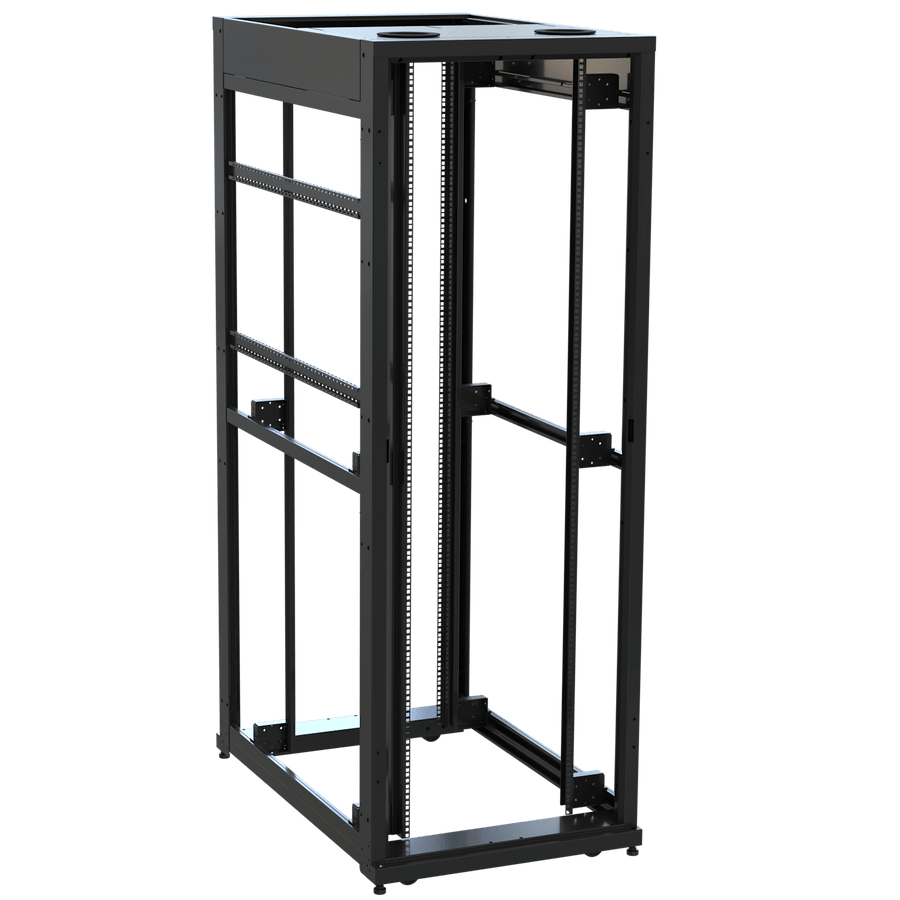

45 RU SNE Series Rack Frame, 48 Inches Deep, 30 Inches Wide with Cage Nut Rackrail
45 RU floor-standing rack frame, 48 in deep, 30 in wide, seismic rated with cage nut rackrails
The Middle Atlantic SNE30F-CN-4548 is a 45 RU floor-standing rack frame designed for high-security and network environments. This purpose-built frame offers a usable height of 78.75 in (200 cm) and a usable depth of 44.48 in (113 cm), making it suitable for complex IP, analog, digital, and hybrid systems. It is engineered for versatility in both conditioned and unconditioned spaces, supporting various thermal management options through active or passive ventilation. This seismic-rated frame provides a UL-listed load capacity of 3000 lbs (1,360.8 kg). It features a black texture powder coat finish and includes four leveling feet and four casters for mobility and stability. This frame is TAA compliant and is part of a gangable series, allowing for side-by-side installation in large-scale deployments. Note that this product is scheduled for discontinuation on December 1, 2026; the recommended replacement is the DRK19-44-42.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 48 in (121.9 cm) |
| Height | 84.9 in (215.7 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 234 lbs (106.1 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 44.48 in (113 cm) |
| Usable Height | 78.75 in (200 cm) |
| Width | 30.04 in (76.3 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | Cage Nut |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747238567 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Seismic Brackets for 30 Inch Wide SNE Series
SNE30-Z4$360.90
45 RU Split Solid Door for 30 Inch SNE Rack
SNE30-CSD-45$691.20
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
45 RU Side Panel for 4548 Inch SNE Racks
SNE-SPNH-4548$494.10
48 RU Side Panels for 48 Inch Deep SNE Racks
SNE-SPN-4548$816.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Premium Online Series Replacement Battery Pack, 1500VA UPS & 1500VA Left UPS Expansion Battery
UPS-OLRBP-3$594.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
Questions about this part
Will the SNE30F-CN-4548 fit my specific equipment depth?
The frame provides a usable depth of 44.48 in (113 cm) within its 48 in (121.9 cm) total depth, which is suitable for most standard deep-enclosure networking hardware.
What accessories are needed to complete this rack enclosure?
As a frame-only system, you may need to purchase side panels like the SNE-SPN-4548, split solid doors such as the SNE30-CSD-45, or seismic brackets like the SNE30-Z4.
Is this rack rated for seismic environments?
Yes, this frame is seismic rated and UL listed, making it suitable for environments requiring higher structural integrity.
Can I add more power or management modules to this frame?
The frame supports various accessories, including the USC-6R Universal Sequencing Controller and multiple MPR power modules like the MPR-6A raceway.
What is the difference between this and the DRK19 series?
This SNE series frame is a specialized security and network frame; please refer to the DRK19-44-42 as the manufacturer's recommended replacement for this SKU.
