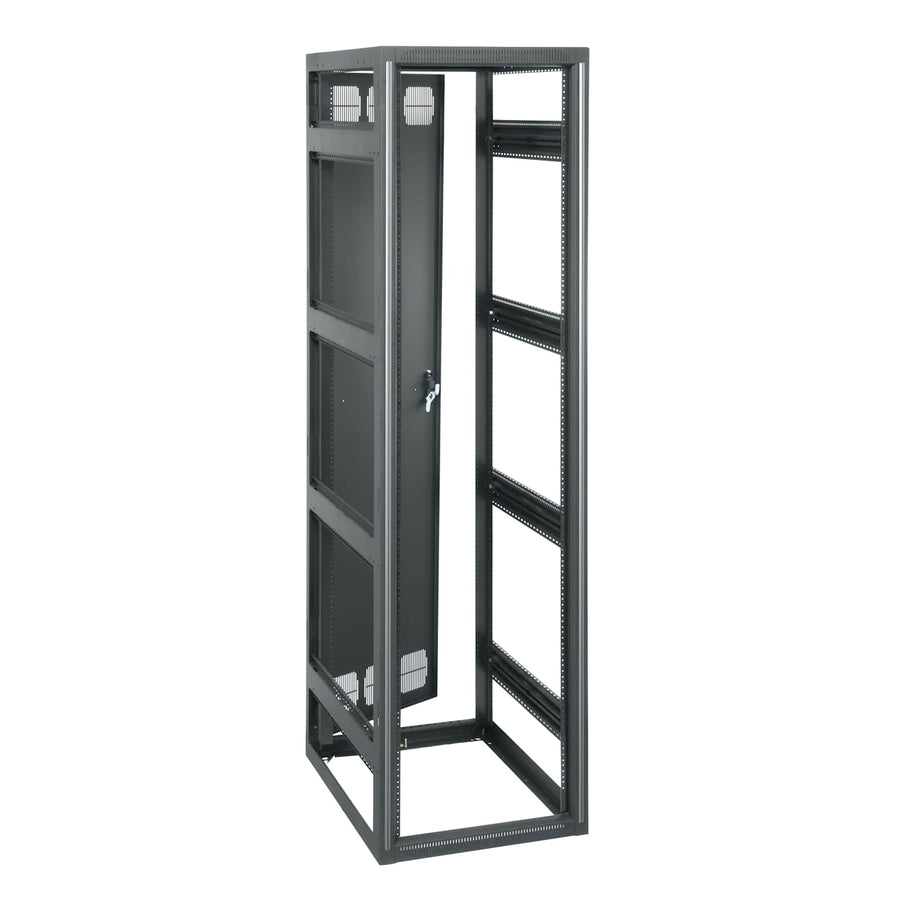

45 RU BGR Series Rack, 38 Inches Deep
45 RU floor standing AV rack with 38" depth, 3000 lbs UL load capacity, and seismic rating
The Middle Atlantic BGR-4538 is a high-capacity 45 RU floor standing rack designed for professional AV installations requiring significant depth and structural integrity. Featuring a 38 in (96.5 cm) depth and a 23 in (58.4 cm) width, this steel frame offers a 35.4 in (89.9 cm) usable depth, providing ample space for complex equipment configurations. It is engineered for high-density environments, boasting a UL Load Capacity of 3000 lbs (1,360.8 kg) and a Seismic Load Capacity of 1175 lbs (533 kg). This rack is Seismic Rated and HCAI (formerly OSHPD) certified (OPM-0444-13), making it suitable for critical infrastructure. The design is Forward Compatible and features a Forward Rackrail system that works with Lever Lock™ tool-free accessories to accelerate installation speeds. The 23" width creates extra side space for front-to-back cable management or mounting small devices using Lever Lock™ accessories. This frame-only configuration includes a standard vented rear door and is gangable for expanding multi-rack deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 38 in (96.5 cm) |
| Height | 82.88 in (210.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 182 lbs (82.6 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 35.4 in (89.9 cm) |
| Usable Height | 78.88 in (200.4 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140075 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
1 RU Mounting Rackshelf
UTR1$58.50
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
44 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-44-OWP$400.50
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
FTA Series 4 Inch DC Fan
FT-FAN$90.00
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
44 RU Copper Bus Bars, 1 Inch Wide
BB-44-1$296.10
Isolation Kit BGR Series
BGR-ISO$83.70

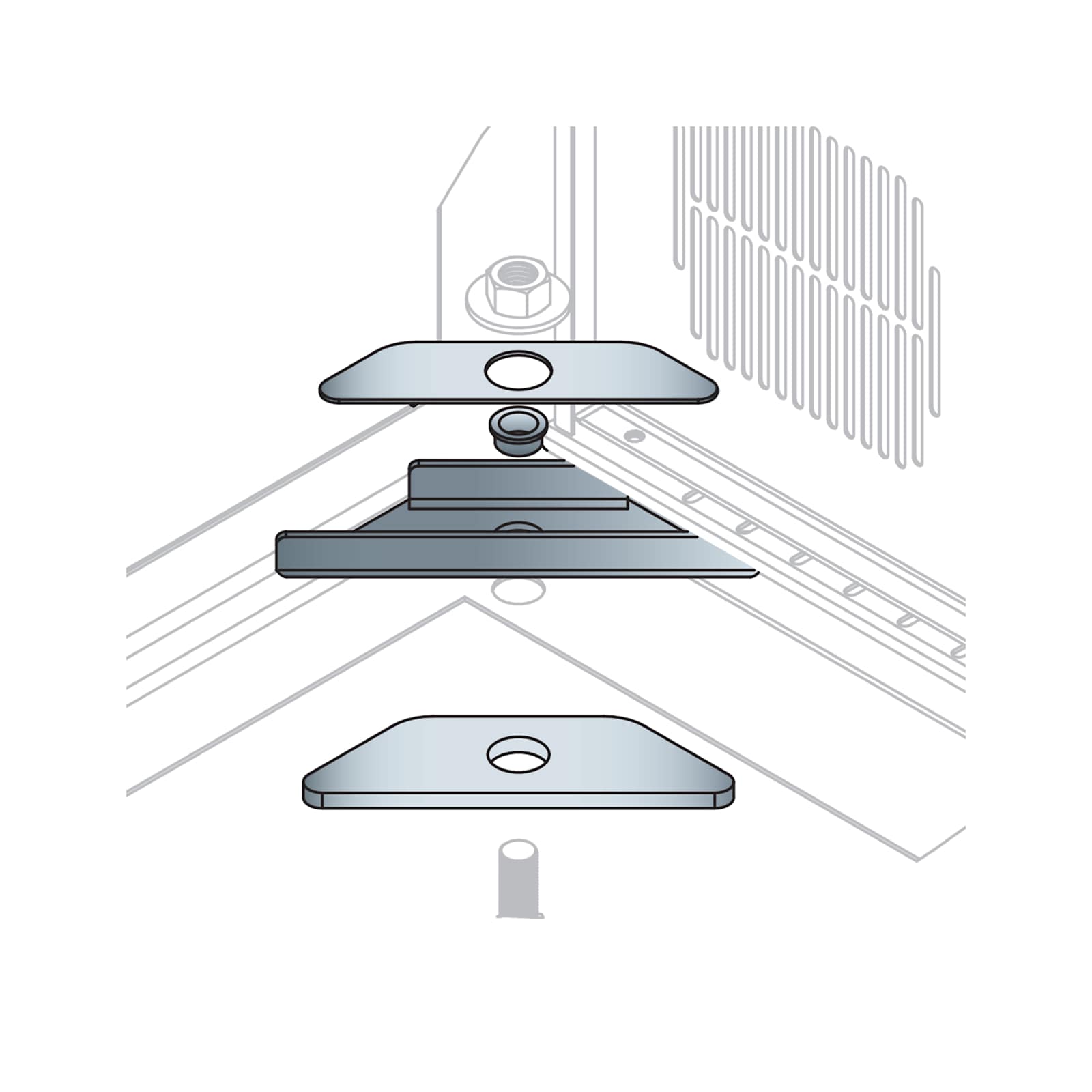

Seismic Brackets for ISO BGR Racks
BGR-ISO-Z4$144.00
Questions about this part
Will this rack fit my equipment and cable management?
With a 38 in (96.5 cm) depth and 23 in (58.4 cm) width, this BGR-4538 provides 35.4 in (89.9 cm) of usable depth. The extra width allows for side-mounted Lever Lock™ accessories and front-to-back cable management.
What accessories are needed for a complete setup?
This is a frame-only configuration. You may need to purchase accessories such as the CBS-BGR caster base, UTR1 mounting rackshelves, or specialized items like the PD-2420SC-NS vertical power strips.
Is this rack suitable for seismic or high-load environments?
Yes, this rack is Seismic Rated with a 1175 lbs (533 kg) capacity. It is also UL Listed with a 3000 lbs (1,360.8 kg) load capacity and is HCAI (formerly OSHPD) certified.
How do I handle cabling through the rear door?
The included standard vented rear door is designed to accept an optional brush grommet rear door kit, allowing for large cable passage without the need for fishing cables through small openings.
Which document should I use for submittals?
Technical professionals can refer to the BGR Series A&E Specification Sheet (PDF) or the BGR Series 3 Part Specification (docx) for detailed installation and compliance data.
