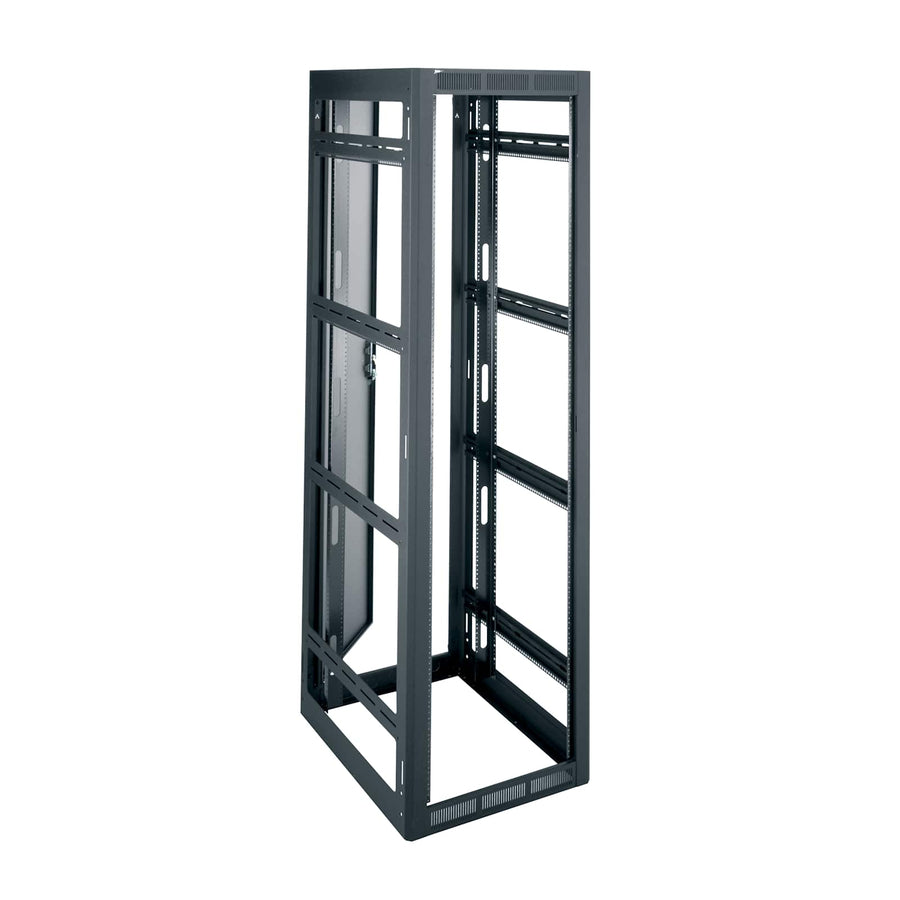

44 RU WRK Series 24-1/4 Inch Wide Rack, 27 Inches Deep
44 RU floor standing rack, 24.25" wide, 27.63" deep, featuring seismic rating and 10,000 lbs weight capacity
The Middle Atlantic WRK-44-27 is a 44 RU floor standing rack designed to accommodate equipment with thick cable bundles that require more space than a standard-width enclosure. With an overall width of 24.25 in (61.6 cm) and a depth of 27.63 in (70.2 cm), this rack provides extra room for side cabling and enhanced cooling airflow. This model is ideal for multi-bay installations where high-density environments demand improved thermal management. For heavy-duty deployments, it offers a 10,000 lbs (4535.9 kg) weight capacity and a UL Load Capacity of 2500 lbs (1,134 kg). This rack is TAA Compliant and seismic rated with an ASCE 7-10 rating and a seismic load capacity of 900 lbs (408.2 kg). It features fully welded construction, standard 10-32 threaded adjustable front and rear rackrails, and a configurable rear door for secure equipment management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27.63 in (70.2 cm) |
| Height | 83.13 in (211.2 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 44 RU |
| Shipping Weight | 166 lbs (75.3 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 25.75 in (65.4 cm) |
| Usable Height | 77 in (195.6 cm) |
All other specifications 12
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 24.25 in (61.6 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747025143 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 900 lbs (408.2 kg) |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
44 RU Vented Front Door for ERK, MRK and WRK Racks, 64% Open
LVFD-44$792.00
44 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-44-OWP$400.50
220 CFM Fan Top with Controller
MW-4QFT-FC$1,110.60
PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
44 RU Vented Front Door for ERK, MRK and WRK Racks
VFD-44$694.80
550 CFM Fan Top with Controller
MW-10FT-FC$924.30
44 RU Solid Front Door for ERK, MRK and WRK Racks
FD-44$440.10
380 CFM Fan Top
MW-4FT-380CFM$649.80
44 RU Side Panels for 26-27 Inch Deep MRK or WRK Racks
SPN-44-267$835.20
Questions about this part
Will the WRK-44-27 fit my high-density cabling requirements?
Yes, the 24.25 in (61.6 cm) overall width provides extra space for side cabling and improved cooling airflow compared to standard racks.
Is this rack seismic rated for heavy equipment installations?
The WRK-44-27 is seismic rated with an ASCE 7-10 rating and a seismic load capacity of 900 lbs (408.2 kg).
What is the difference between the weight capacity and the UL load capacity?
This rack features a 10,000 lbs (4535.9 kg) weight capacity and a UL Listed load capacity of 2500 lbs (1,134 kg).
Can I expand my installation with additional racks?
Yes, this series is gangable, allowing you to connect multiple units together for large-scale installations.
What accessories are compatible with the WRK-44-27?
You can add components like the 44 RU Vented Front Door (VFD-44), side panels (SPN-44-267), or various fan tops like the 550 CFM Fan Top (MW-10FT-FC).
