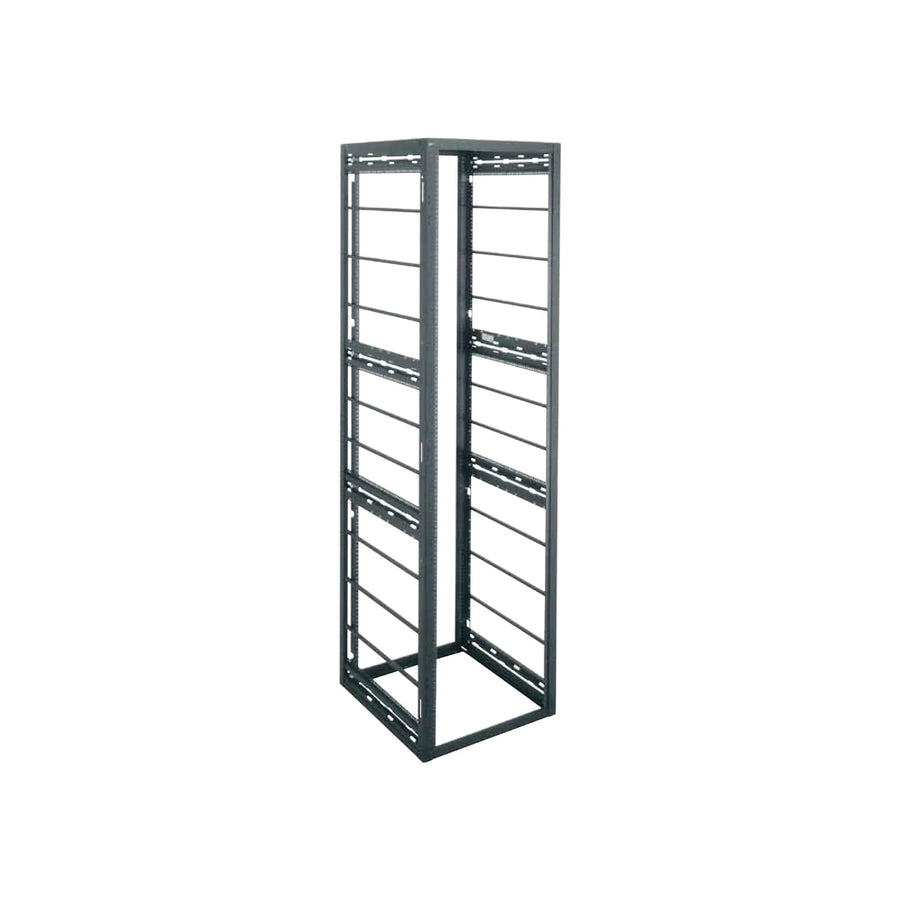

44 RU GRK Series Broadcast Rack, 36 Inches Deep
44 RU broadcast rack, 36 inches deep, with 1,500 lb. capacity and welded gangable construction
The GRK-44-36HLRD is a 44 RU GRK Series Broadcast Rack designed for high-density video environments requiring efficient cable management. This 36 in (91.4 cm) deep floor-standing rack features a robust, welded gangable design with solid frame top and bottom construction. It is engineered to accommodate narrow multi-bay configurations, making it ideal for managing large video cable bundles. The rack allows for straight vertical cable runs through a fully open top and bottom, while finished edges at these openings help prevent cable chafing. For organized installation, the unit includes horizontal cable management bars for tie-and-slide lacing and numbered rackspace increments. The frame is finished in a durable black textured powder coat and includes standard grounding and bonding studs at the top and bottom. This TAA compliant unit is UL Listed and cULus certified.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 36 in (91.4 cm) |
| Height | 80 in (203.2 cm) |
| Rack Units | 44 RU |
| Shipping Weight | 135 lbs (61.2 kg) |
| Weight Capacity | 1500 lbs (680.4 kg) |
| Federal Ops Country of Origin | USA |
| Rear Door | No |
| TAA Compliant | Yes |
| UPC | 656747062414 |
| Certifications | cULusTAAUL Listed |
Resources
You'll need these with it
100 CFM Fan Panel, Anodized
QFP-2$252.90
PDT Low Profile Vertical Power Strip, 20 Outlet, 20A
PDT-2020C-NS$406.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
44RU Solid Front/Rear Door for GRK
GFRD-44$446.40

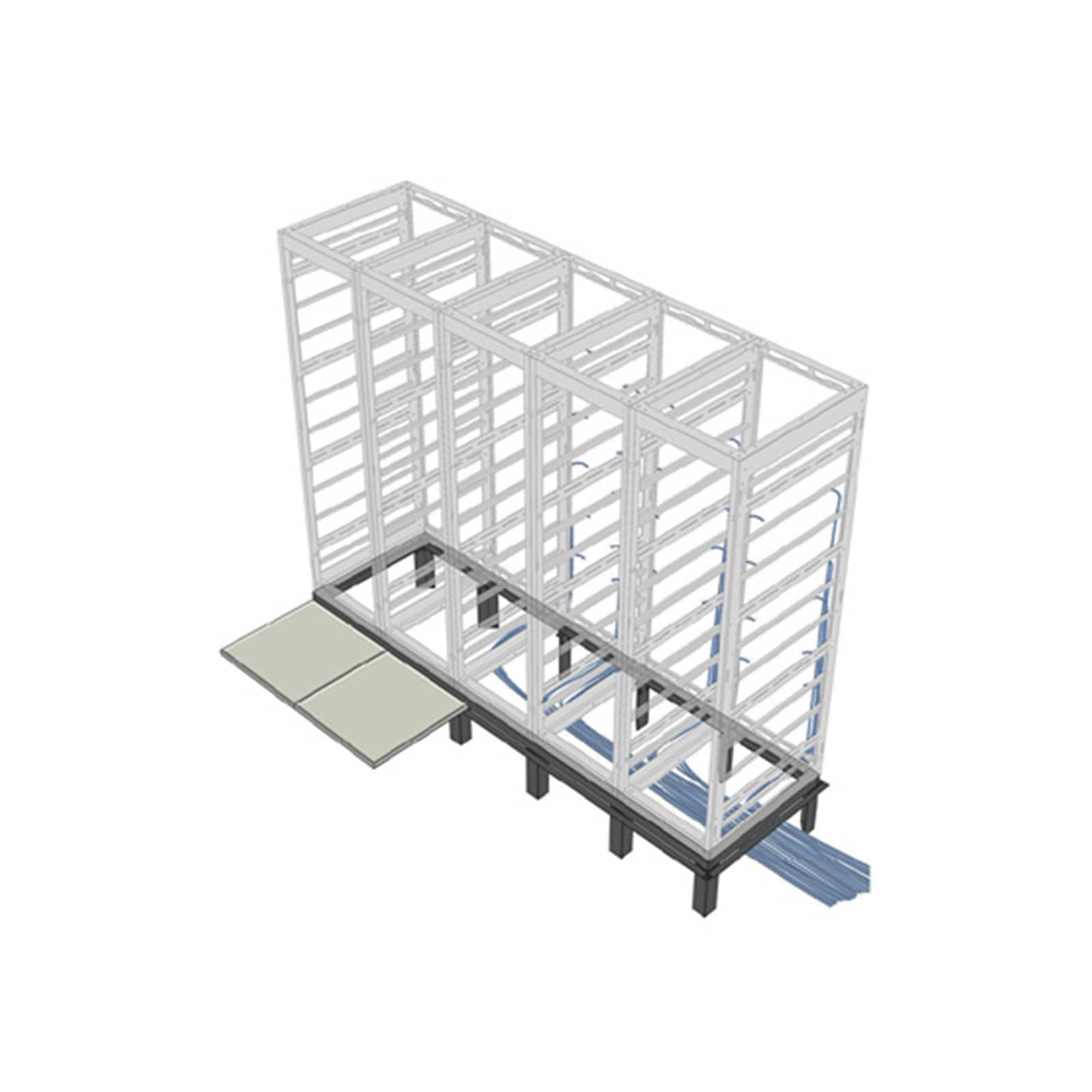

1 Bay Riser Base for 36 Inch Deep for GRK Racks
RIB-1-GRK-36B$601.20
44 RU Steel Lace Bar, 1 Inch - 6 Piece
LACE-G44-1P
Vented Top for 36 Inch Deep GRK Racks
GRK-LVT36$370.80

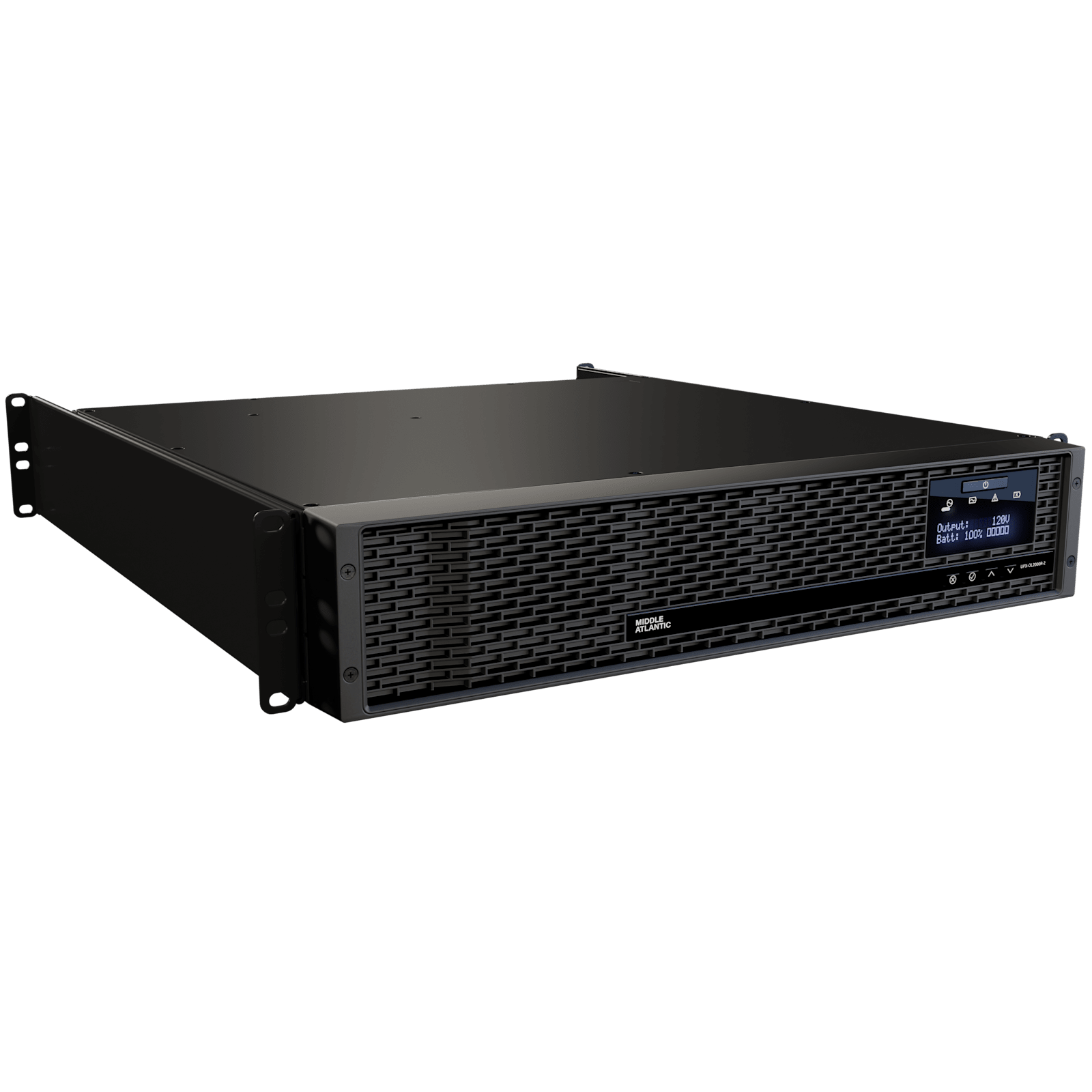

NEXSYS™ 2000VA, 20 Amp Online UPS Backup Power System, Bank Outlet Control
UPX-OL2000R-2$4,730.40
GRK Isolation Kit
GRK-ISO$90.90
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
Questions about this part
Can this rack be used in a multi-bay configuration?
Yes, the GRK Series is a welded gangable rack, allowing you to create narrow multi-bay setups optimized for high-density video cable bundles.
What accessories are available for the GRK-44-36HLRD?
Compatible accessories include the QFP-2 100 CFM Fan Panel, various PD Slim Vertical Power Strips, and the RIB-1-GRK-36B 1 Bay Riser Base.
How do I manage cabling within this rack?
The rack features horizontal cable management bars for tie-and-slide lacing and an open top and bottom to facilitate straight vertical cable runs.
Is the GRK-44-36HLRD TAA compliant?
Yes, this model is TAA compliant and features standard grounding and bonding studs at the top and bottom of the frame.
What is the weight limit for this 44 RU rack?
The GRK-44-36HLRD has a total weight capacity of 1,500 lbs (680.4 kg).
