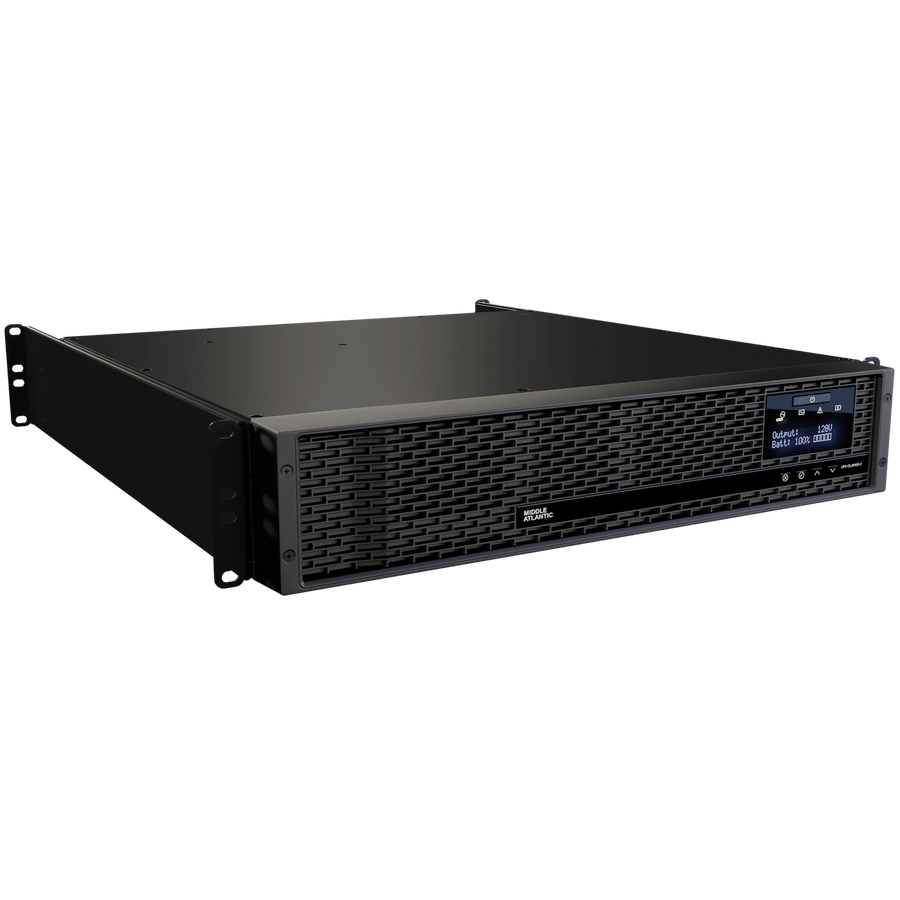

NEXSYS™ 2000VA, 20 Amp Online UPS Backup Power System, Bank Outlet Control
2000VA online UPS with 20 Amp input, 1800W capacity, and 8 outlets featuring two-bank outlet control
The UPX-OL2000R-2 is a NEXSYS Online UPS Backup Power System engineered specifically for AV environments. Utilizing online topology, this unit provides absolute zero transfer time, ensuring connected equipment remains continuously powered by the battery during utility fluctuations or outages. This specific 2000VA/1800W model features a 20 Amp NEMA 5-20P input plug and 8 NEMA 5-20R receptacles. These outlets are organized into two distinct banks of 4, allowing for bank-level outlet control. The unit is shipped with the battery already connected and rack ears pre-installed for 4-post mounting, which accommodates 3rd pair rackrail configurations. For expanded uptime, the UPX-OL2000R-2 is compatible with the NEXSYS™ Online UPS Expandable Run Time Unit (UPX-EXPANRUN-OL200) and can be networked using the NEXSYS™ UPS RackLink™ Network Card (UPX-RLNK-CARD). The included 6 ft (1.8 m) SignalSAFE™ IEC power cord provides an IEC input for improved cable management flexibility.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Output | 110-127 VAC |
| Amps | 20 Amp |
| Cord Length | 6 ft (1.8 m) |
| Depth | 16 in (40.6 cm) |
| Height | 3.5 in (8.9 cm) |
| Mounting Depth Max | 34 in (86.4 cm) |
| Mounting Depth Min | 22 in |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
All other specifications 18
| Product Weight | 45.2 lbs (20.5 kg) |
| Shipping Weight | 52.32 lbs (23.7 kg) |
| VA Rating | 2000VA |
| Watts | 1800 W |
| Width | 19 in (48.3 cm) |
| Color | Black |
| Mounting Points | 4 |
| Network Card Included | No |
| Network Enabled | Yes |
| Outlet Control Type | Bank |
| Outlet Count | 8 |
| Plug Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| TAA Compliant | No |
| Topology | Online |
| UPC | 656747397820 |
| Certifications | CSAcTUVusDepartment of EnergyEnergy Star 2.0FCCREACHRoHS |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
Questions about this part
Will the UPX-OL2000R-2 fit in my standard rack?
The unit has a 3.5 in (8.9 cm) height and a width of 19 in (48.3 cm). It requires a minimum mounting depth of 22 in (558.8 mm) and can accommodate a maximum mounting depth of 34 in (86.4 cm).
How can I extend the runtime for this UPS?
You can expand the runtime by connecting the NEXSYS™ Online UPS Expandable Run Time Unit (UPX-EXPANRUN-OL200) to this 2000VA unit.
What is required for network monitoring and remote management?
While the unit is network enabled, it does not include a network card in the box. You can add a NEXSYS™ UPS RackLink™ Network Card (UPX-RLNK-CARD) to enable these capabilities.
How are the outlets organized on the back?
The 8 NEMA 5-20R outlets are configured with Bank Control, consisting of two banks with 4 outlets each.
Can the battery be replaced without turning off the equipment?
Yes, the UPX-OL2000R-2 features a hot-swappable battery accessible through a front panel, allowing for service without disrupting your connected system.
