44 RU ERK Series Rack, 25 Inches Deep, Configured for AV
44 RU floor-standing AV rack, 25" deep, pre-configured for professional AV with seismic certification

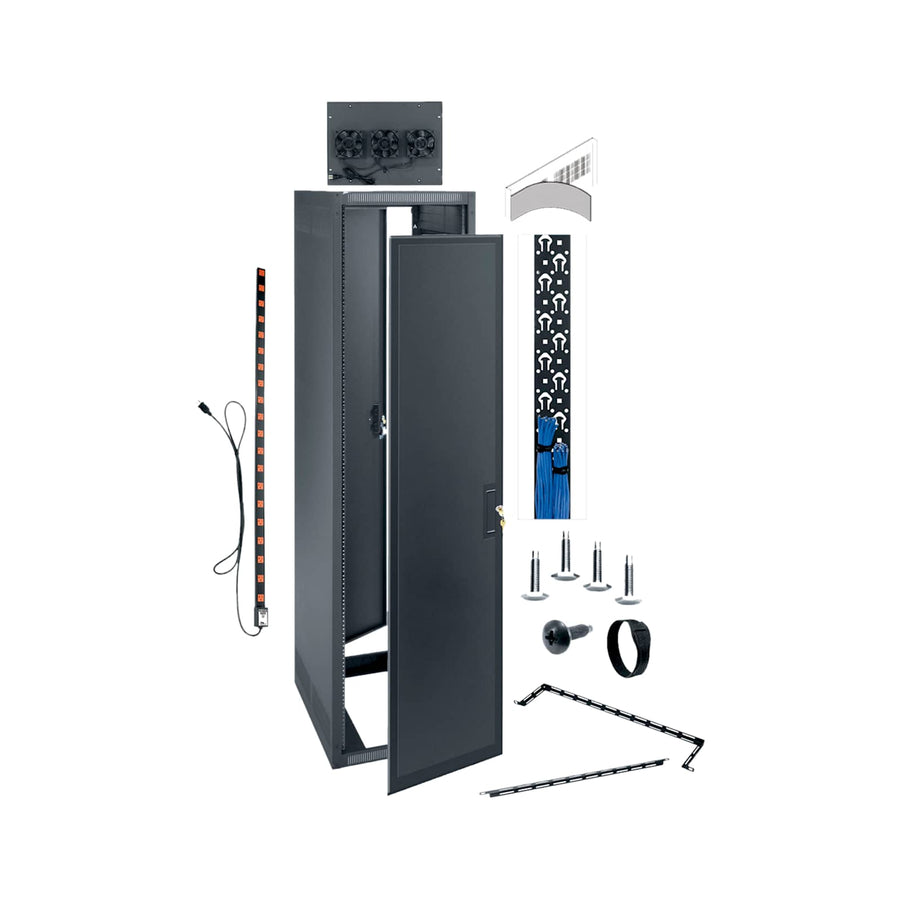

The ERK-4425-AV is a 44 RU floor-standing rack designed specifically for professional AV installations. This pre-configured unit features a robust, fully welded steel construction finished in black wrinkle powder coat. For thermal management, the rack includes an integrated fan top, vent blockers, and a rear door vent. To aid in cable organization, it comes equipped with one LACE-OP lacer strip, four straight lacer bars, two offset lacer bars, and 12 Velcro straps. This model includes one PDT-2020C-NS 20A, 20-outlet corded power strip and 100 10-32 threaded rack screws for immediate installation. The enclosure features solid front and rear doors, with the rear door designed to be configurable. For enhanced security and environmental control, multiple ERK Series enclosures can be ganged together to create partitioned multi-bay systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| CFM | 285 |
| Depth | 25 in (63.5 cm) |
| Height | 81.13 in (206.1 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 44 RU |
| Shipping Weight | 190 lbs (86.2 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 23.47 in (59.6 cm) |
All other specifications 15
| Usable Height | 77.13 in (195.9 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Pre-Configured for Pro AV |
| Rack Rail Type | 10-32 |
| Rack Type | Pre-Configured |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Ships Flat | No |
| UPC | 656747095160 |
| Certifications | ASCE |
| Seismic Load Capacity | 591 lbs (268.1 kg) |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
Caster Base for 25 Inch Deep ERK Series - 1,300 pounds
CBS-ERK-25$324.00
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
FTA Series 4 Inch DC Fan
FT-FAN$90.00
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
Lace Bar 2 Inch Offset, L-Shaped - 10 Pieces
LBP-2A$105.30
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
Questions about this part
Can the ERK-4425-AV be used in seismic applications?
Yes, this rack is seismic rated with a seismic load capacity of 591 lbs (268.1 kg) and ASCE certification. For maximum protection, it should be installed with ERK-Z4 brackets.
What is included in this rack for installation?
This unit is pre-configured with a PDT-2020C-NS 20A, 20-outlet corded power strip, one LACE-OP lacer strip, four straight lacer bars, two offset lacer bars, 12 Velcro straps, and 100 10-32 threaded rack screws.
How much weight can this rack support?
The ERK-4425-AV has a UL load capacity of 2500 lbs (1,134 kg), providing substantial support for heavy AV components.
Does this rack support multiple-bay installations?
Yes, the ERK Series can be ganged together to create multi-bay installations, which helps with security and thermal management control.
What are the dimensions for the ERK-4425-AV?
The rack stands 81.13 in (206.1 cm) tall with a 22 in (55.9 cm) width and a 25 in (63.5 cm) depth.
