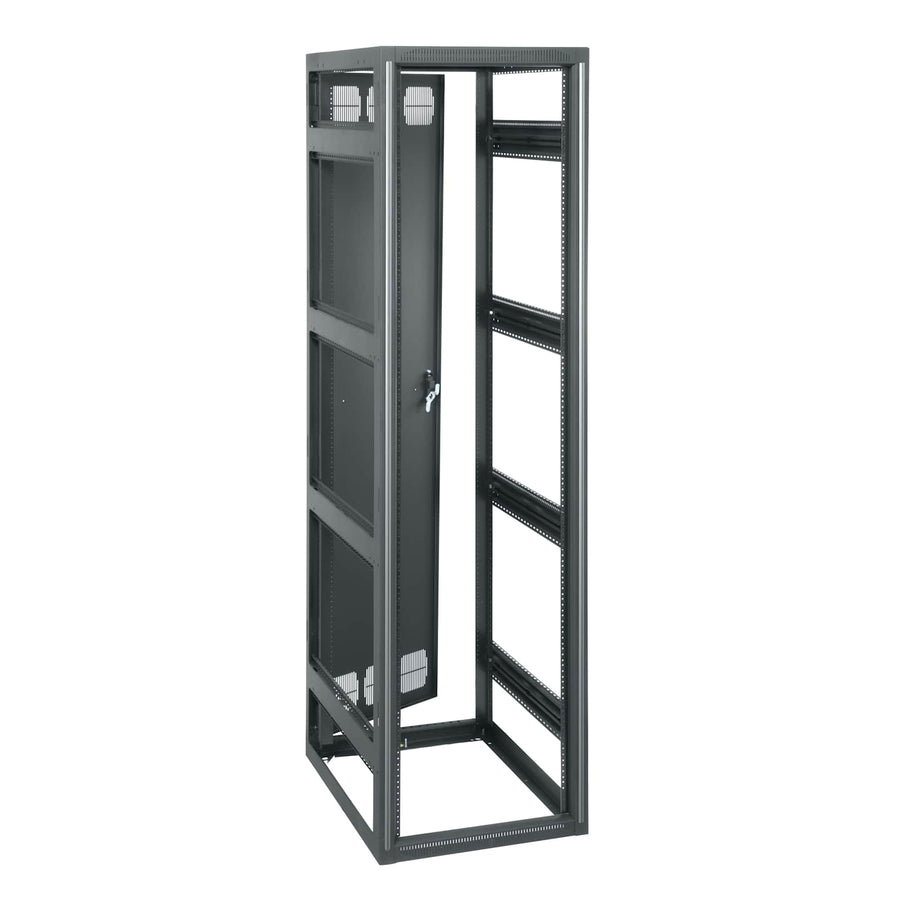

41 RU BGR Series Rack, 38 Inches Deep
41 RU floor-standing AV rack, 38 in depth, seismic rated, with Forward Rackrail and TAA compliance
The BGR-4138 is a 41 RU floor-standing rack from the Middle Atlantic BGR Series, designed for high-performance AV installations requiring significant depth and structural integrity. This frame-only configuration features a 38 in (96.5 cm) total depth and a 23 in (58.4 cm) width, providing a wide-open top and bottom for diverse cabling and cooling configurations. It is built from steel with a black wrinkle powder coat finish and includes a standard vented rack rear door. The design utilizes Forward Rackrails that are adjustable for both front and rear positioning, featuring numbered spaces to streamline installation. This seismic-rated enclosure has a seismic load capacity of 1175 lbs (533 kg) and an UL load capacity of 3000 lbs (1,360.8 kg). The unit is TAA compliant and HCAI (formerly OSHPD) certified, making it suitable for specialized and regulated environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 38 in (96.5 cm) |
| Height | 75.88 in (192.7 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 41 RU |
| Shipping Weight | 170 lbs (77.1 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 35.4 in (89.9 cm) |
| Usable Height | 71.88 in (182.6 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140105 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
552 CFM Fan Top, for BGR Series
BGR-552FT$656.10
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
1 RU BlowerPanel, 100 CFM, 32dB, Anodized & 220-240VAC
IQBP-2A$620.10
Vented Top BGR Series
BGR-LVT9$87.30
276 CFM Fan Top, with Controller 220 - 240VAC for BGR Series
IBGR-276FT-FC$801.00
41 RU 64% Vented Front Door for BGR Racks
BVFD-41$603.00

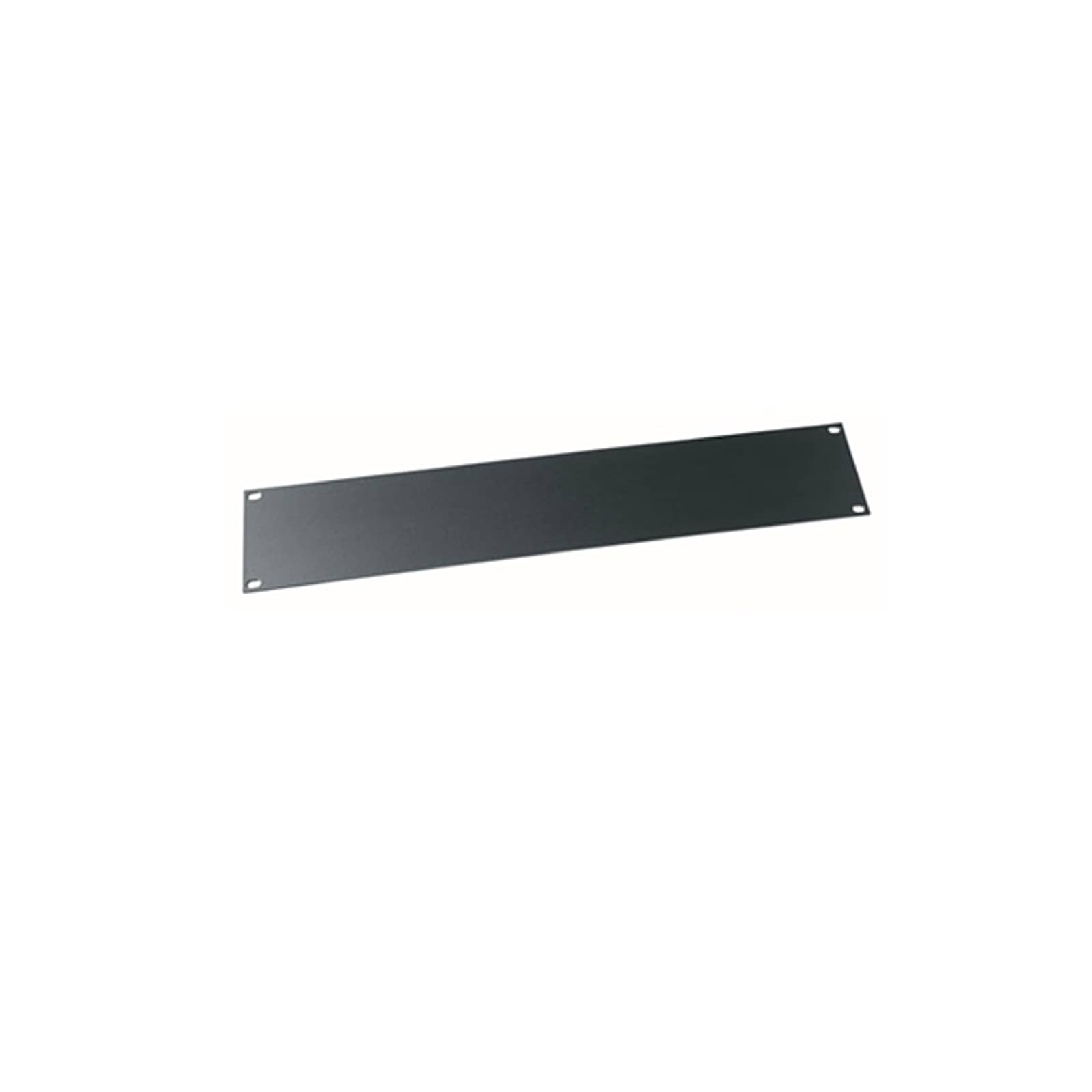

9 RU Top Panel BGR Series
BGR-STP9$73.80
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Questions about this part
Will the BGR-4138 fit my heavy equipment?
Yes, this rack has a UL load capacity of 3000 lbs (1,360.8 kg) and a seismic load capacity of 1175 lbs (533 kg).
Can I add fans or specialized doors to the BGR-4138?
Yes, the included vented rear door accepts optional fans like the BGR-552FT or the IBGR-2A BlowerPanel.
Is this rack suitable for TAA compliant projects?
Yes, the BGR-4138 is TAA compliant and is manufactured in the USA.
What is the usable internal space of this rack?
The unit provides a usable height of 71.88 in (182.6 cm) and a usable depth of 35.4 in (89.9 cm).
What tools are needed for installation?
The installation items listed in the documentation identify the specific tools you will need to complete the assembly.
