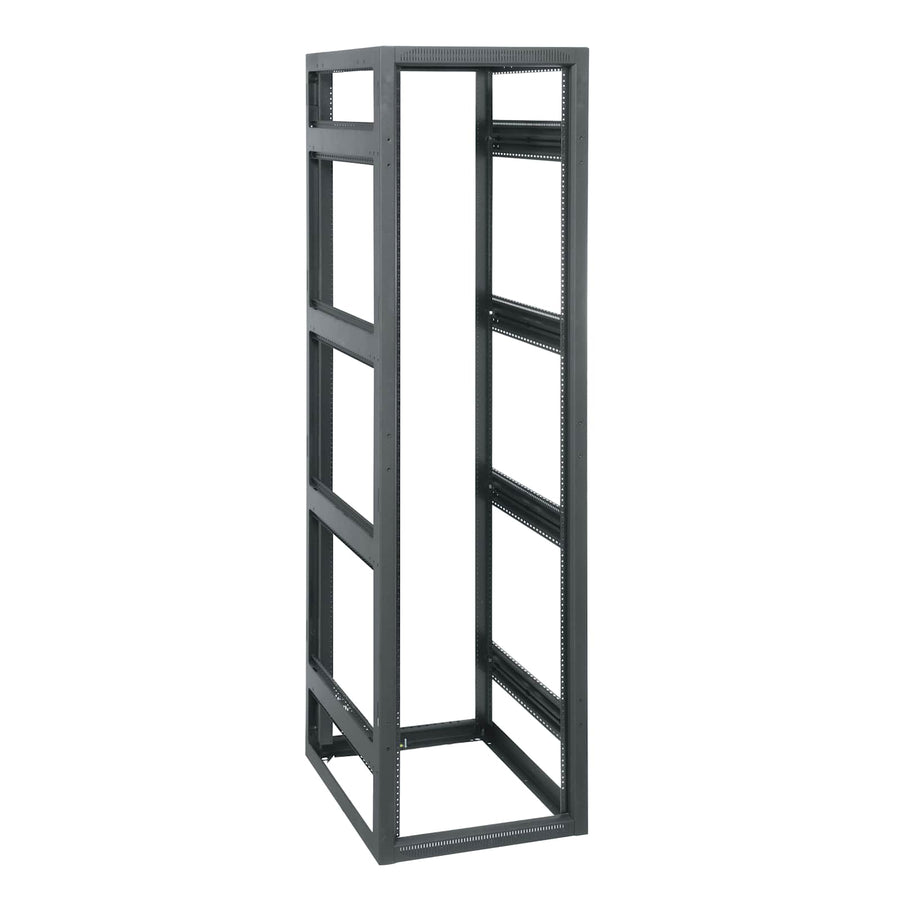

41 RU BGR Series Rack, 27 Inches Deep without Rear Door
41 RU floor-standing AV rack, 27 in deep, with Forward Rackrail, Lever Lock compatibility, and 3000 lbs UL load capacity
The BGR-4127LRD is a 41 RU floor-standing rack from the Middle Atlantic BGR AV Rack series, designed with a 27 in (68.6 cm) depth and a 23 in (58.4 cm) width. This frame-only configuration is engineered for high-performance AV environments, featuring a Forward Rackrail type that allows for both Forward and Lever Lock™ compatibility. This design enables faster tool-free installations and maximizes mounting capacity both on and off the rail. The 27 in depth provides a usable depth of 24.4 in (62 cm) and a usable height of 71.88 in (182.6 cm) within the 75.88 in (192.7 cm) total height. With a 3000 lbs (1,360.8 kg) UL load capacity and a seismic load capacity of 1175 lbs (533 kg), this steel rack is built for heavy-duty deployments. It is seismic rated and holds TAA compliance, HCAI (formerly OSHPD) OPM-0444-13, ASCE, and UL certifications. The unit includes 25mm x 150mm swing handles and a black wrinkle powder coat finish. This gangable series supports the BGR Series 3 Part Specification and is manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27 in (68.6 cm) |
| Height | 75.88 in (192.7 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 41 RU |
| Shipping Weight | 127 lbs (57.6 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 24.4 in (62 cm) |
| Usable Height | 71.88 in (182.6 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140235 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
552 CFM Fan Top, with Controller for BGR Series
BGR-552FT-FC$856.80
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 20 Outlet, 20A Hardwired J-Box at Top
PDT-2X1020T$505.80
Vented Top BGR Series
BGR-LVT9$87.30
41 RU 64% Vented Front Door for BGR Racks
BVFD-41$603.00
2 RU Utility Rackshelf, 14.55 Inches Deep
U2$95.40
40 RU Copper Bus Bars, 2 Inch Wide
BB-40$360.00
41 RU Side Panels for 27 Inch Deep BGR Racks
BSPN-41-27$747.00
41 RU Vented Front Door, Curved
VFD-41A$760.50
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
Will the BGR-4127LRD fit my specific display or equipment?
The BGR-4127LRD is a 41 RU frame-only rack with a 19 in (48.3 cm) panel width. It is designed to accommodate 19 in standard equipment and is compatible with various Lever Lock™ and Forward series accessories.
What else do I need to buy to complete this rack installation?
This SKU is a frame-only configuration and does not include doors or side panels. To complete the assembly, you may need items such as BSPN-41-27 side panels, BVFD-41 front doors, or a CBS-BGR caster base.
What are the mounting and clearance requirements for this rack?
The rack has a total width of 23 in (58.4 cm) and a total height of 75.88 in (192.7 cm). It features a usable depth of 24.4 in (62 cm), which is critical for planning front-to-back cable management clearance.
Is this rack suitable for seismic-prone locations?
Yes, this rack is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and carries ASCE and HCAI (formerly OSHPD) certifications.
Can I expand my rack system later?
The BGR series is gangable, allowing you to connect multiple units together. Additionally, this rack is forward compatible, allowing for future-proofing as system requirements evolve.
