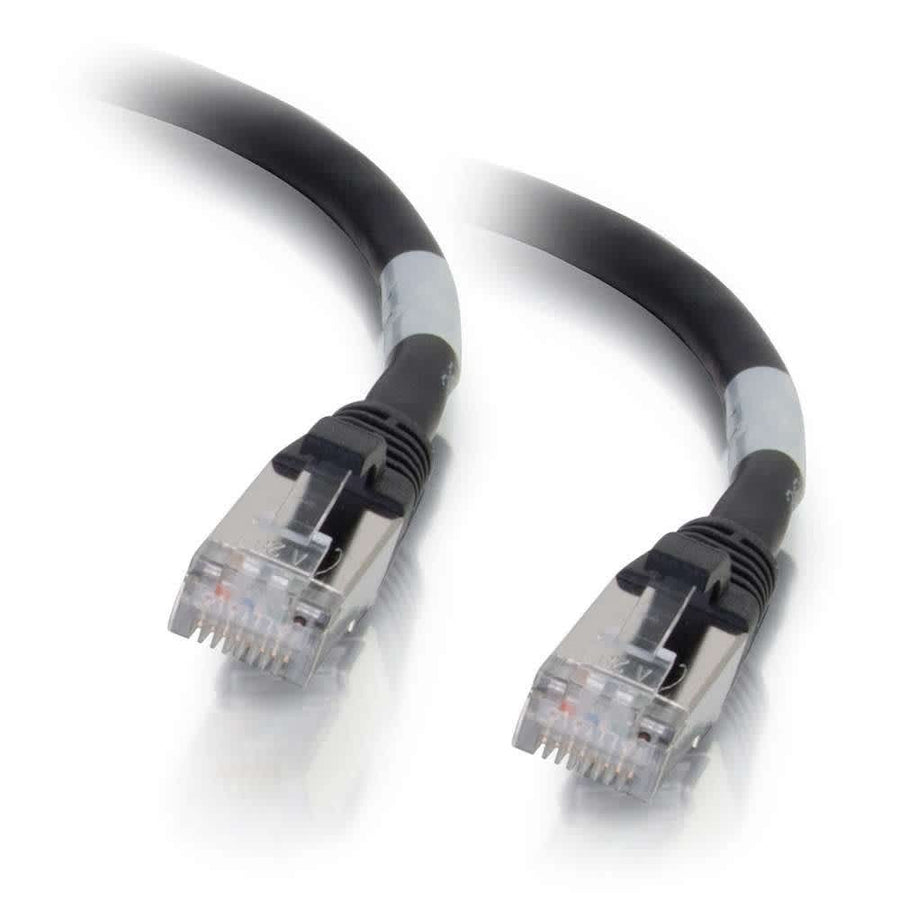

3ft (0.9m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
3ft shielded Cat6a patch cable with snagless boots, designed for 10GBase-T high-speed network applications
The C2G CG00708 is a 3ft (0.9m) Cat6a Snagless Shielded STP Ethernet network patch cable designed to support high-speed 10GBase-T equipment. This cable is suitable for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It provides protection for high-speed 10 Gigabit network connections by shielding against noise and electromagnetic interference. Constructed with 26AWG bare copper stranded conductors and FMPE (Foam Polyethylene) insulation, this cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. The design minimizes Near-End Crosstalk (NEXT) levels by bonding individual pairs to maintain twist-spacing up to the termination point. Each cable features snagless, booted RJ-45 male connectors with PVC hoods and is identified with an individual length label for easy identification during installation. This black cable is rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007081 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Blank Keystone/Multimedia Patch Panel
CG03859$43.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the maximum performance rating for the CG00708?
The CG00708 is a Cat6a performance cable, making it suitable for 10GBase-T high-speed network applications.
Is the CG00708 compatible with patch panels and switches?
Yes, this cable is designed for use with switches, routers, hubs, modems, and patch panels like the CG03859 24-Port Blank Keystone Panel.
What are the installation requirements for this patch cable?
This is a 3ft (0.9m) pre-terminated patch cable; it is an end-use cable and does not require additional termination tools.
What is the temperature rating for this cable?
The cable is rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C).
Does the CG00708 include a snagless design?
Yes, the RJ-45 male connectors feature snagless boots to protect the release tabs and prevent accidental unplugging.
