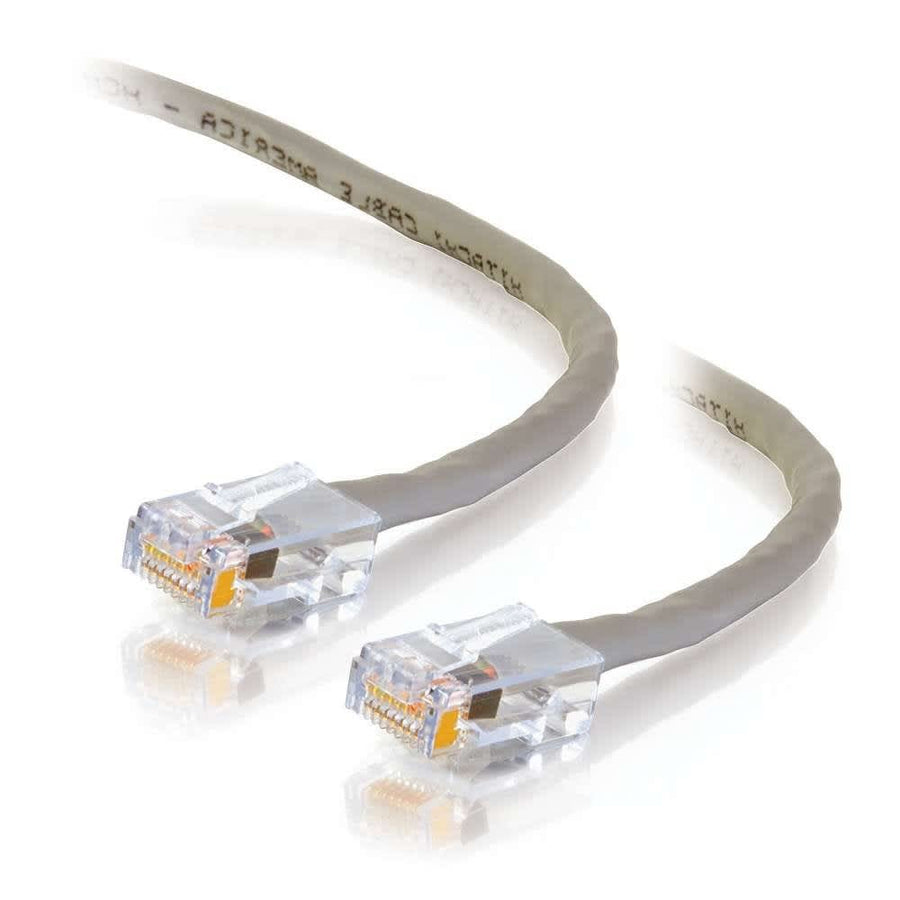

3ft (0.9m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Gray
3ft Cat6 UTP plenum patch cable, CMP rated, gray stranded copper with RJ-45 connectors
The C2G CG15265 is a 3 ft (0.9 m) Cat6 UTP unshielded Ethernet patch cable designed to meet strict building codes for installation in plenum spaces. This gray cable is ideal for routing through air spaces above dropped ceilings or under raised floors in environments such as schools, hospitals, and commercial buildings. It is constructed with 23AWG stranded copper conductors and features 50 micron gold plated RJ-45 male connectors. Tested to 550MHz, this cable meets TIA/EIA-568-C.2 standards and is engineered to reduce impedance, structural return loss (SRL), and Near-End Crosstalk (NEXT). This CMP-rated (FT6) cable is TAA compliant and suitable for high-bandwidth voice, data, and video distribution. For larger scale deployments, this series is also available in Blue and Black finishes and in lengths up to 100ft.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.1 lbs (0 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152651 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
8 Port Cat6 Network Interface Module
AC1068$64.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Is the C2G CG15265 suitable for use in ceiling plenum spaces?
Yes, this cable features a plenum-rated jacket with CMP and FT6 ratings, making it suitable for routing through air spaces in commercial buildings like hospitals or schools.
What is the maximum bandwidth for this Cat6 cable?
The CG15265 is tested to 550MHz and meets TIA/EIA-568-C.2 standards for Cat6 performance applications.
What are the connector types on this 3ft cable?
This cable is equipped with two non-booted RJ-45 male connectors featuring 50 micron gold plating.
Does this cable meet TAA compliance requirements?
Yes, the CG15265 is TAA compliant and meets NDAA 889 standards for government and regulated sector installations.
What other colors and lengths are available in this series?
This series is available in Black and Blue colors, with lengths ranging up to 100ft.
