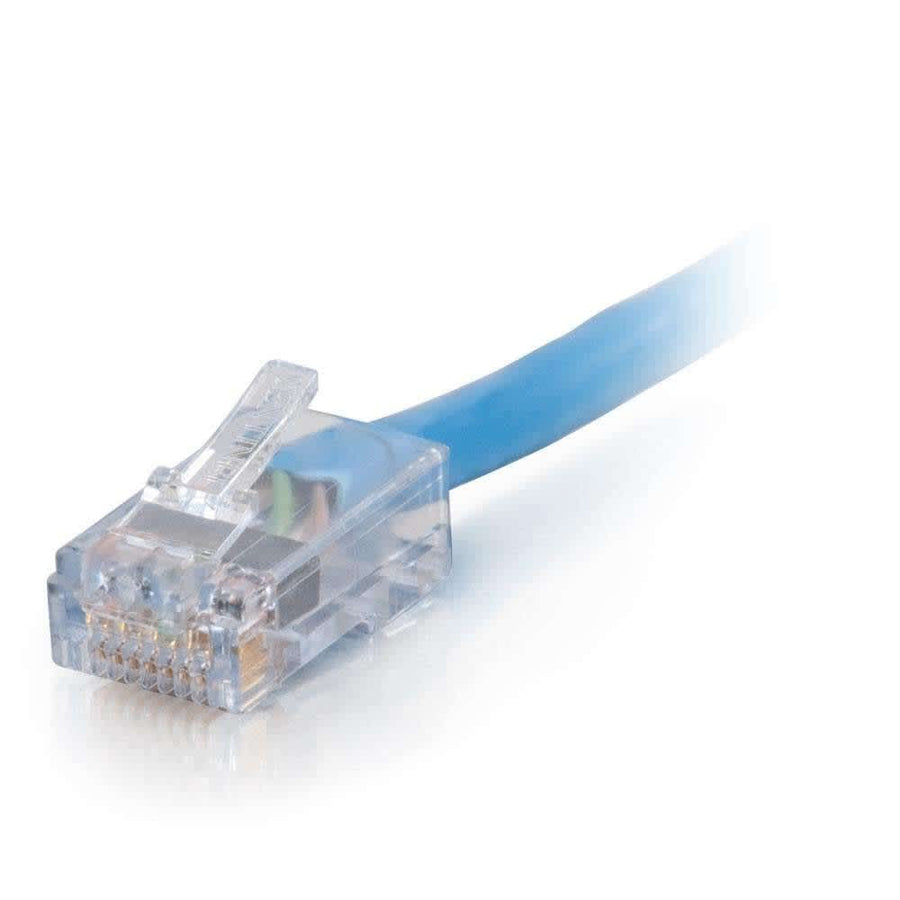

3ft (0.9m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Blue
3ft (0.9 m) Blue Cat6 UTP plenum-rated patch cable, CMP-rated for air-handling spaces and tested to 550MHz
The C2G CG15278 is a 3 ft (0.9 m) Cat6 patch cable designed for high-bandwidth data, voice, and video distribution. This blue unshielded (UTP) cable is CMP-rated and FT6 rated, making it suitable for installation in plenum spaces such as raised floors or dropped ceilings in commercial environments like hospitals and schools. The cable features 23AWG stranded copper conductors and is constructed to meet TIA/EIA-568-C.2 standards. It is designed to minimize Near-End Crosstalk (NEXT) levels while reducing impedance and structural return loss (SRL). For connectivity, it utilizes non-booted RJ-45 male connectors with 50 micron gold plating. This TAA compliant cable is tested to 550MHz, ensuring reliable performance for bandwidth-intensive applications. This SKU is part of a series available in lengths up to 100ft and multiple colors including Black and Gray.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.1 lbs (0 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152781 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
Where can I install the CG15278 cable?
This cable is CMP-rated and FT6 rated, making it suitable for plenum spaces such as the area above dropped ceilings or under raised floors.
Is the C2G CG15278 TAA compliant?
Yes, this 3 ft (0.9 m) Cat6 cable is TAA compliant and meets NDAA 889 requirements.
What is the maximum frequency for this Cat6 cable?
The CG15278 is tested to 550MHz and meets TIA/EIA-568-C.2 standards for high-bandwidth applications.
Does this cable have shielding?
This is an Unshielded Twisted Pair (UTP) cable utilizing 23AWG stranded copper conductors.
What other colors are available in this Cat6 series?
This series is also available in Black and Gray to assist with network color-coding.
